66 20 ... Replacing Rear Ultrasonic Sensor

66 20 ... Replacing Rear Ultrasonic Sensor







NOTE:
The ultrasonic sensor can be replaced without removing the bumper trim.

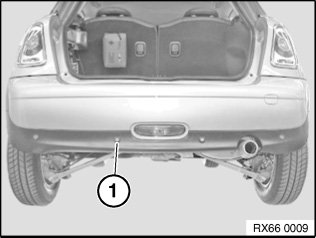

To remove ultrasonic sensor (1), it is necessary to partially detach the rear underbody panelling .







Disconnect associated plug connection.
Expand catches (1) and remove ultrasonic sensor (2) in direction of arrow.
