41 63 000 Removing and Installing Flap For Fuel Filler Neck

41 63 000 Removing and installing flap for fuel filler neck







MINI ONE and MINI COOPER models:
Open flap for fuel filler neck.

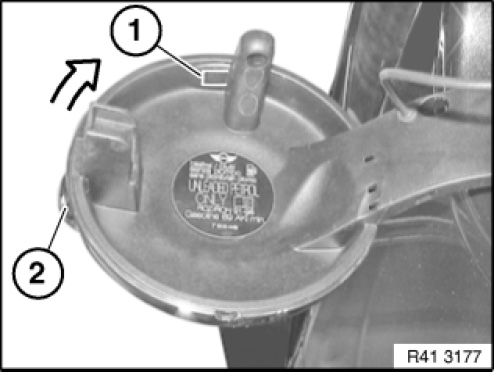

Insert suitable screwdriver in recess (1) up to stop.
Pull of flap for fuel filler neck in direction of arrow.







MINI COOPER S:
Open flap for fuel filler neck.
Lever out lock (1) and turn flap for fuel filler neck (2) in direction of arrow and remove.
