51 45 ... Removing and Installing/Replacing Side Center Console Panel

51 45 ... Removing and installing/replacing side centre console panel

Special tools required:

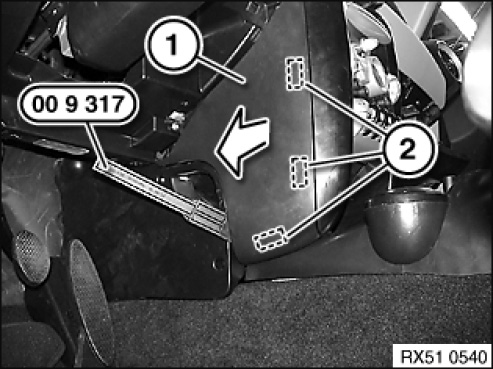

Unclip side centre console panel (1) with special tool 00 9 317 from retaining clips (2).
