51 45 380 Removing and Installing (Replacing) Right Decorative Strip on Instrument Panel

51 45 380 Removing And Installing (Replacing) Right Decorative Strip On Instrument Panel

Special tools required:

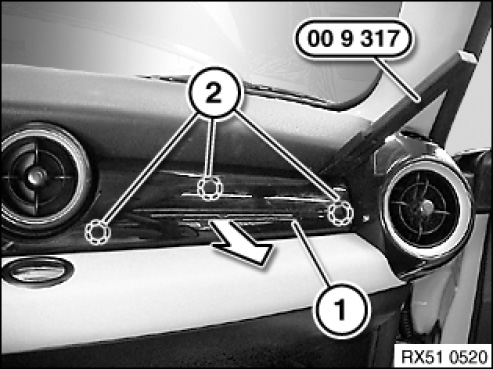

Carefully unclip decorative strip (1) with special tool 00 9 317 at retaining points (2) and remove.







Installation:
Make sure pins (1) are correctly seated on decorative strip.
If necessary, replace faulty retainers (2).

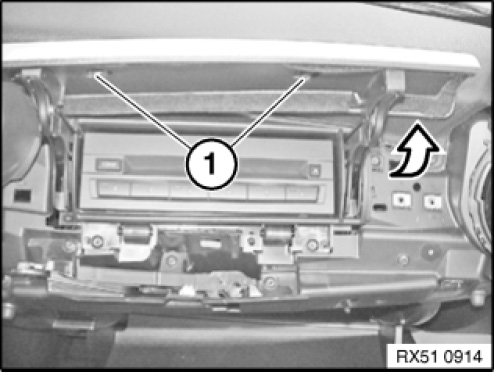

Version with CD changer:
Open CD changer trim.
Release screws (1).

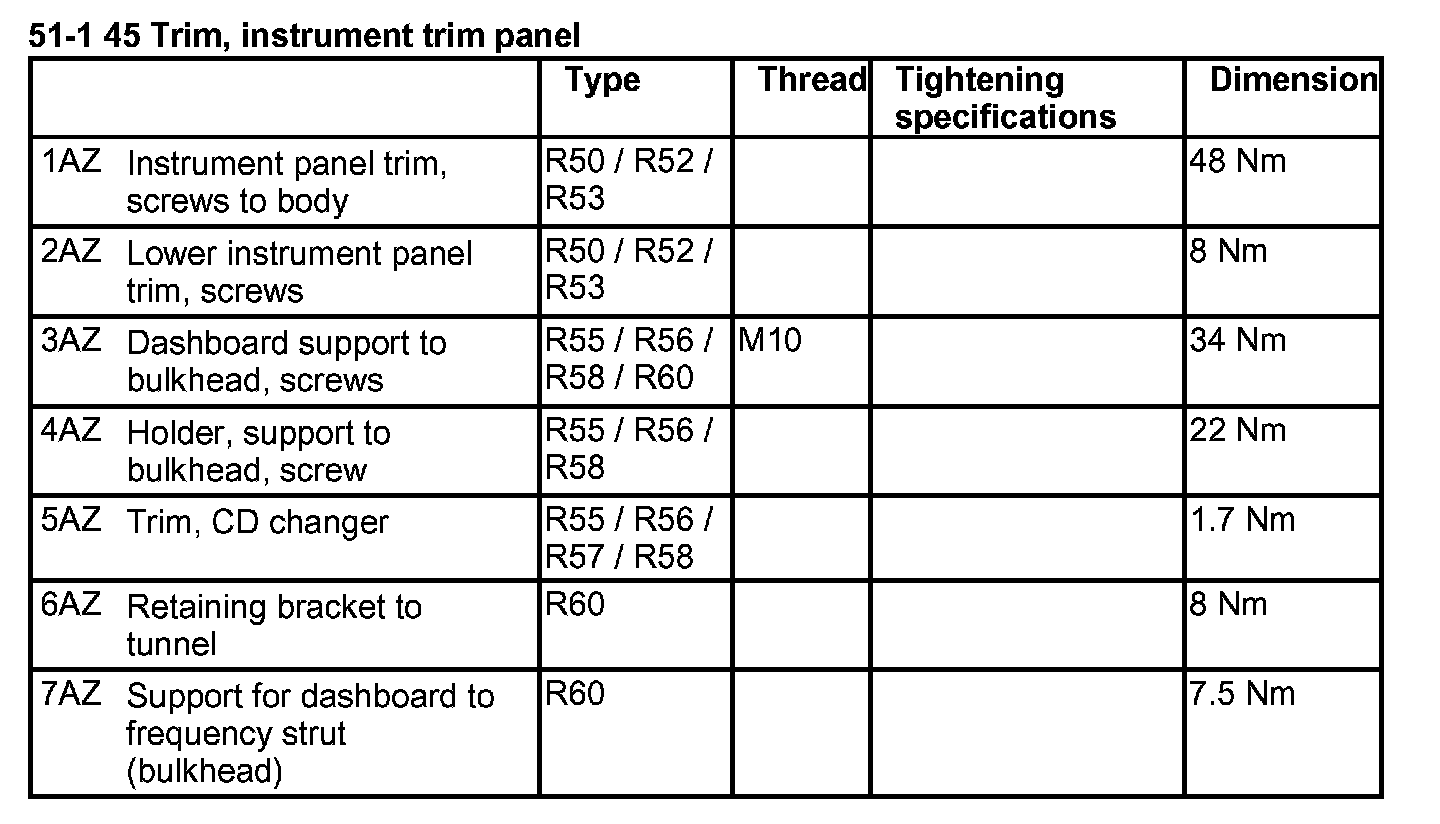

Tightening torque 51 45 05AZ.
