51 45 430 Removing and Installing/Replacing Side Air Vent Cover, Left (or Right)

51 45 430 Removing and installing/replacing side air vent cover, left (or right)







Necessary preliminary tasks:
- Remove decorative strip on dashboard
- Remove trim panel for roof pillar at front
- Remove lid of air vent cover

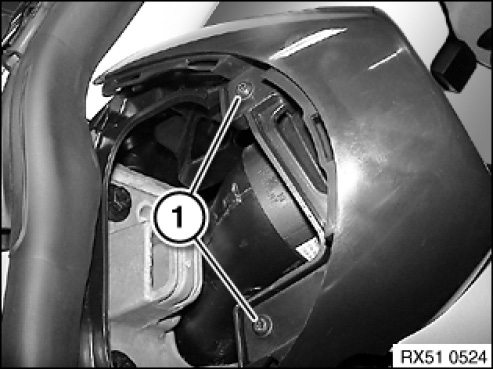

Release screws (1).







Release screws (1).

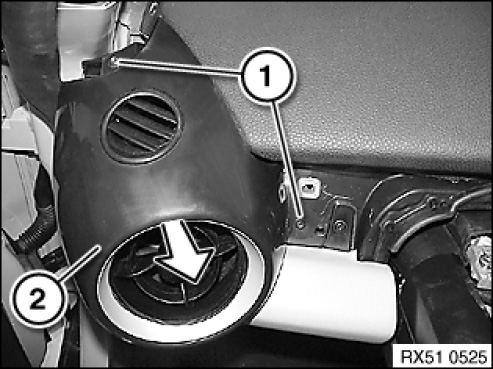

Remove air vent cover (2) in direction of arrow.
