Fault Pattern INSTR. CL. 1208

Fault Patterns: Instrument Cluster

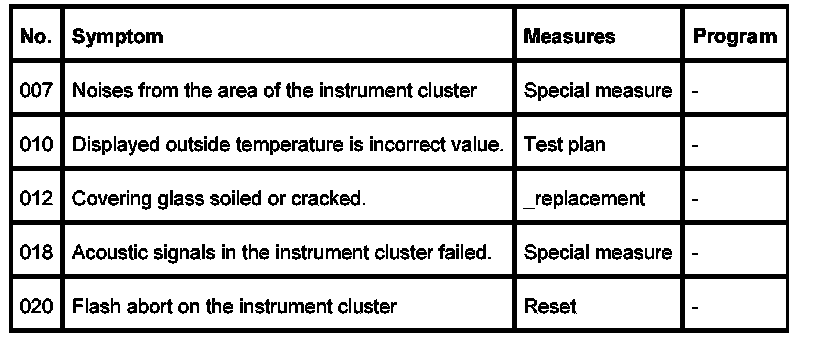

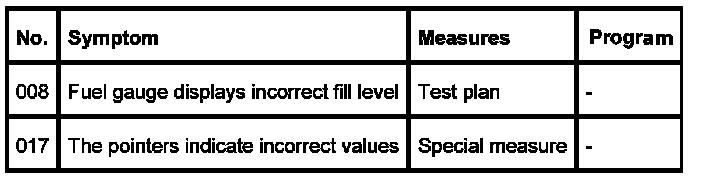

The instrument cluster is a complex control module with a large number of possible fault patterns. The following list contains known symptoms of the functional areas in general, display / indicator lamps and pointer instruments.

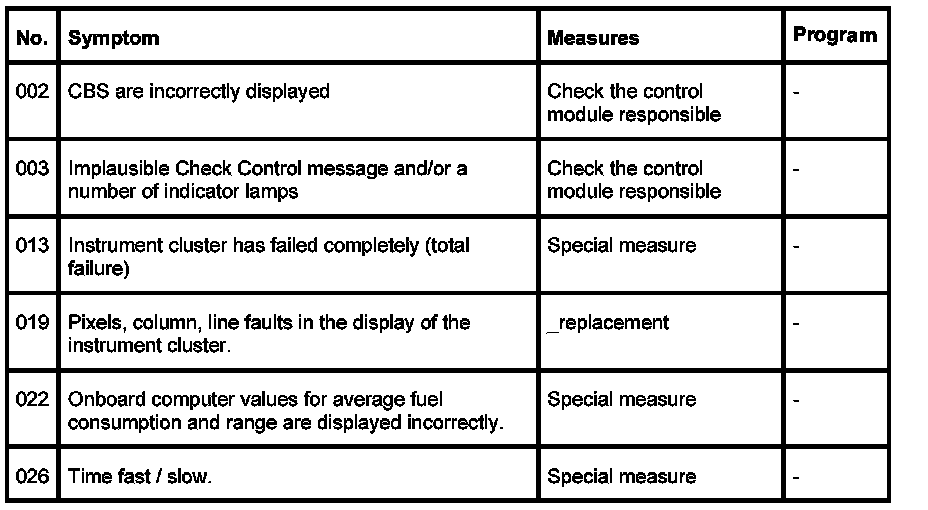

General
