Roller Sunblind Jammed

The Roller Sunblind Is Canted

Repair instruction for roller sunblind canted on closing
The roller sunblind can only be shifted with difficulty or is canted.

Repair instruction
Check that the roller sunblind is correctly seated and clip it back into the guide rail. See Fig. 1 and Fig. 2.

NOTE: The roller sunblind must always be shifted to centre handle. Never move the roller sunblind towards the outside.

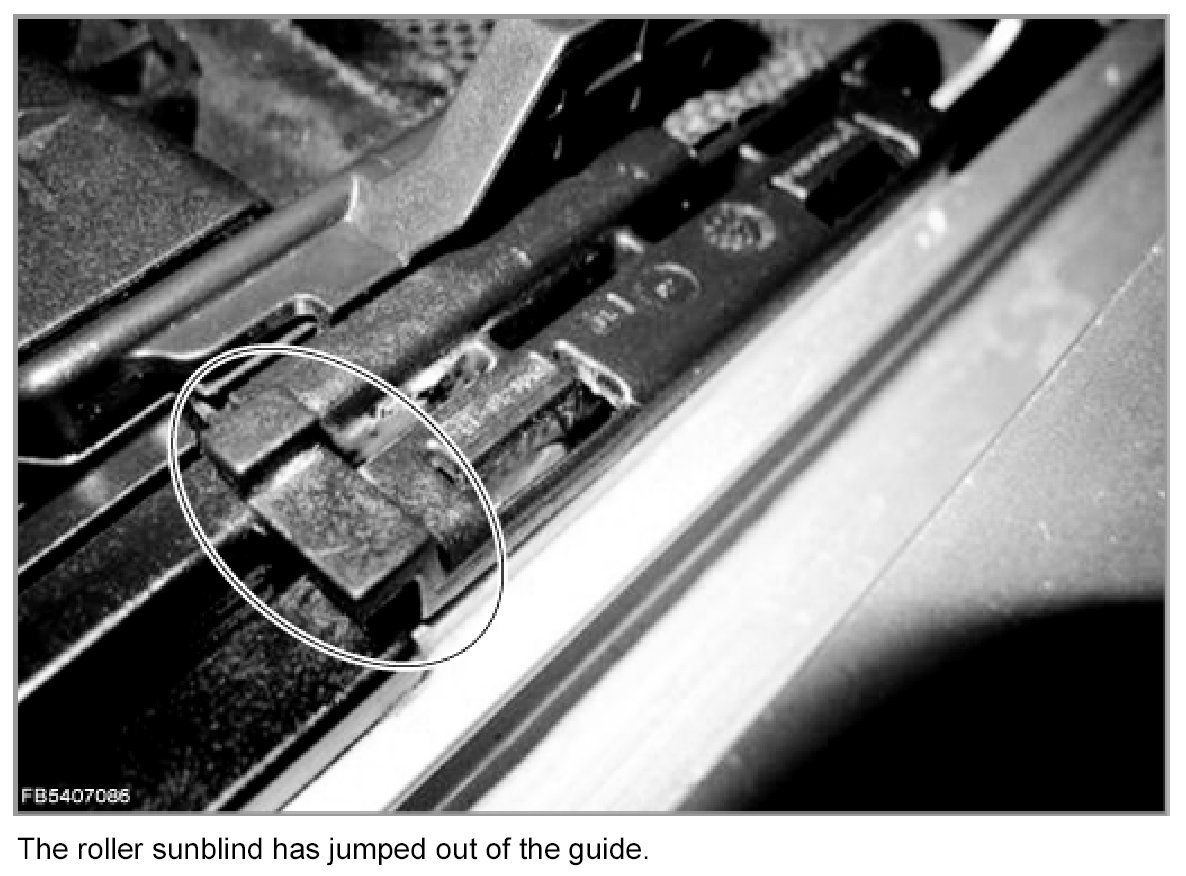

Fig. 1







The roller sunblind has jumped out of the guide.

Fig. 2







The roller sunblind is seated correctly in the guide rail.
