Check Distance, Wind Deflector

Check The Wind Deflector Gap

Repair instruction for gap between the wind deflector and the glass sunroof
The wind deflector rattles from below against the glass sunroof.The gap between the wind deflector and glass sunroof is to small.

Repair instruction
Open the panorama sunroof slightly and check the gap between the wind deflector and glass sunroof. See Fig.

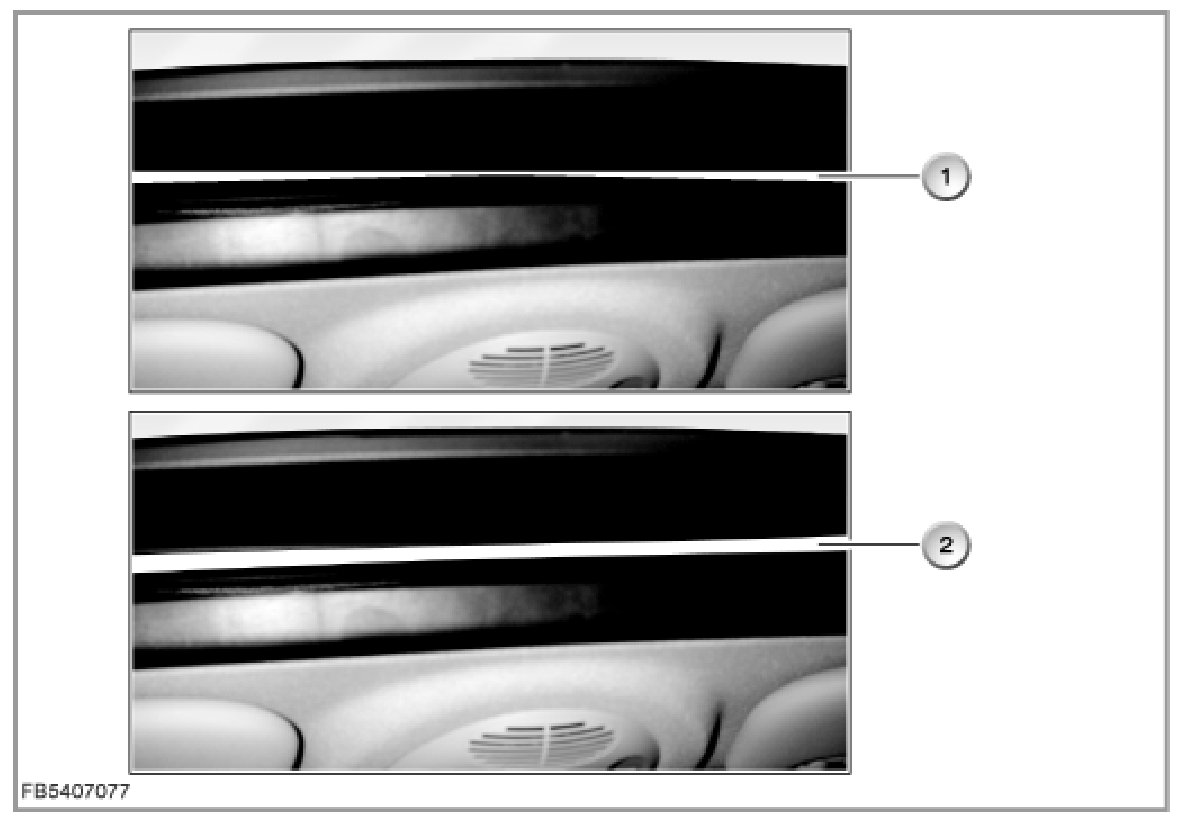

Gap between wind deflector and glass sunroof







The gap (1) is uneven and too small.

The gap (2) is OK; the gap must be of equal size across the entire width.
