52 13 010 Removing and Installing/Replacing Both Seat Rails on Left or Right Front Seat

52 13 010 Removing And Installing/Replacing Both Seat Rails On Left Or Right Front Seat

Necessary preliminary tasks:
- Remove front seat
- Seat height to stop
- Remove outer cover

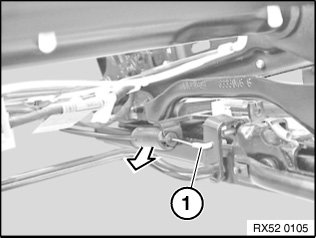

Disconnect Bowden cable (1).
Unclip Bowden cable sleeve from holder.

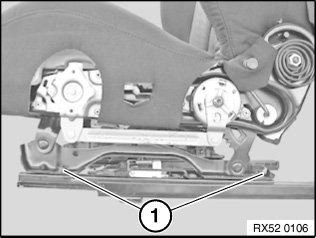

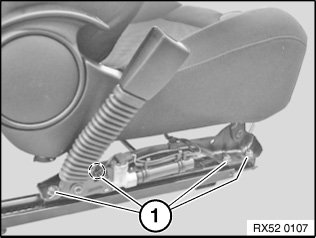

Release screws (1).

Lever out locking clip.

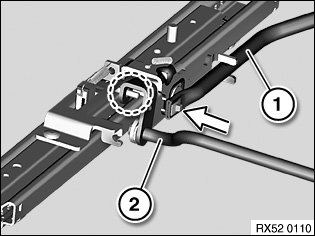

Remove seat rail from adjusting bracket (1) and unlocking linkage (2).

Installation:
Unlocking linkage must rest on locking pawl.

Lever out locking clip.

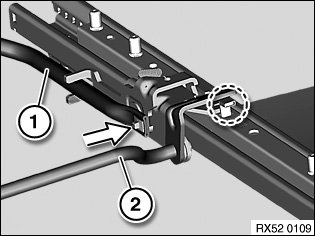

Remove seat rail from adjusting bracket (1) and unlocking linkage (2).

Installation:
Unlocking linkage must be attached to pin.
