52 26 303 Removing And Installing/replacing Actuator For Rear Seat Backrest

52 26 303 Removing And Installing/replacing Actuator For Rear Seat Backrest

Necessary preliminary tasks:
- Remove backrest cover

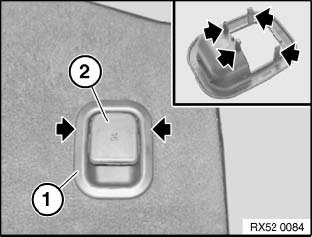

Unclip trim (1) and feed out from release lever (2).

Installation:
Retaining lugs must not be damaged.
If necessary, replace faulty trim (1).

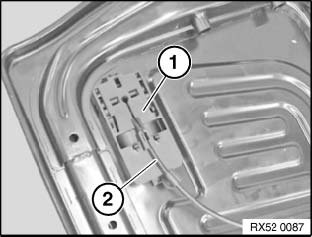

Feed Bowden cable (2) out of grip recess plate (1).

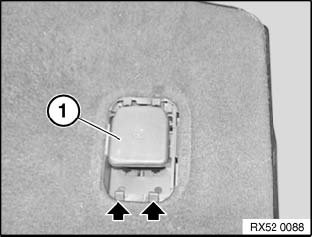

Press in detent lugs and remove grip recess plate (1).
