Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mini
>>
2008
>>
Cooper (R56) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

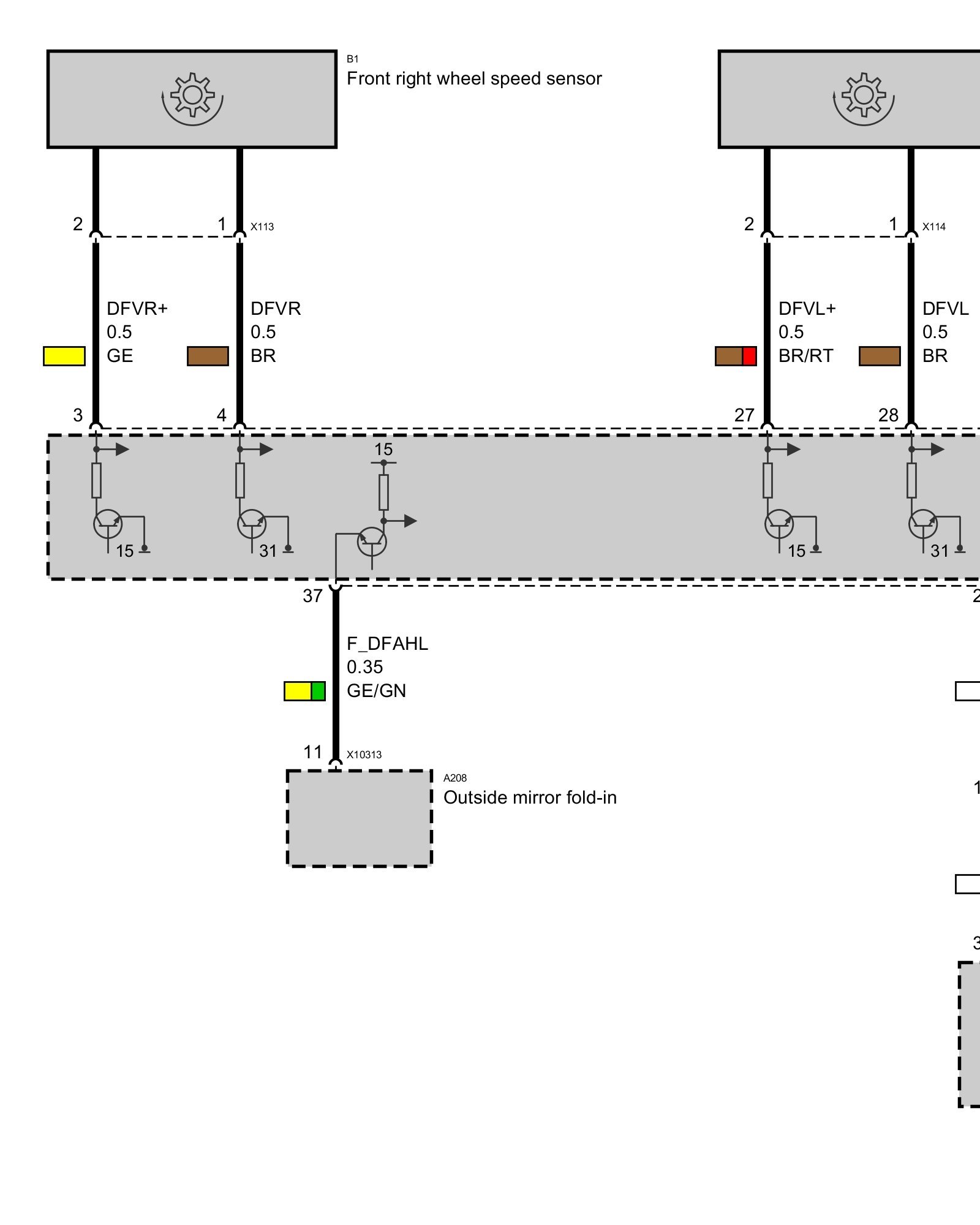

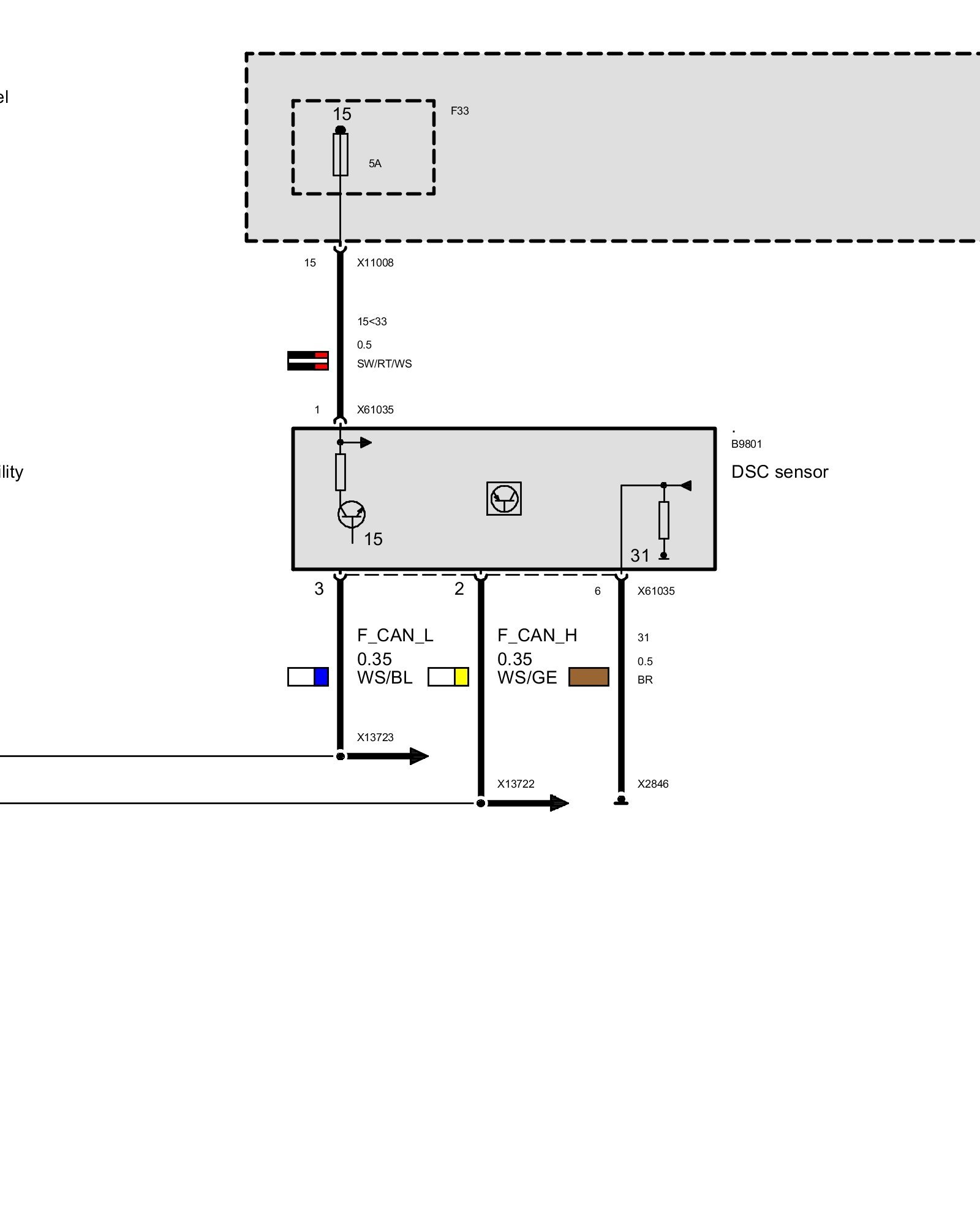

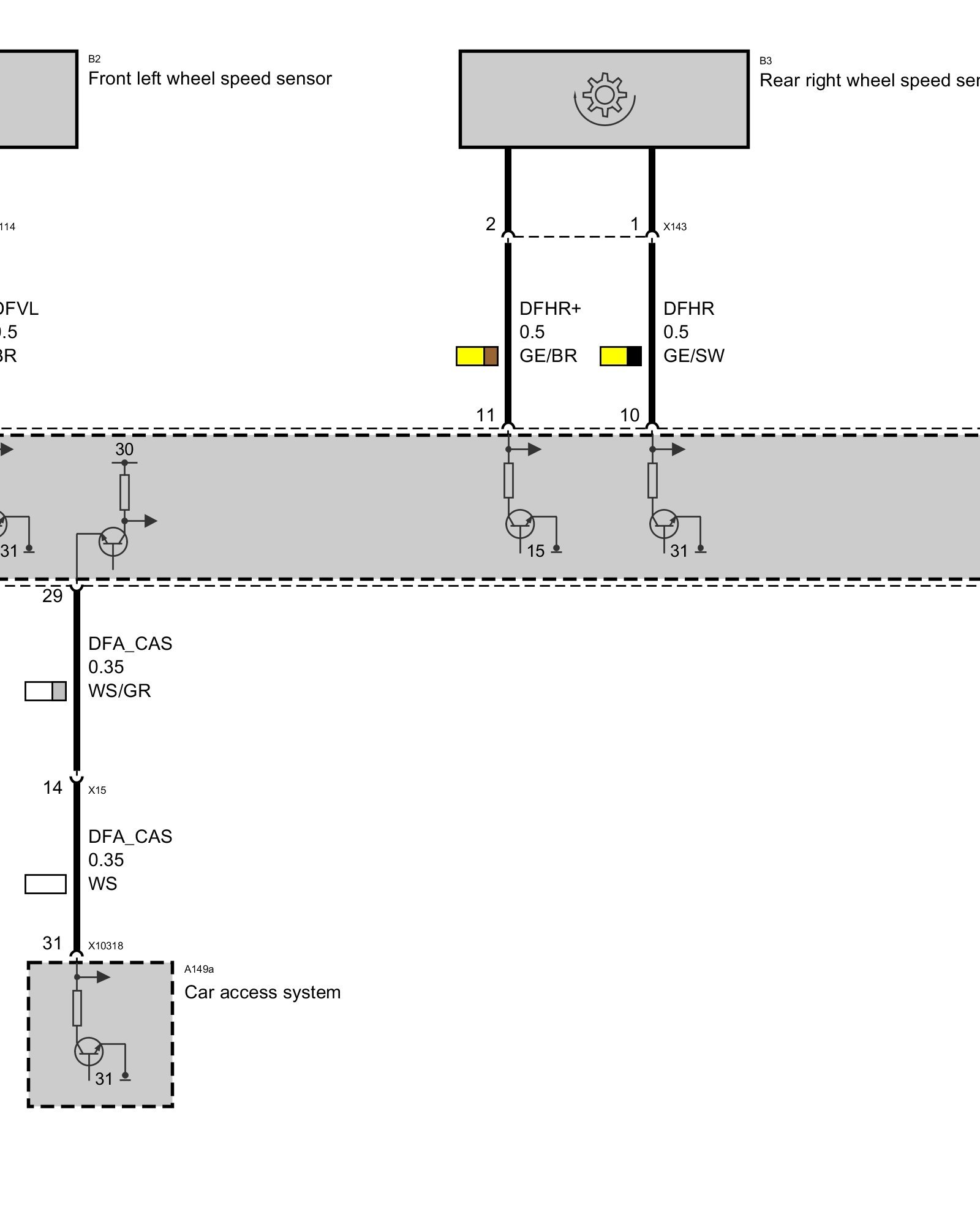

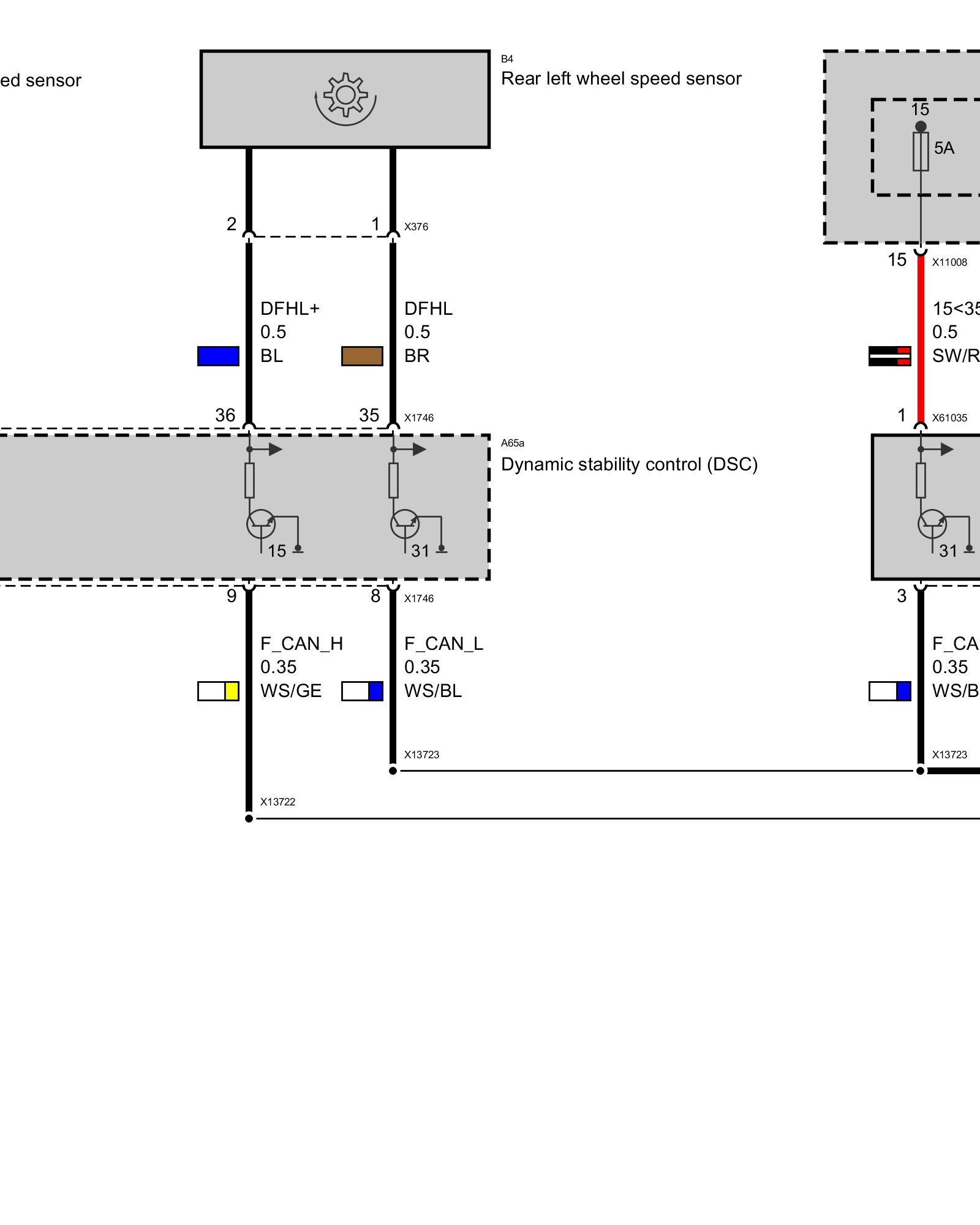

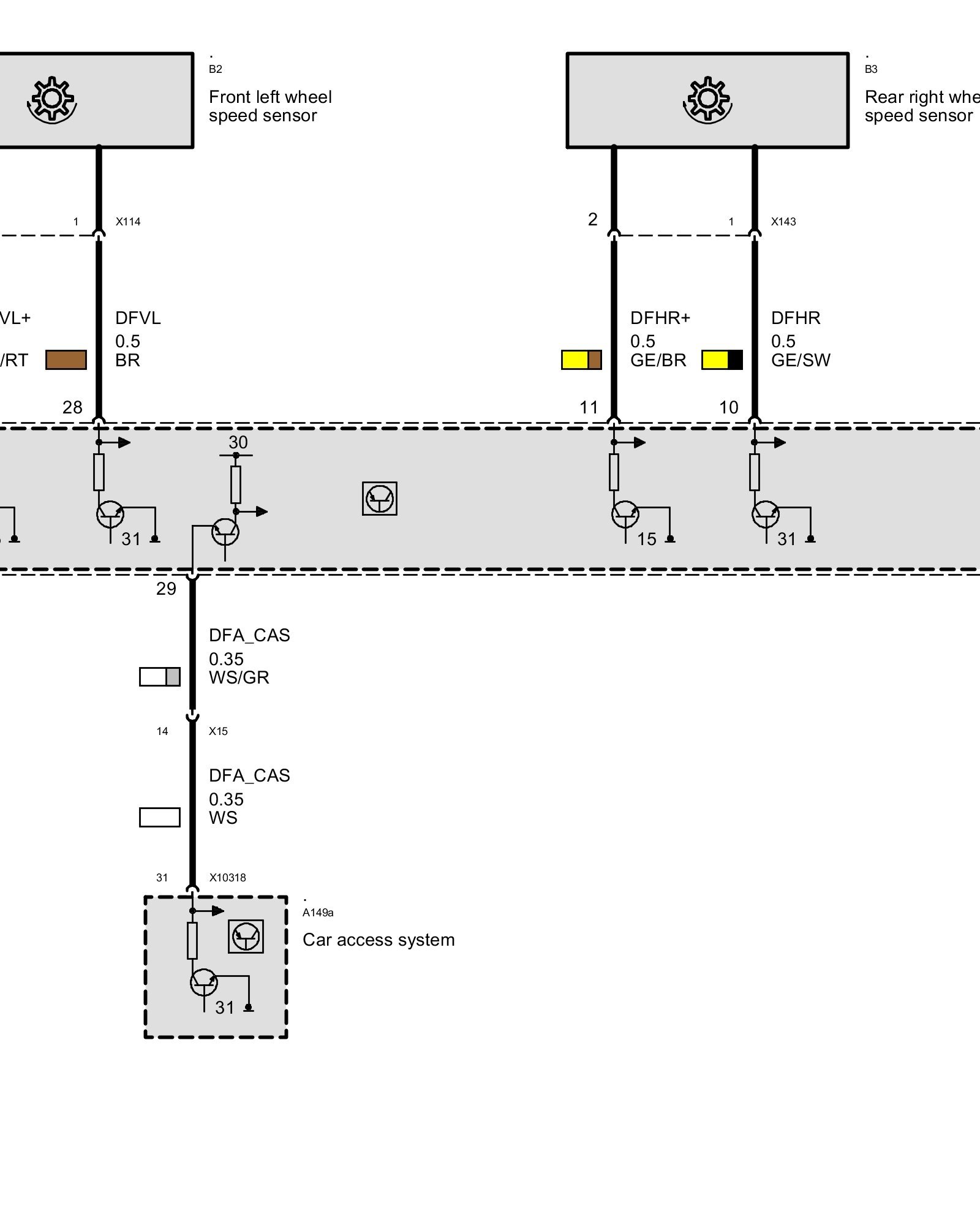

Sensor System

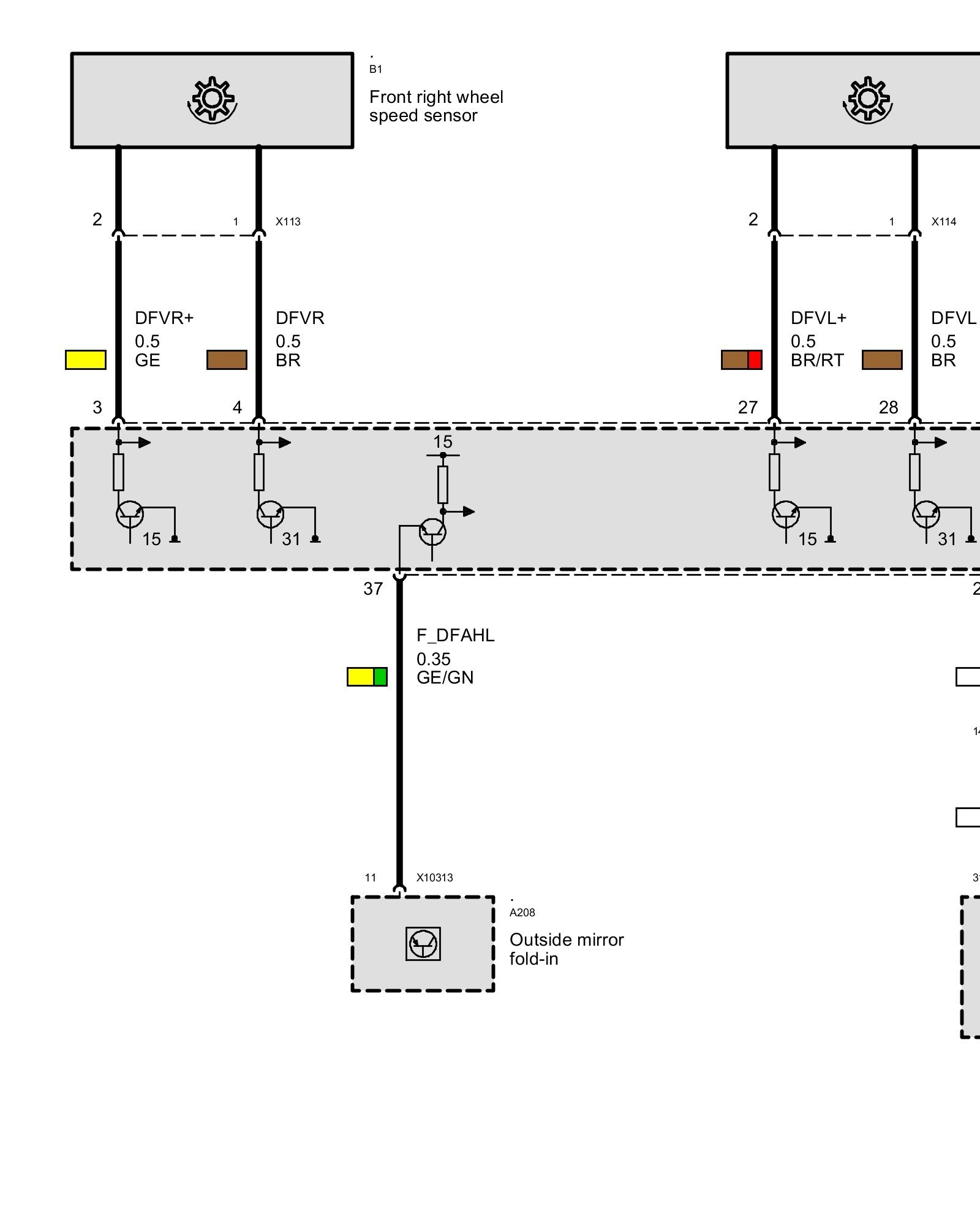

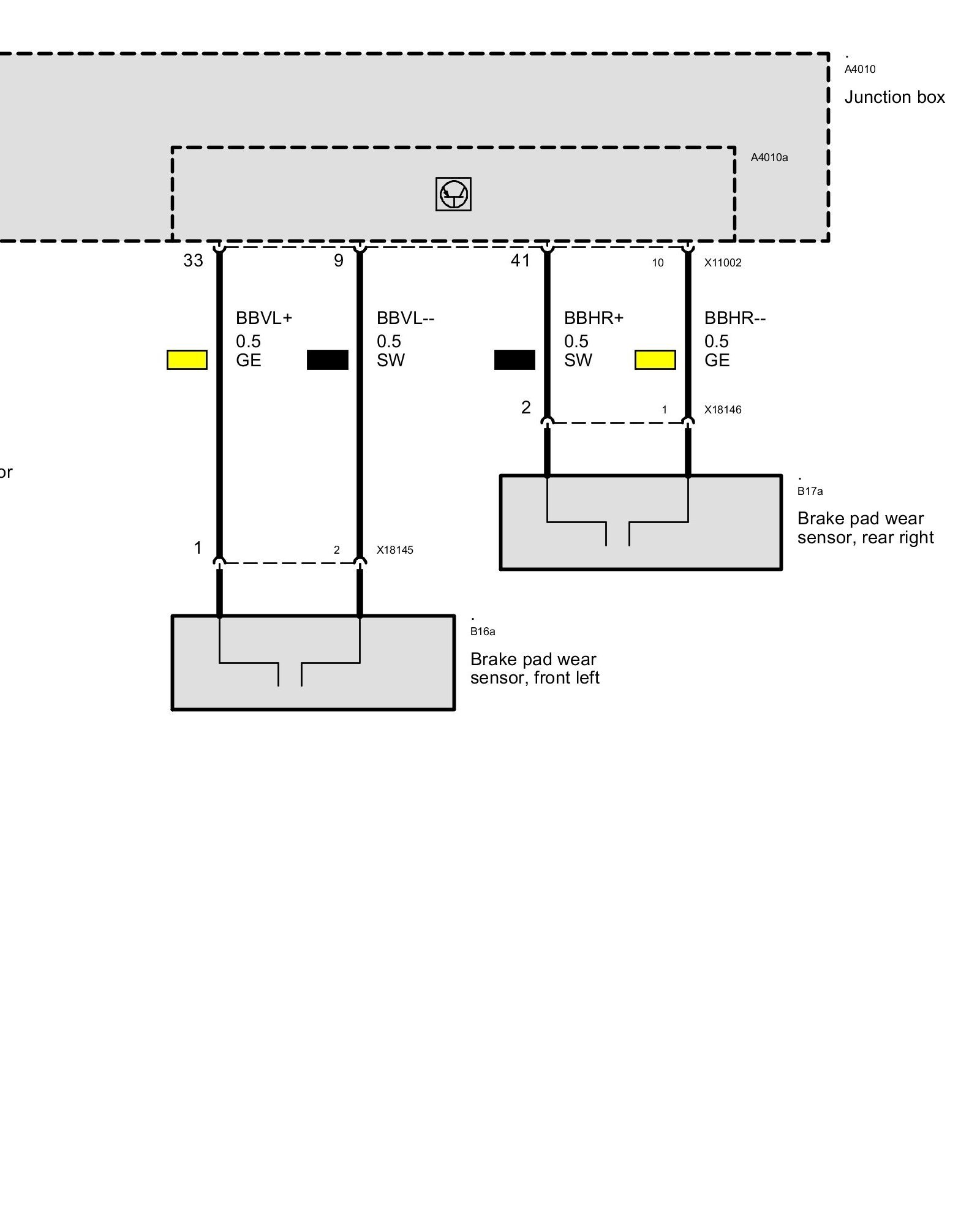

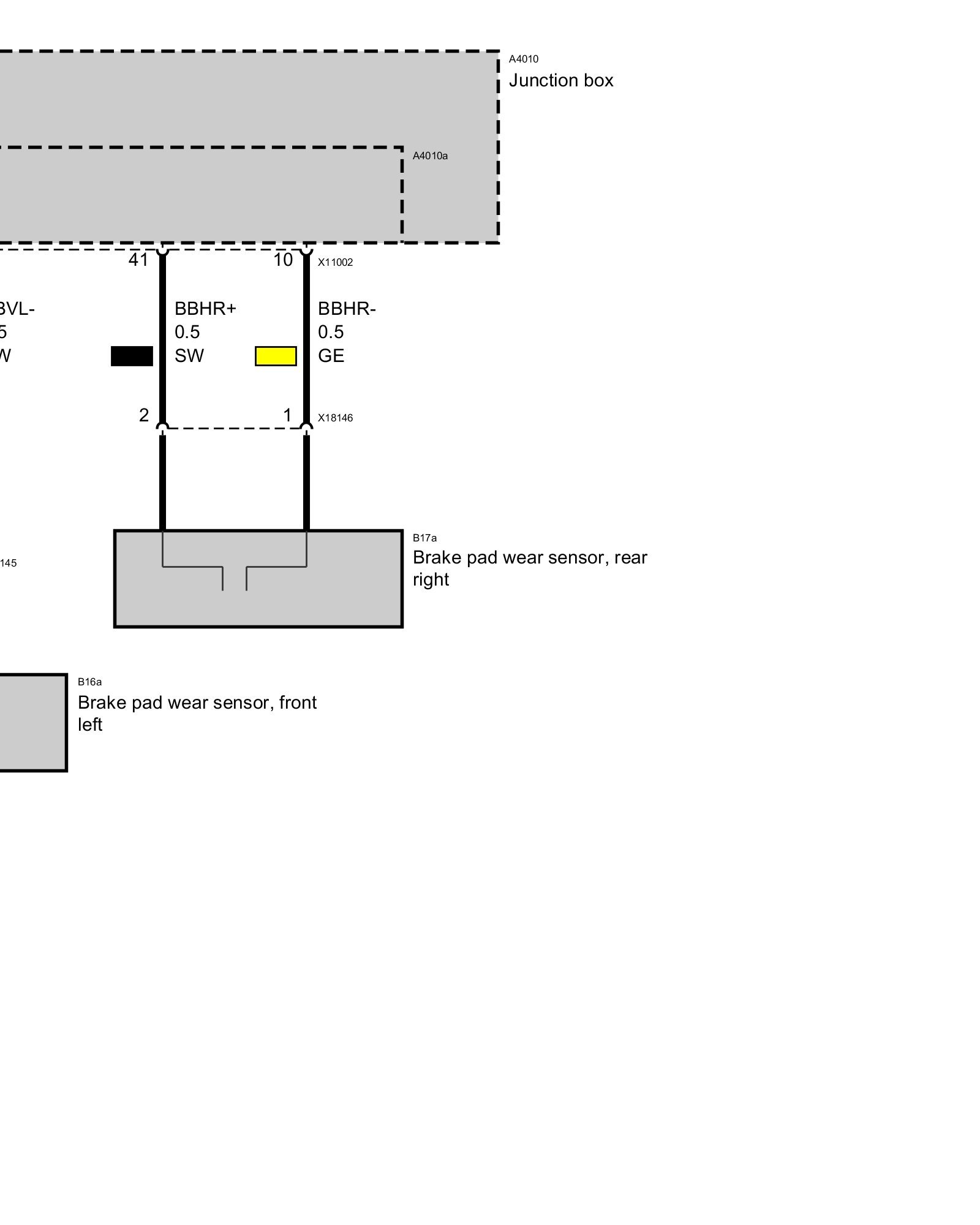

Sensor System

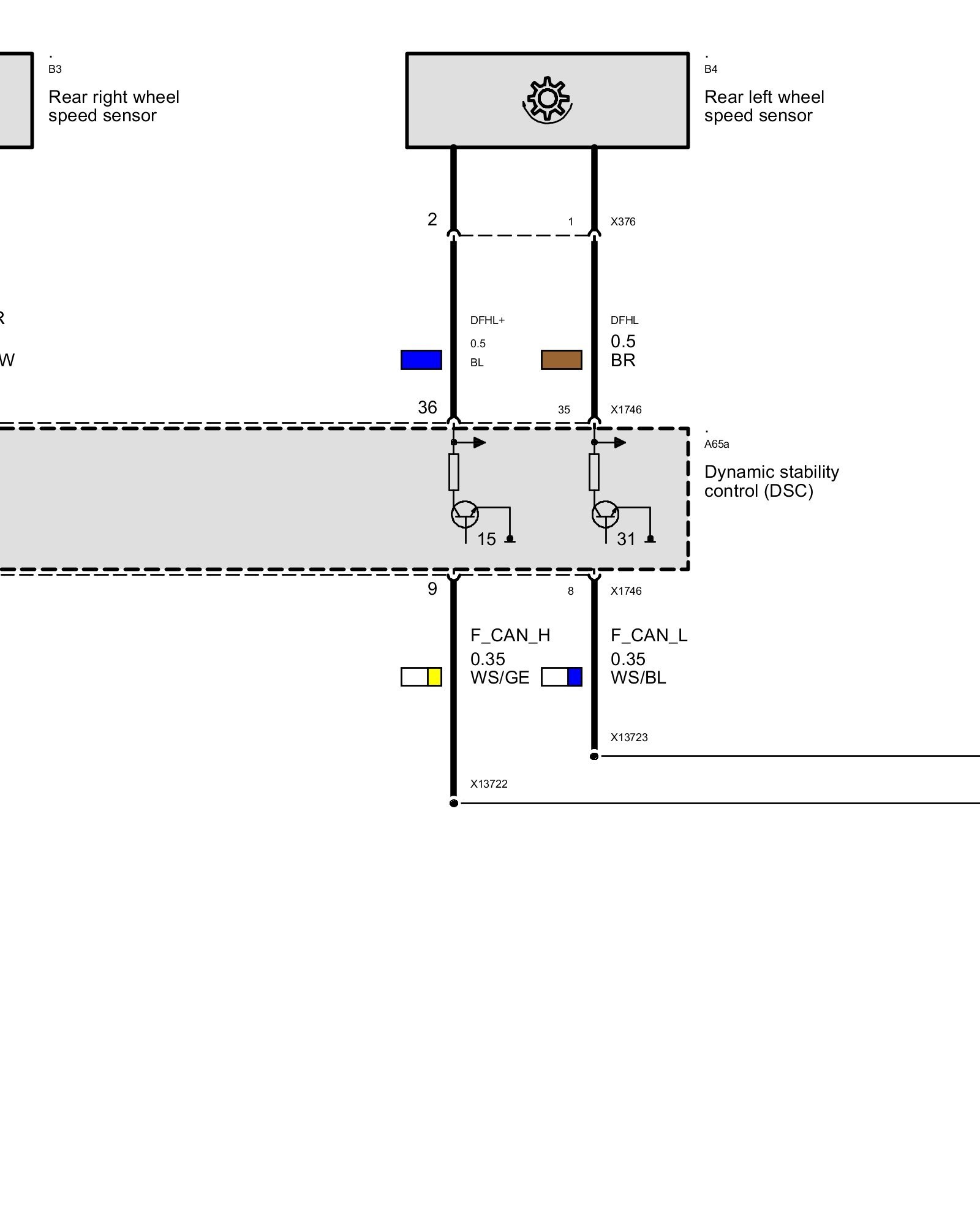

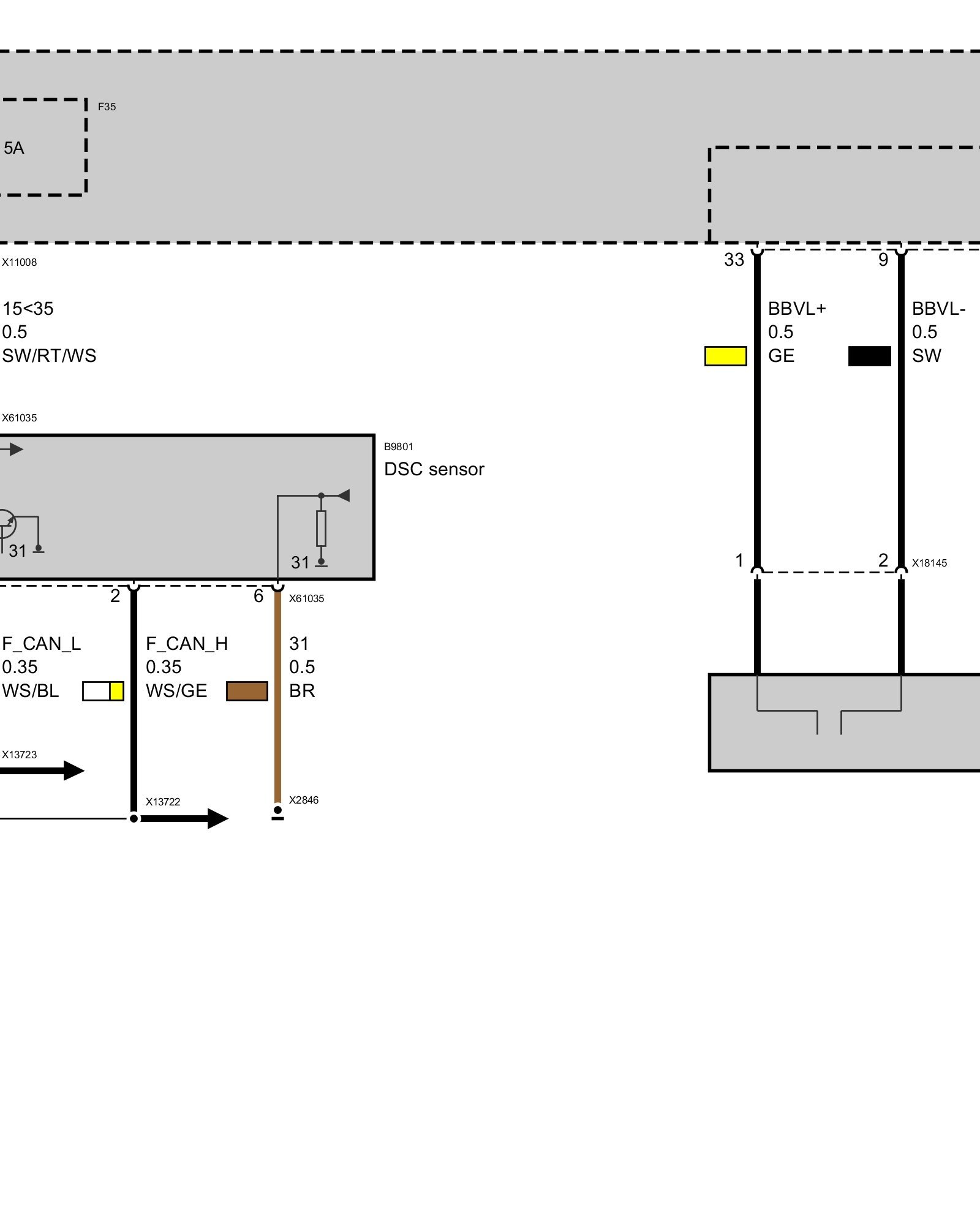

Sensor System
