34 6 300 Brake Piston Tool

34 6 300 Brake piston tool
Minimum set: Mechanical tools

Note: For turning back brake piston when fitting new brake pads, disc brakes front and rear

Series: R50, R52, R53, R55, R56
SI number: 1 05 01 (718)
Order number: 34 6 300 Brake piston tool

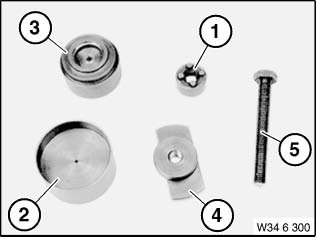

Consisting of:
1 = 34 6 301 Pin wrench

Note: For turning brake piston. Brake: Teves

2 = 34 6 302 Thrust sleeve

Note: For fitting rubber sleeve (dia. 63)

3 = 34 6 303 Thrust sleeve

Note: For fitting rubber sleeve (dia. 54)

4 = 34 6 304 Thrust member

Note: For pressing piston back

5 = 34 6 305 Screw

Note: For pressing piston back

6 = 34 6 306 Nut
7 = 34 6 307 Plate
8 = 34 6 308 Spindle (M18x2,5)
9 = 34 6 309 Pin wrench

Note: For rotating brake piston on R56. Brake: TRW
