A4011 Footwell Module Without Xenon Headlights, Without Adaptive Headlights

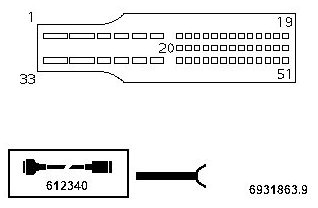

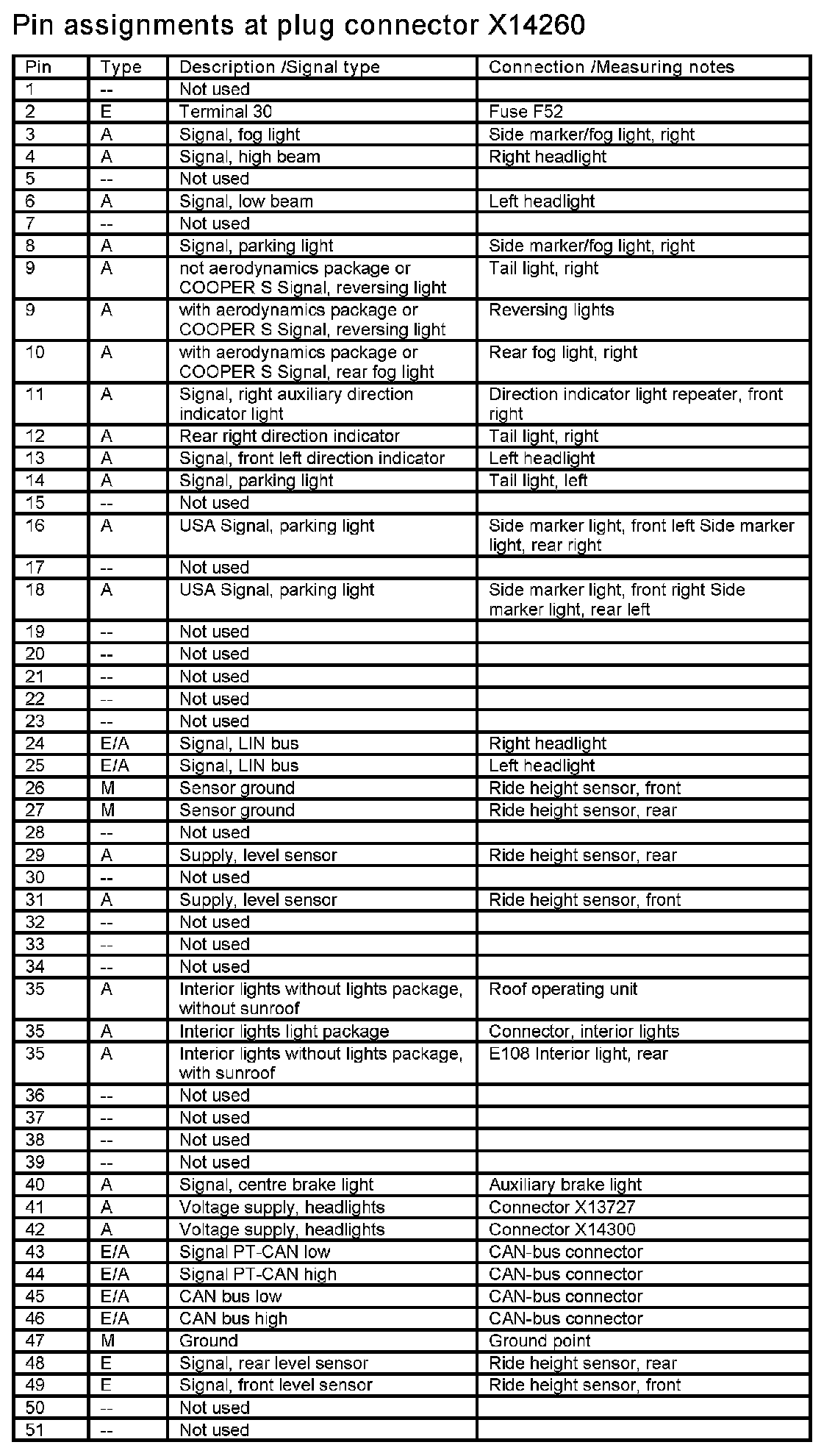

X14260







A4011 Footwell Module
