Connectors From X6
>>

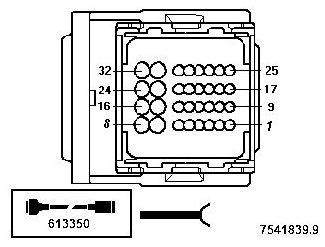

X60212
>>
N12 Engine As of 08/07
>>
Plug Connector
Plug Connector
X60212
A6000 DME Control Unit
