Home
>>
Mini
>>
2008
>>
Cooper (R56) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X6
>>

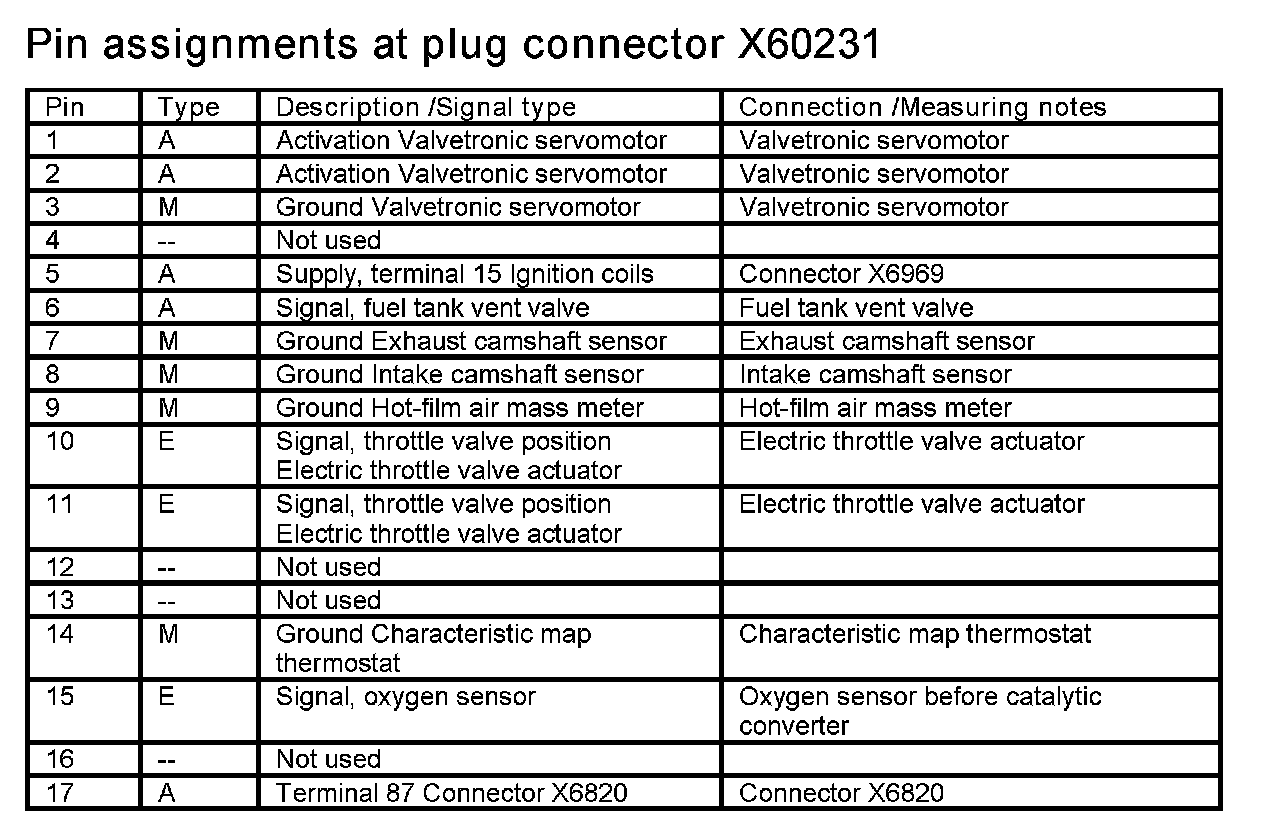

X60231
X60231
X60231
A6000 DME Control Unit
