Cooper (R56) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X9
>>

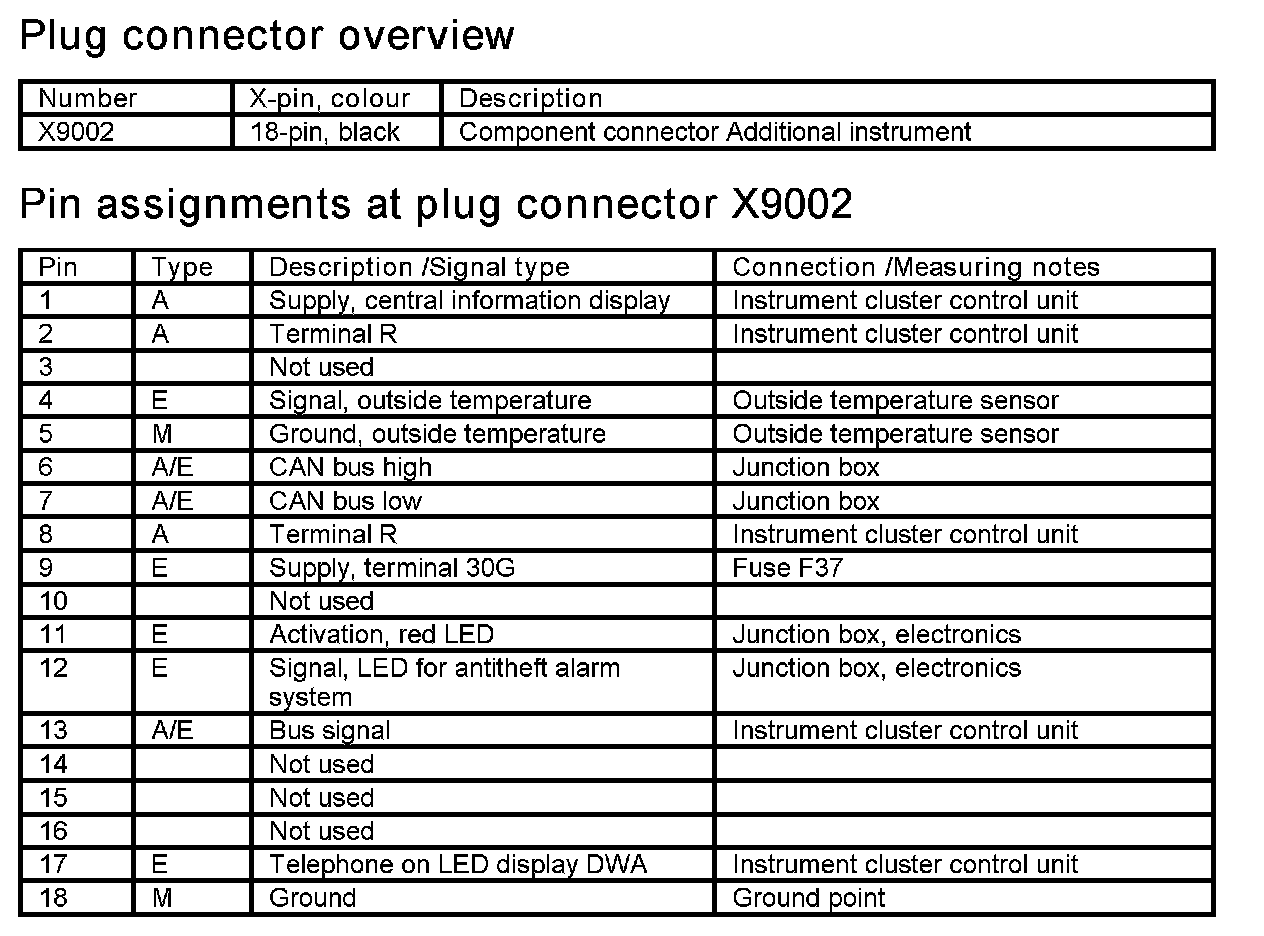

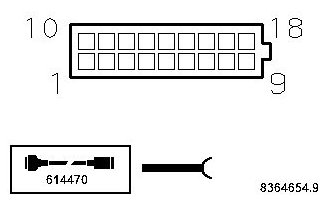

X9002
X9002
X9002
A9001 Additional Instrument
