System Diagram
>>

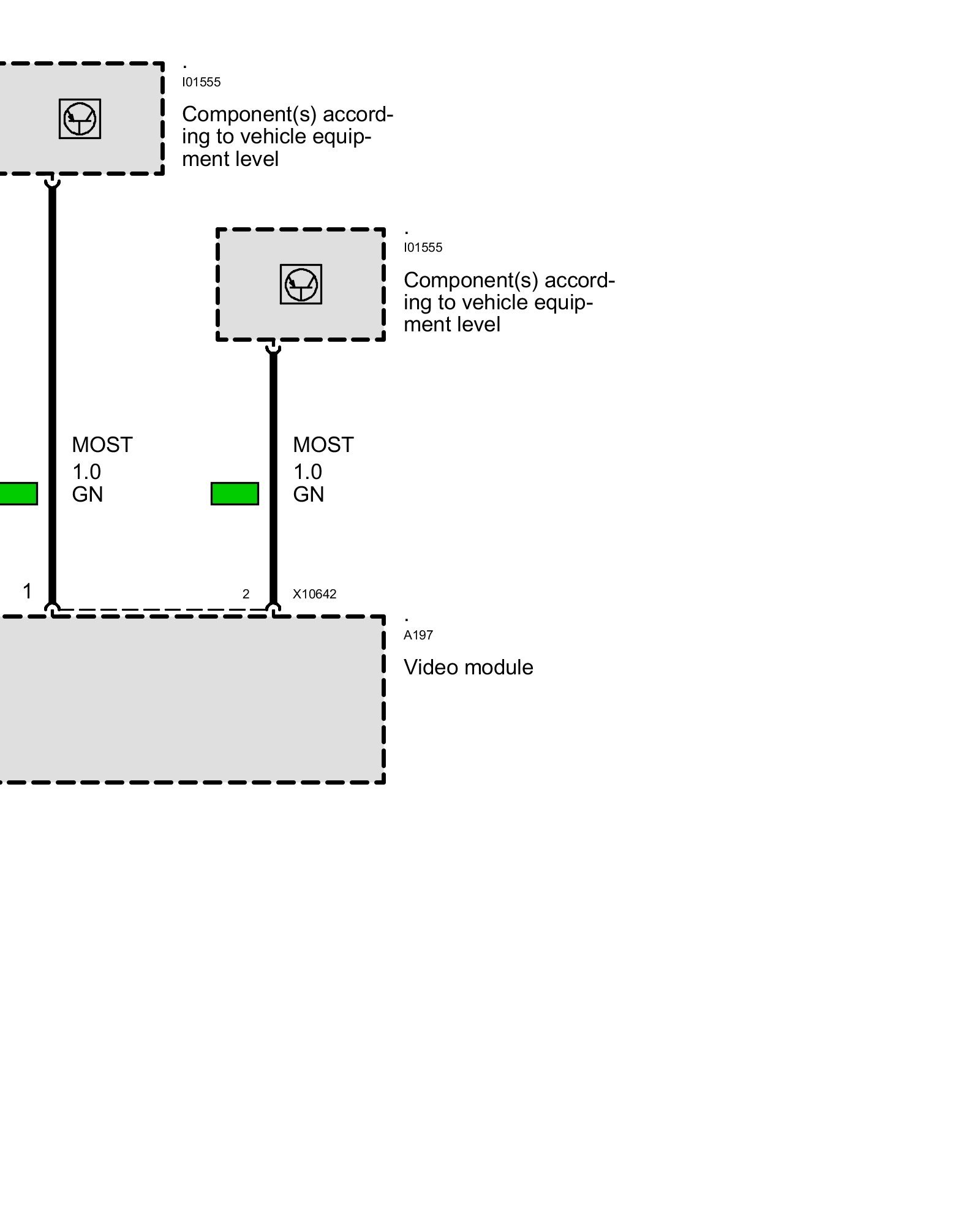

Power Supply VM Video Module

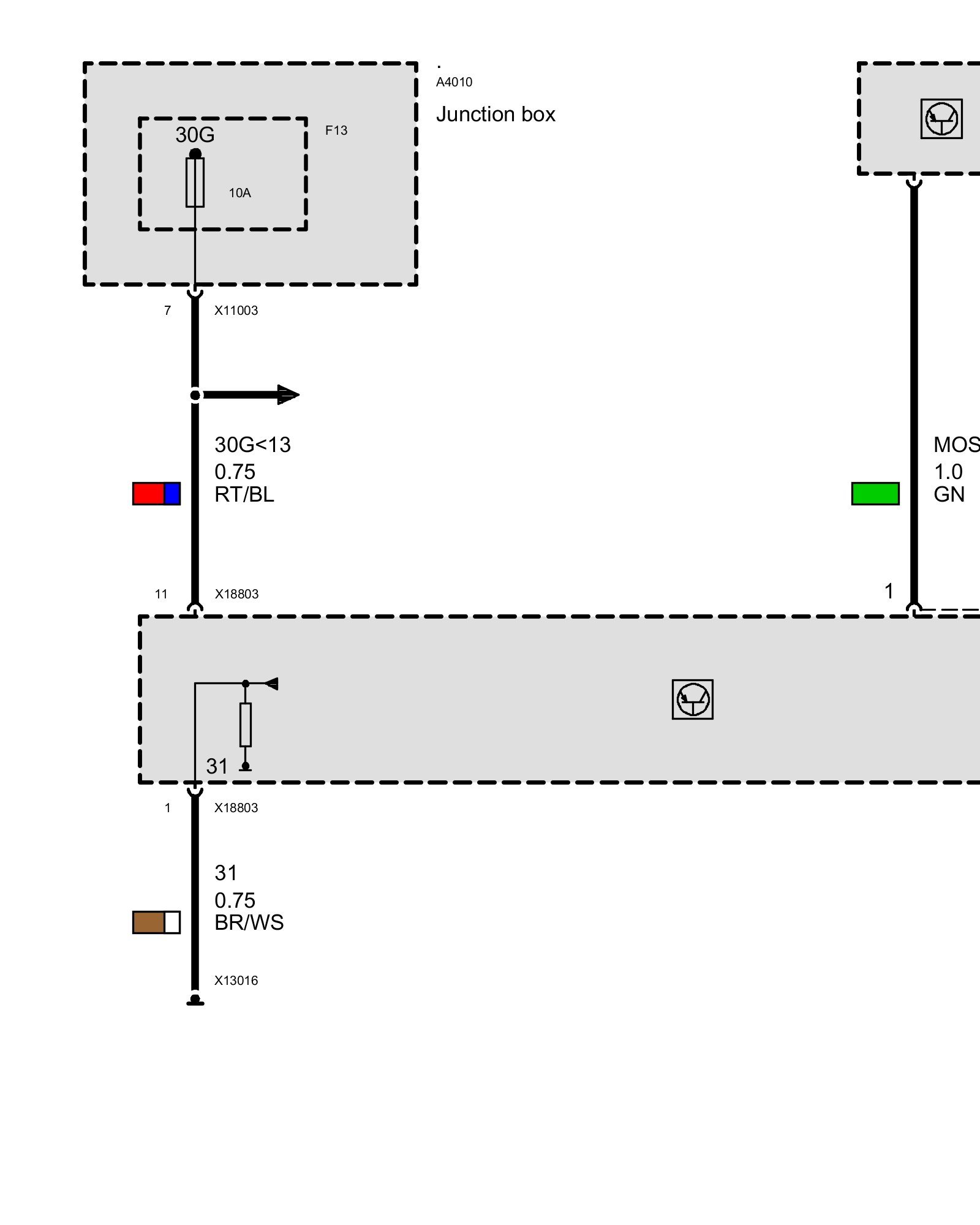

Power Supply VM Video Module

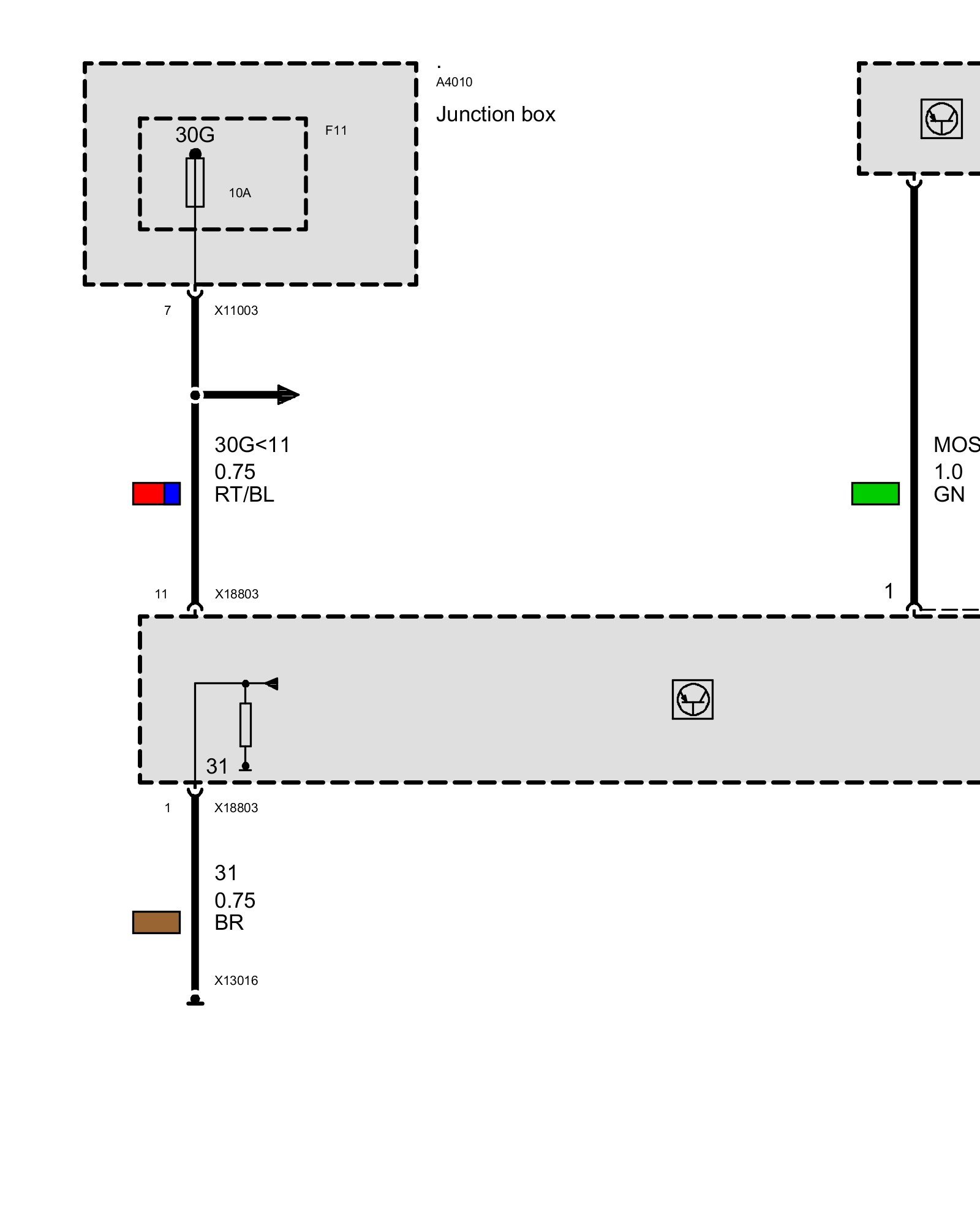

Power Supply VM Video Module
