A18 Amplifier (Left-Hand Drive Up to 08/07)



A18 Amplifier (Left-Hand Drive Up to 08/07)

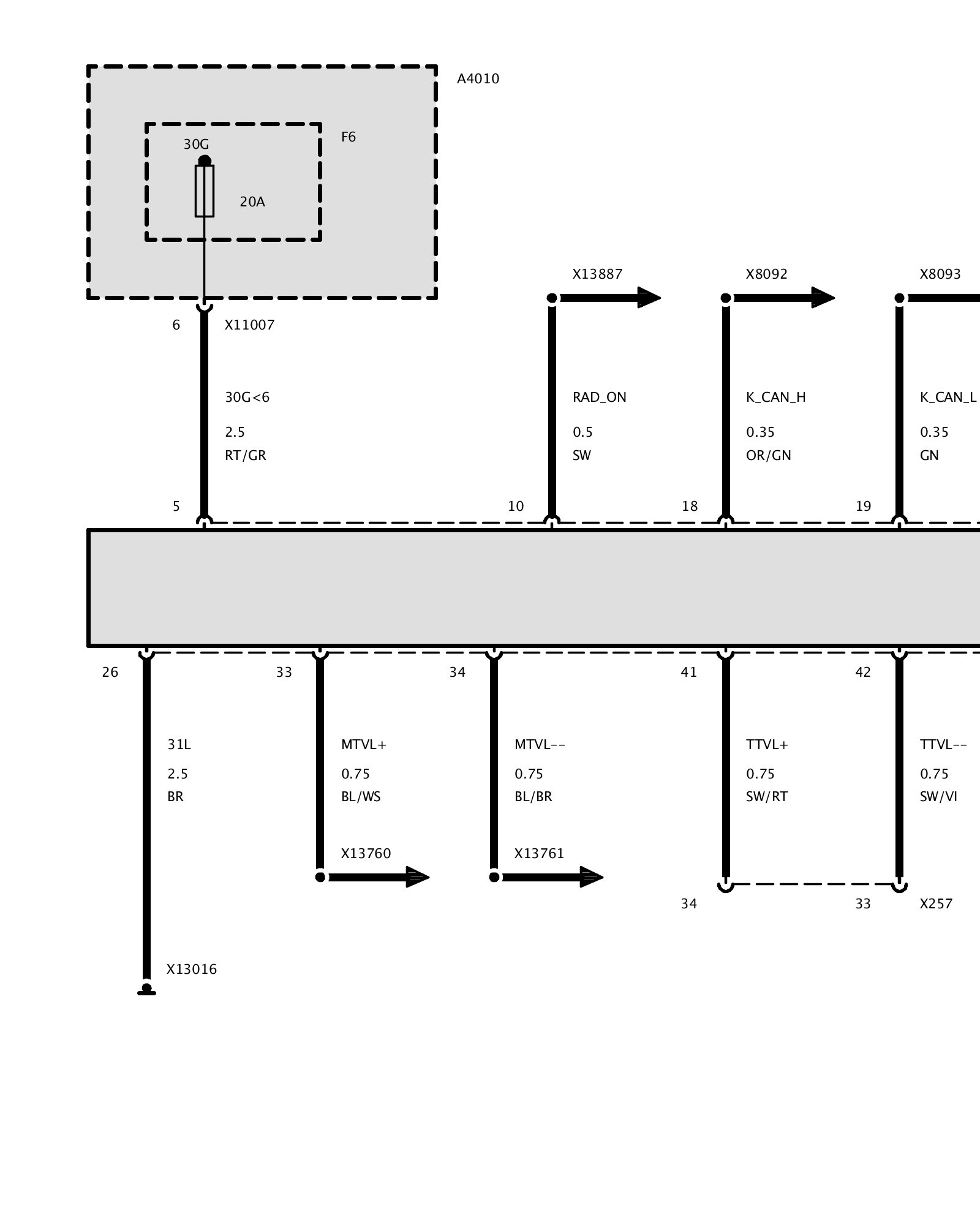

Part 1:

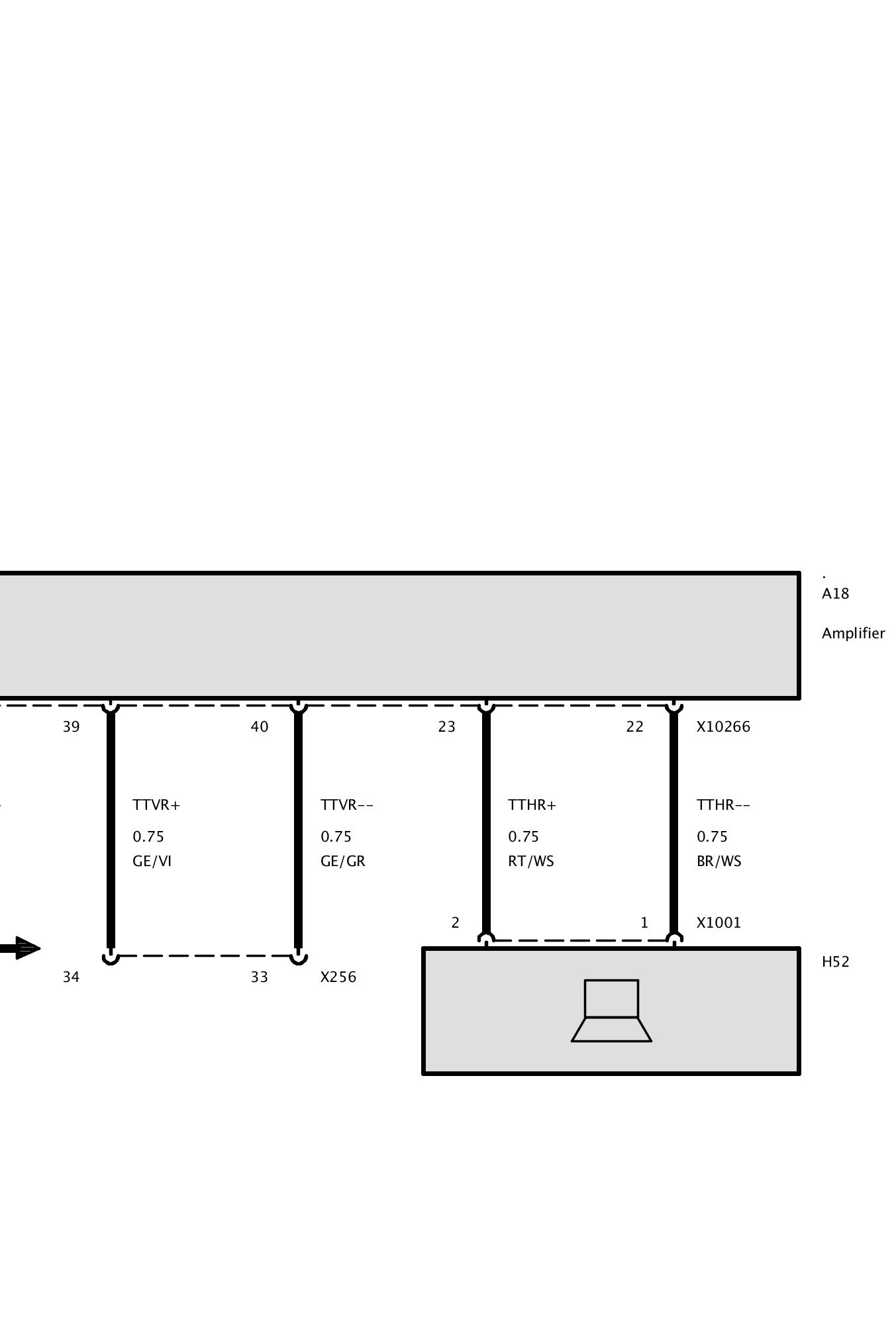

Part 2:

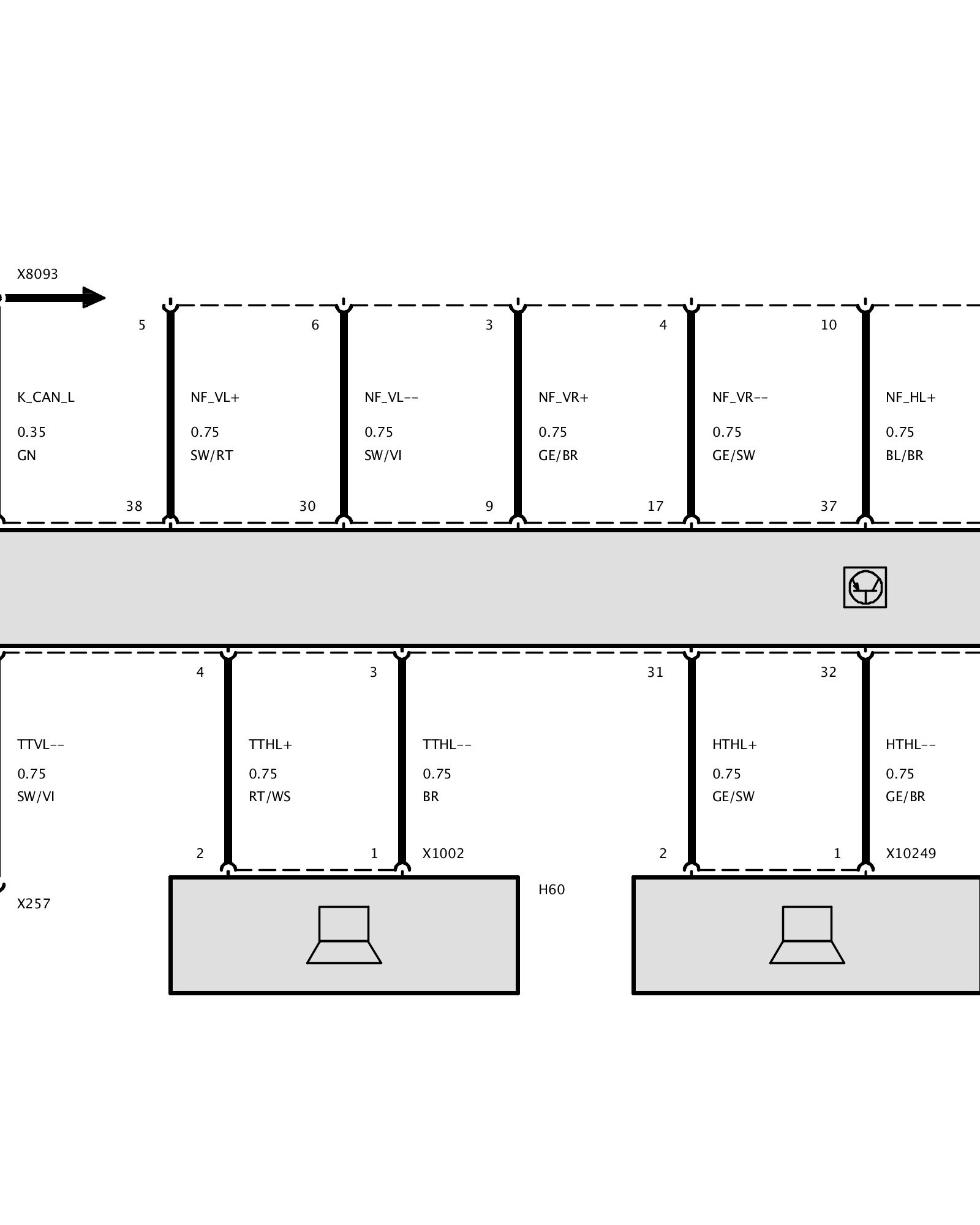

Part 3:

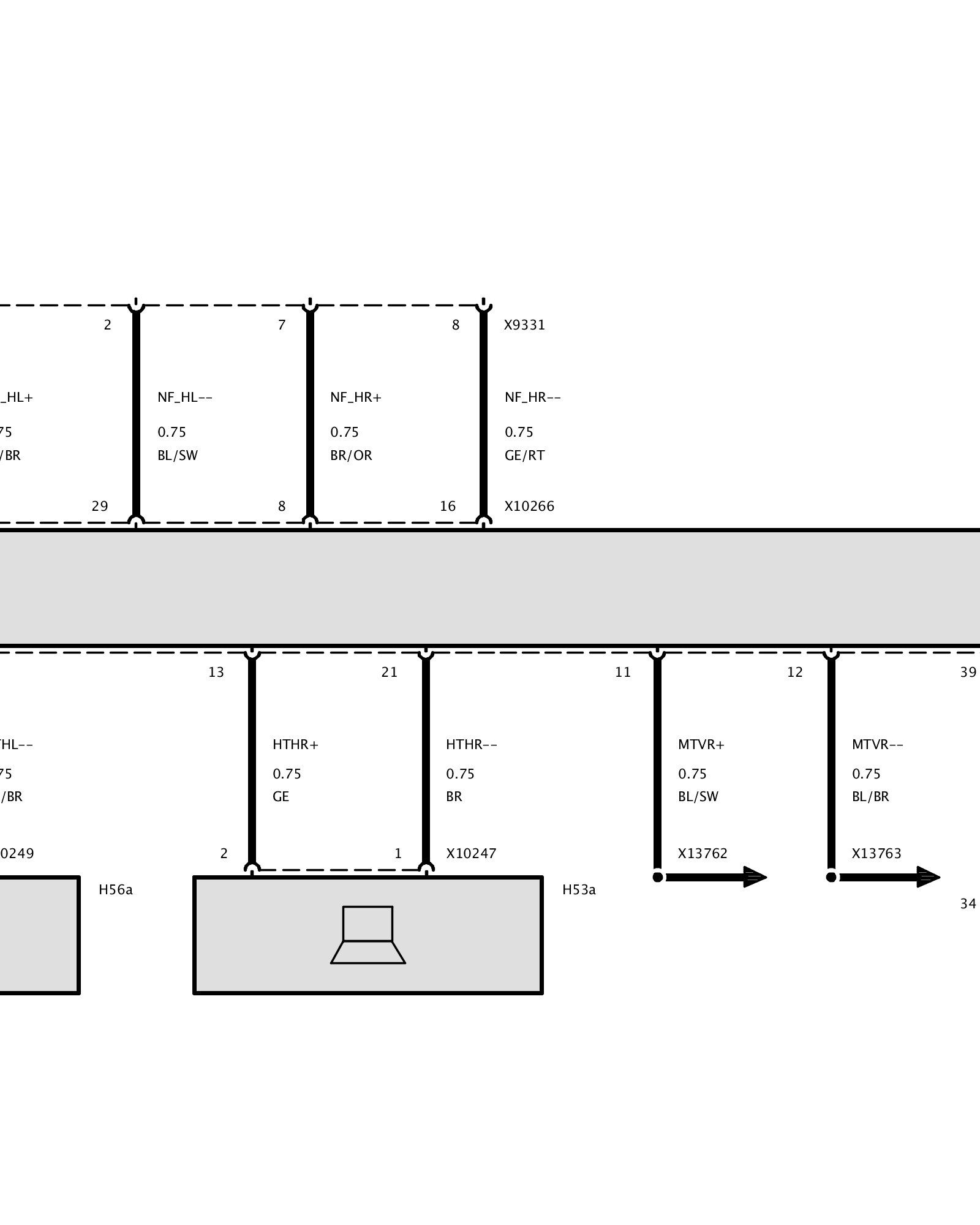

Part 4:
