Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

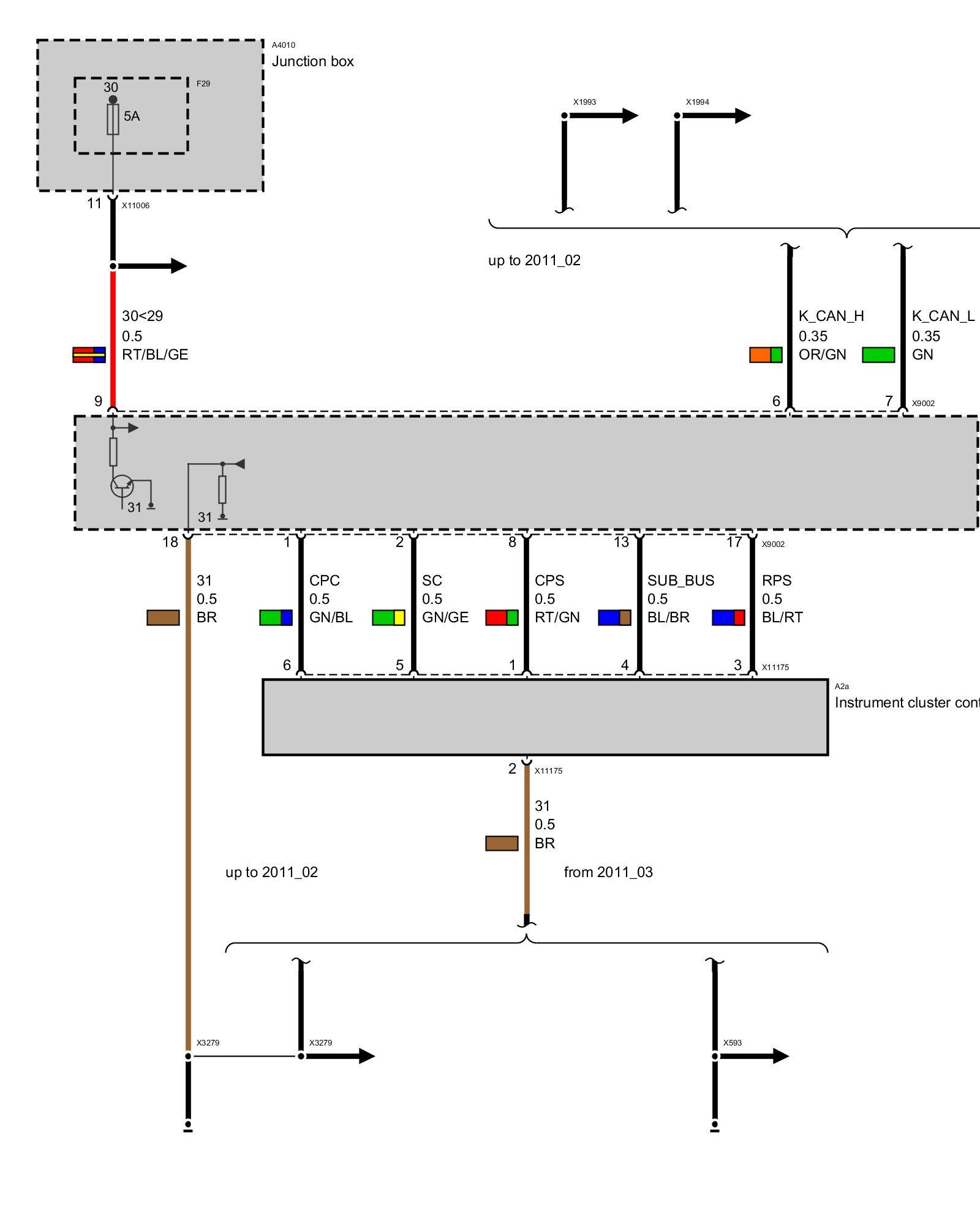

Power Supply, Instrument Cluster KOMBI

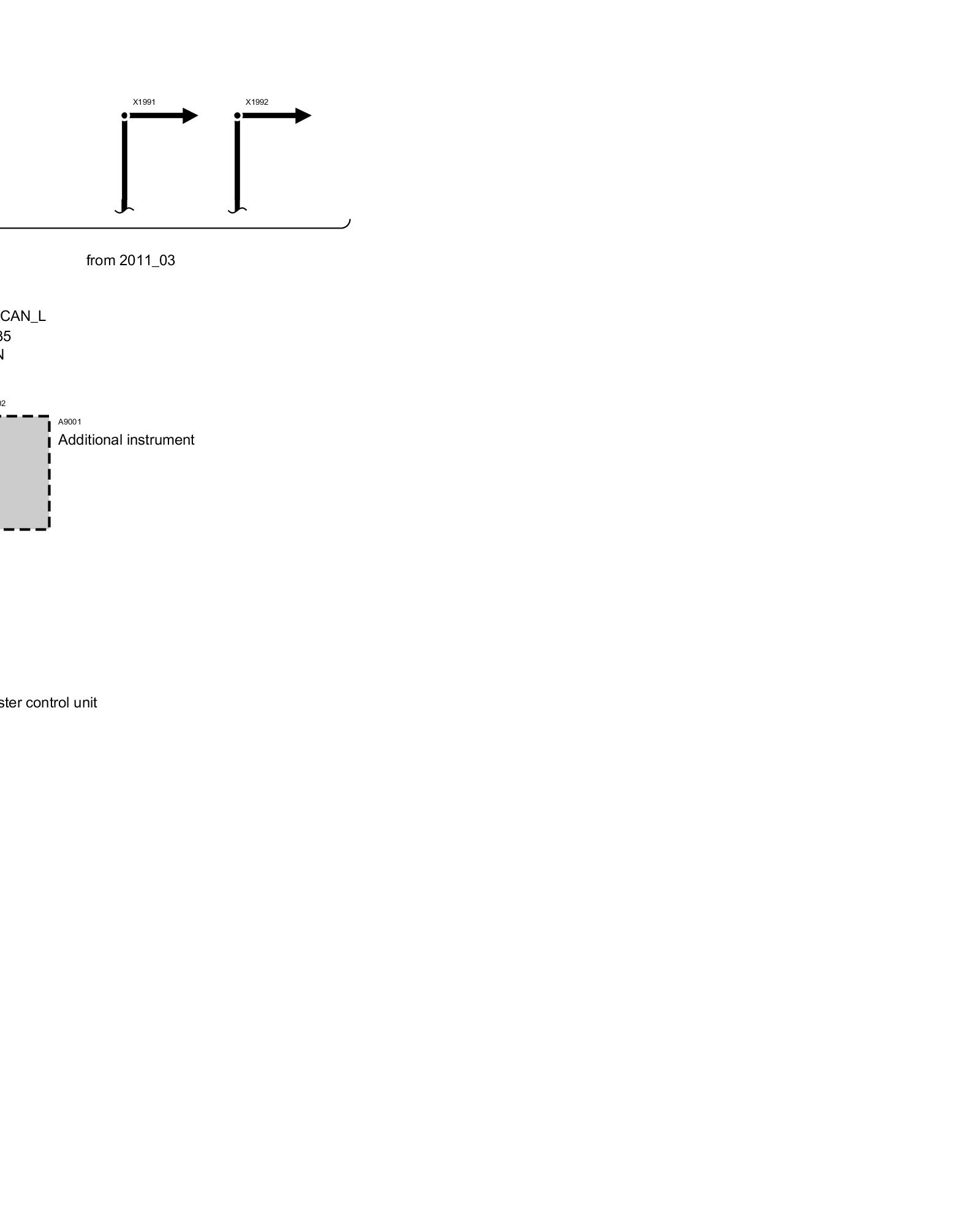

Power Supply, Instrument Cluster KOMBI

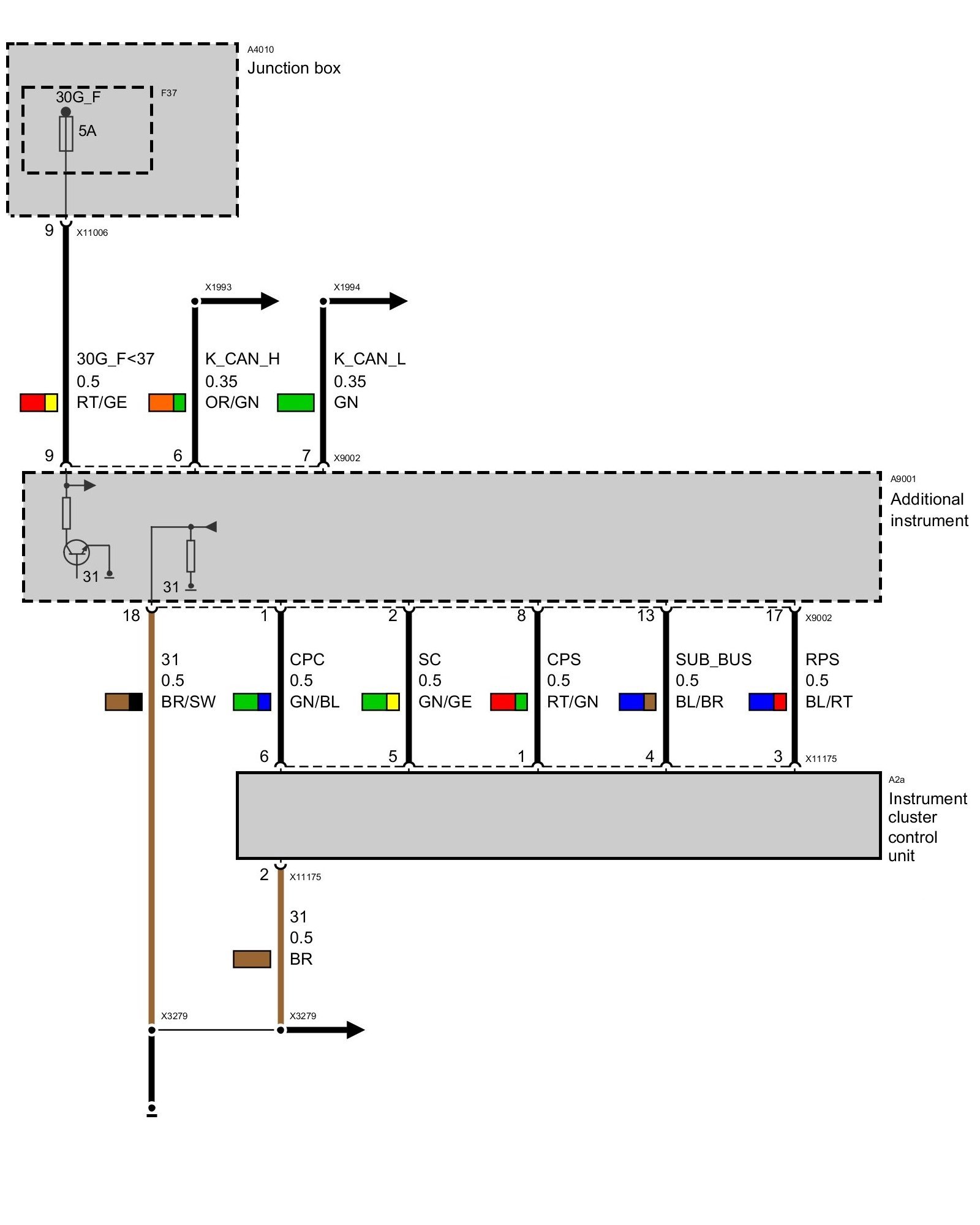

Power Supply, Instrument Cluster KOMBI
