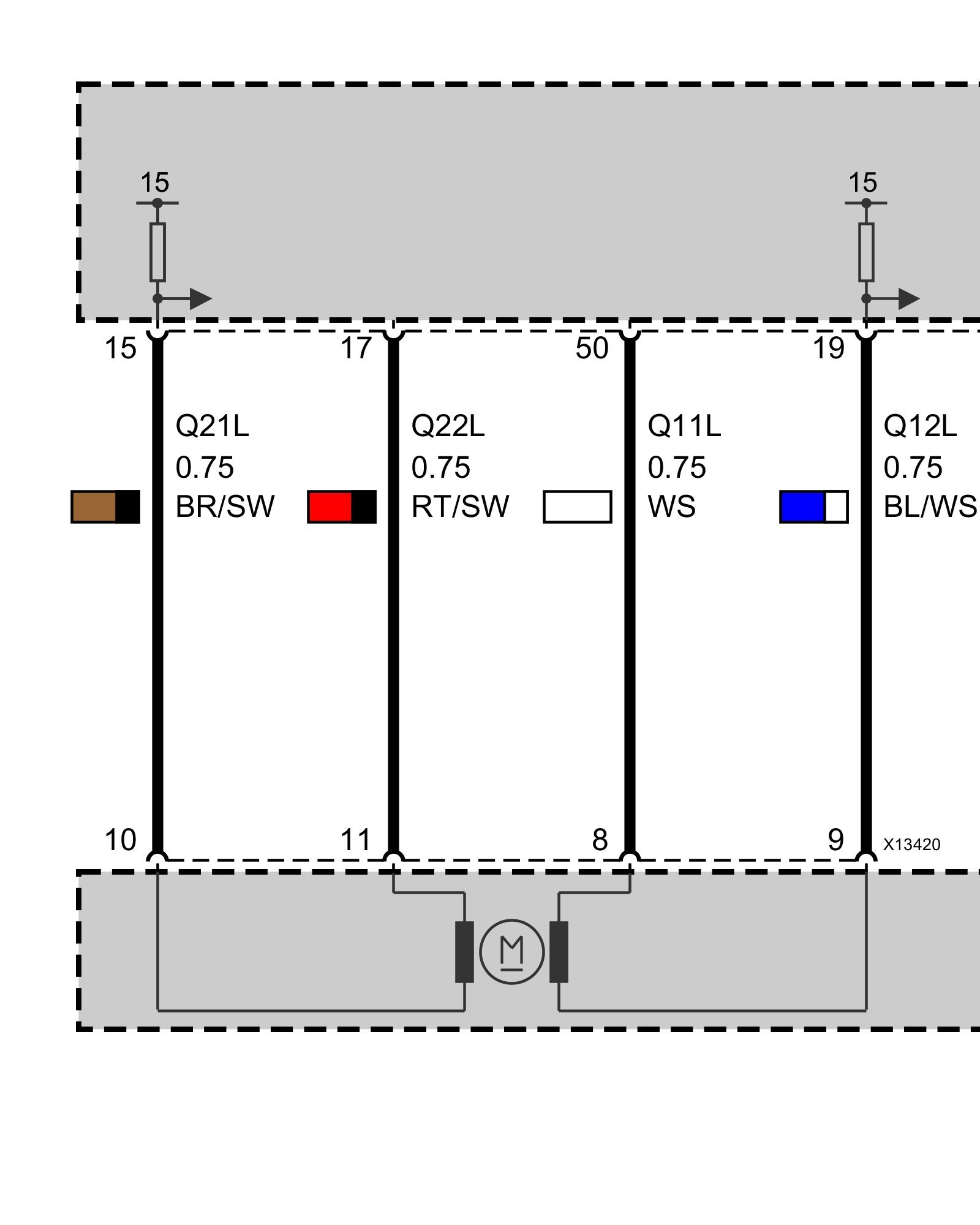

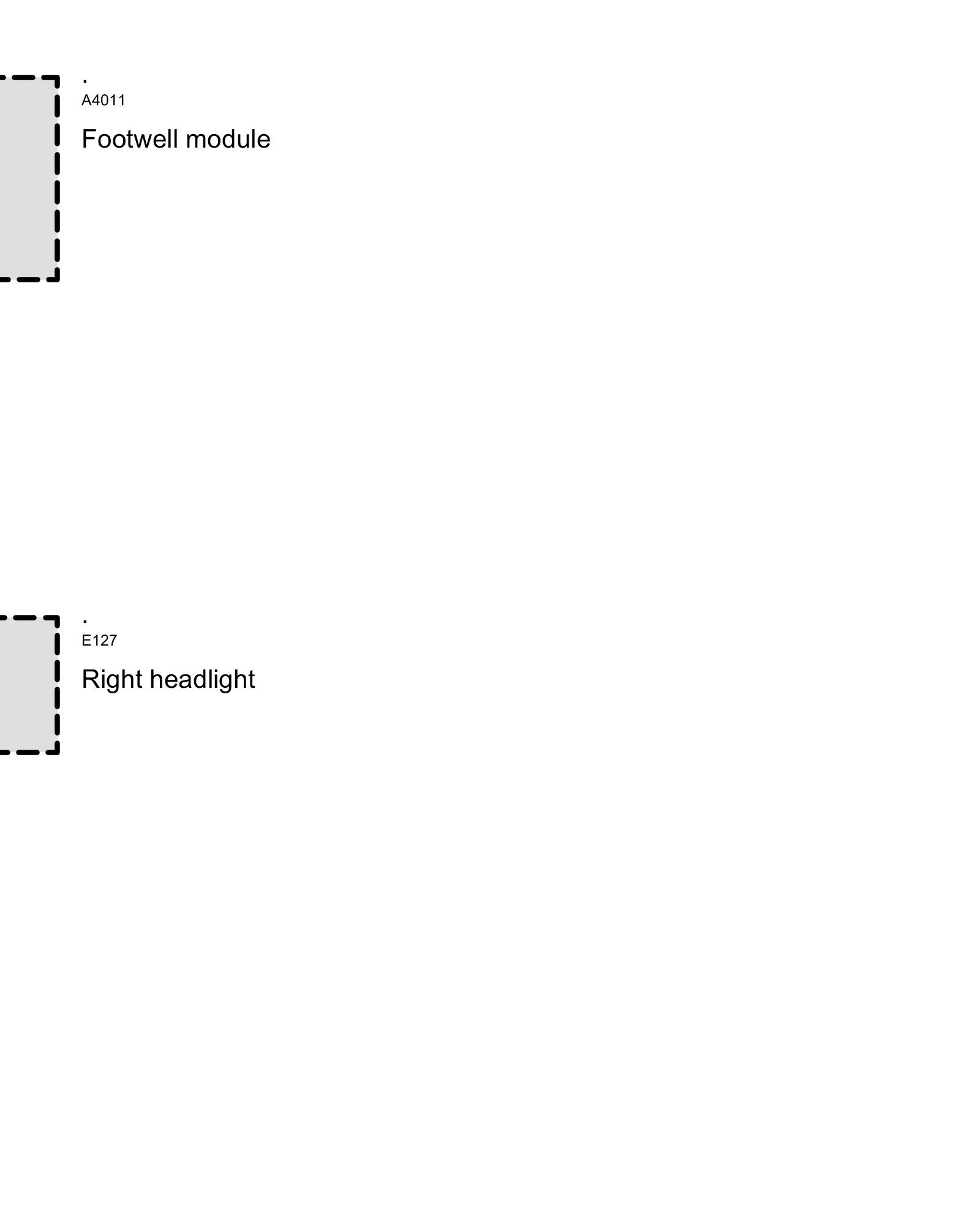

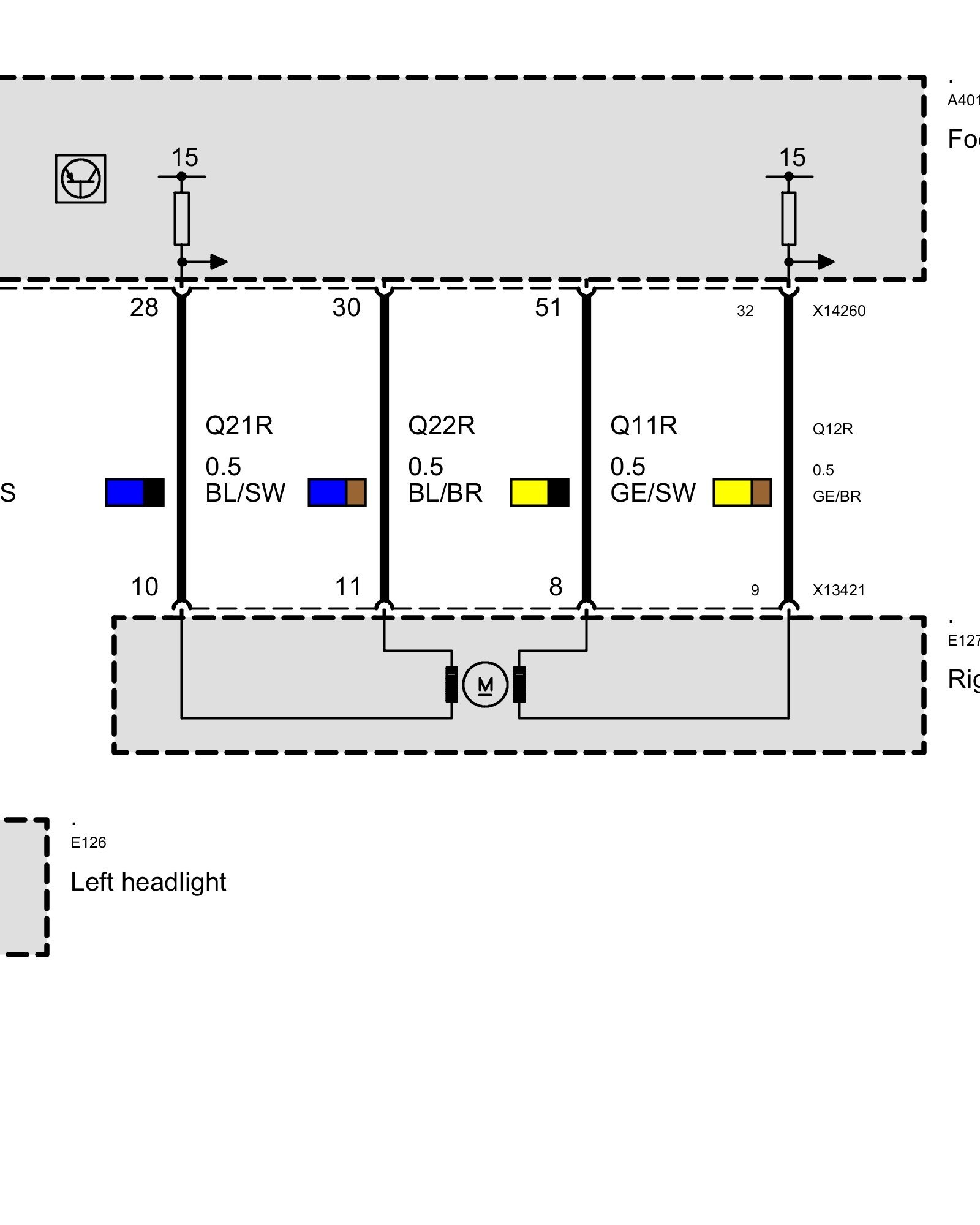

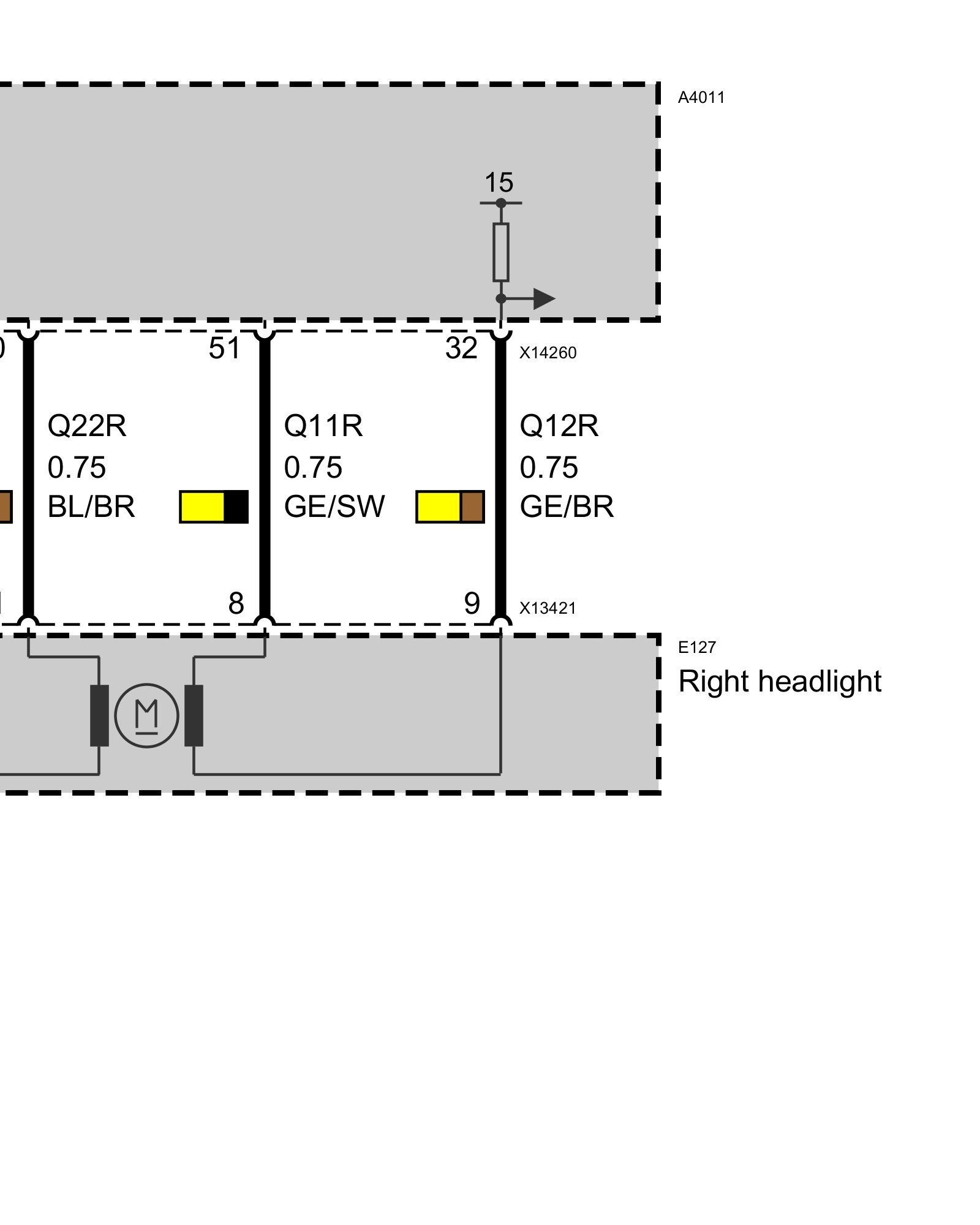

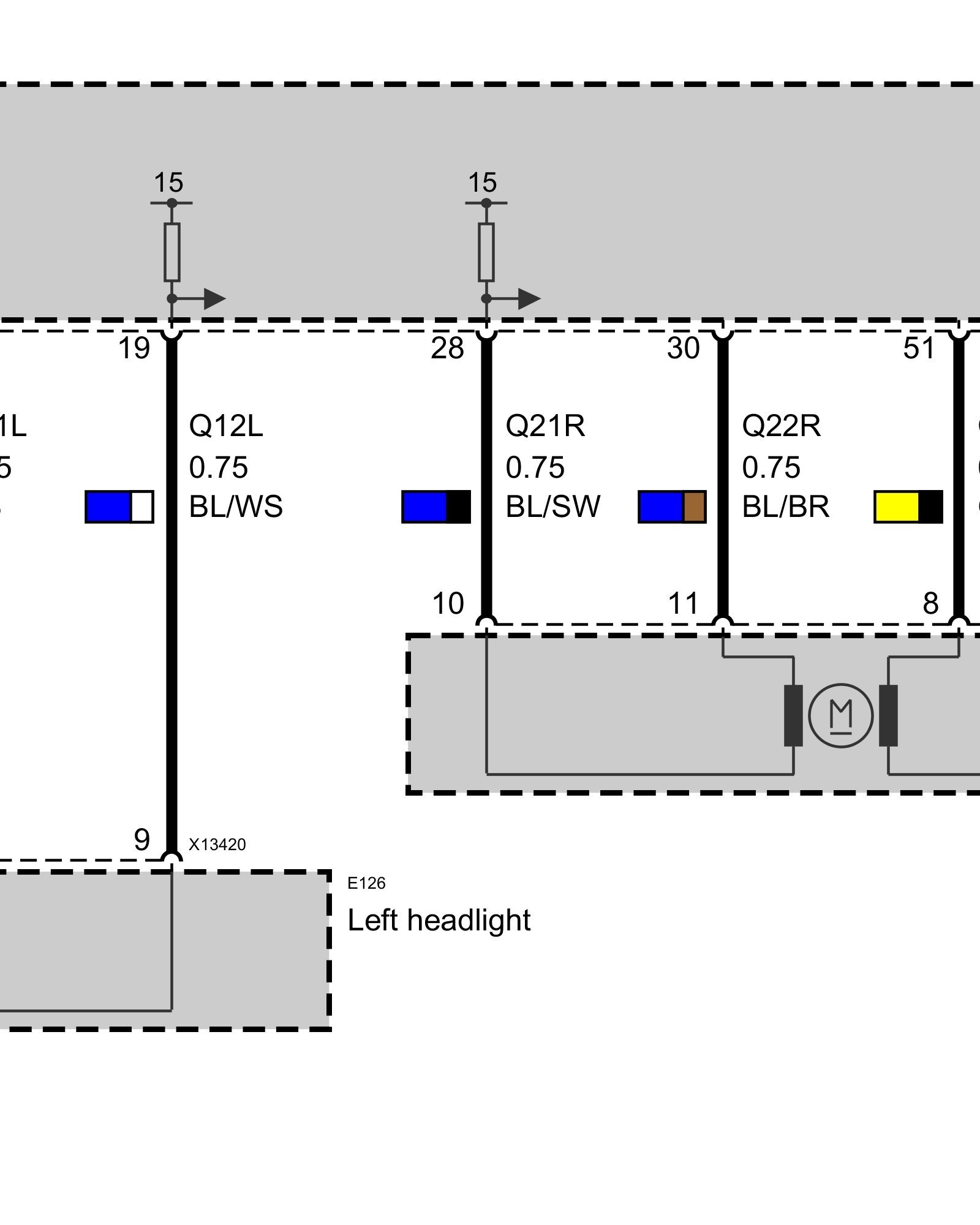

Manual Headlight Vertical Aim Control
Manual Headlight Vertical Aim Control
Manual Headlight Vertical Aim Control
