Home >> Mini >> 2008 >> Cooper (R56) L4-1.6L (N12) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F25

F25

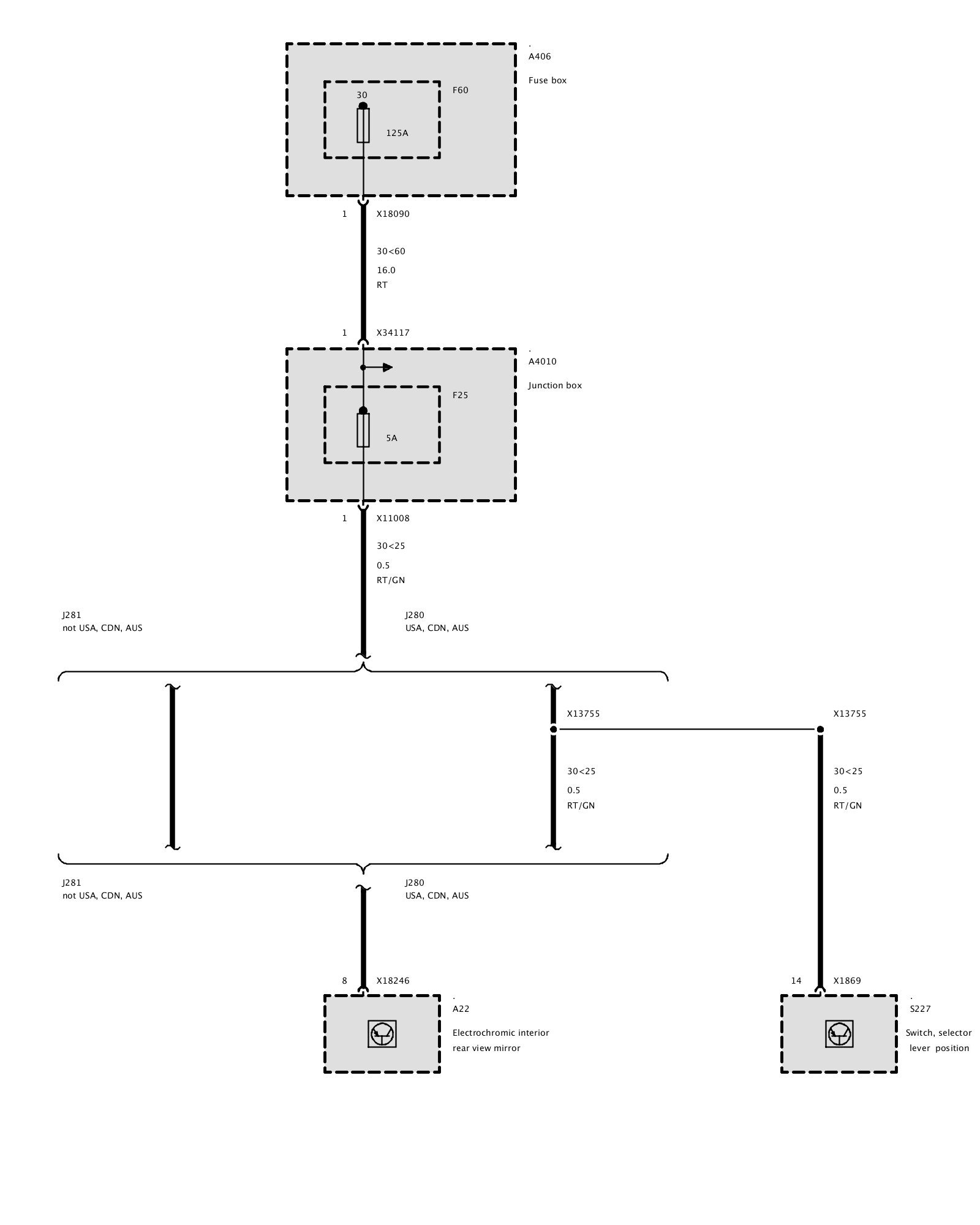

Fuse F25 (Up to 12/08)
