Home
>>
Mini
>>
2008
>>
Cooper (R56) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Information Bus
>>

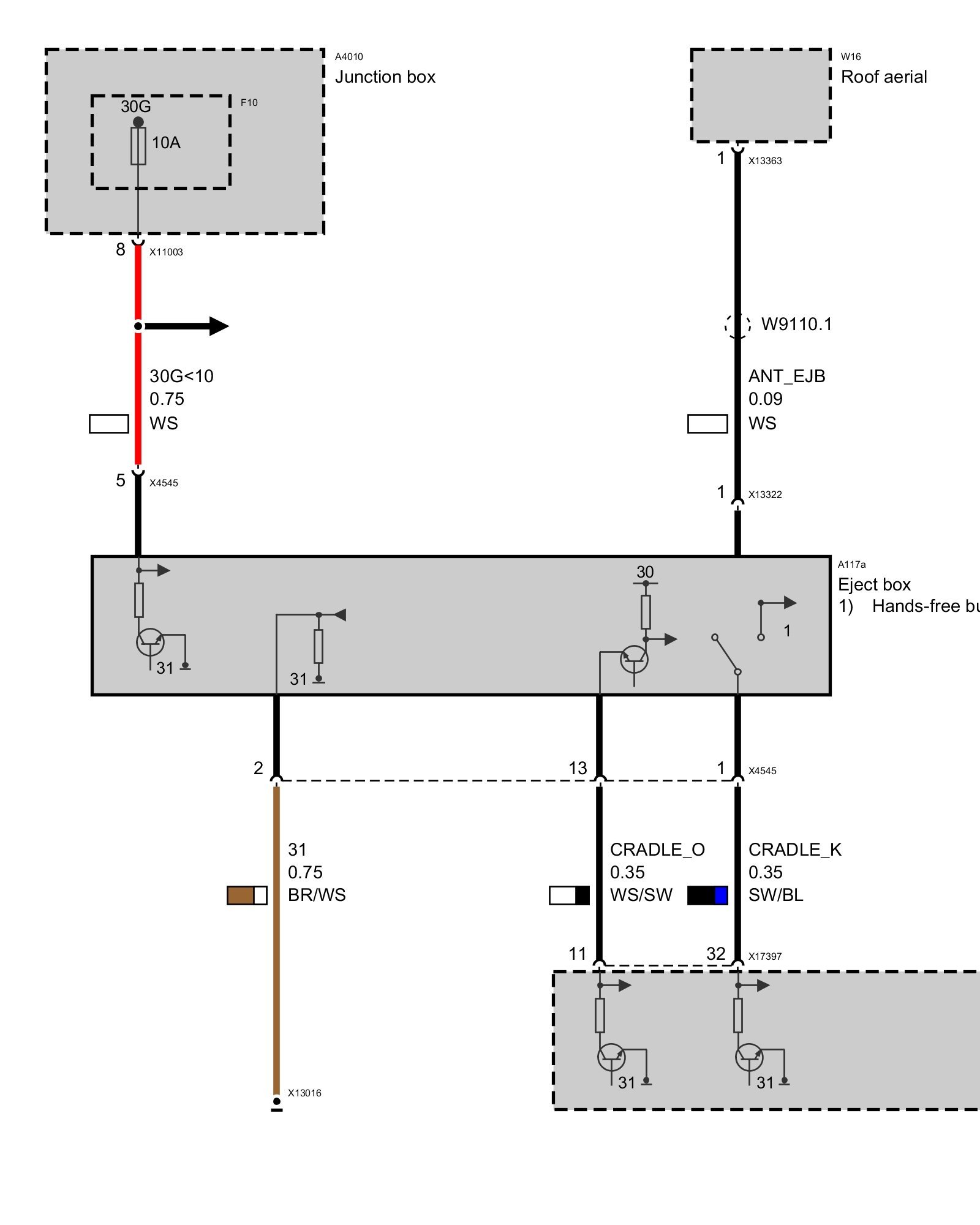

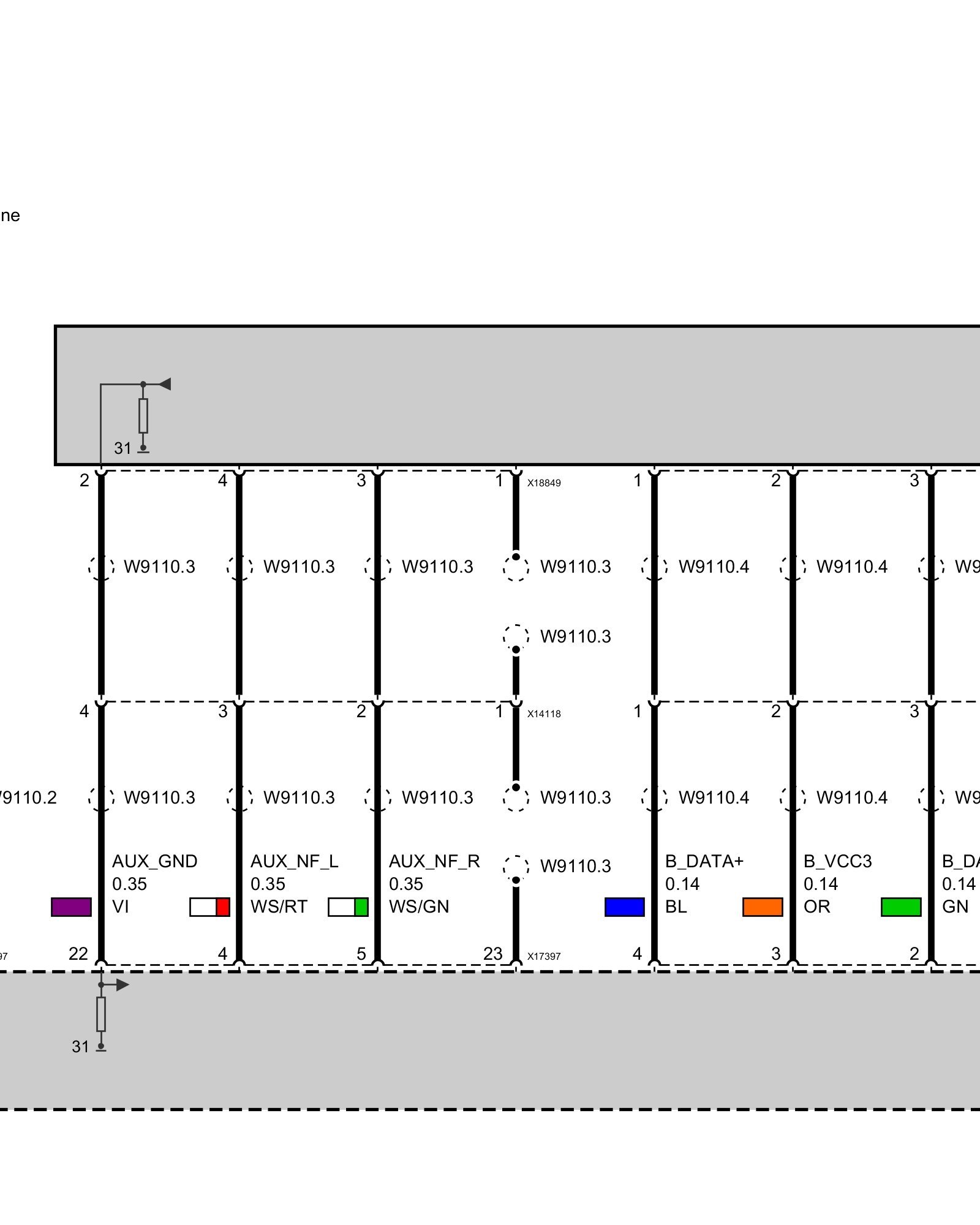

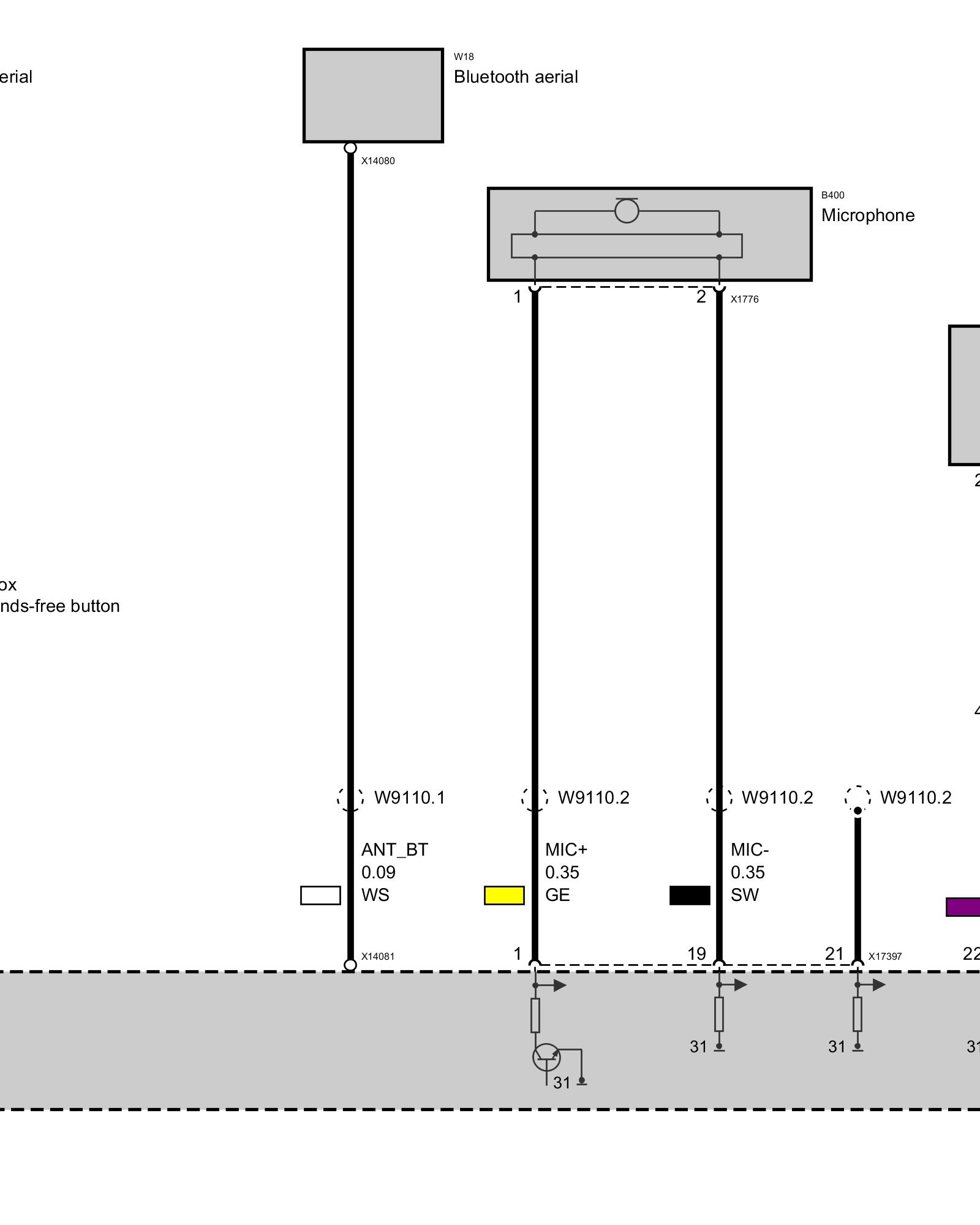

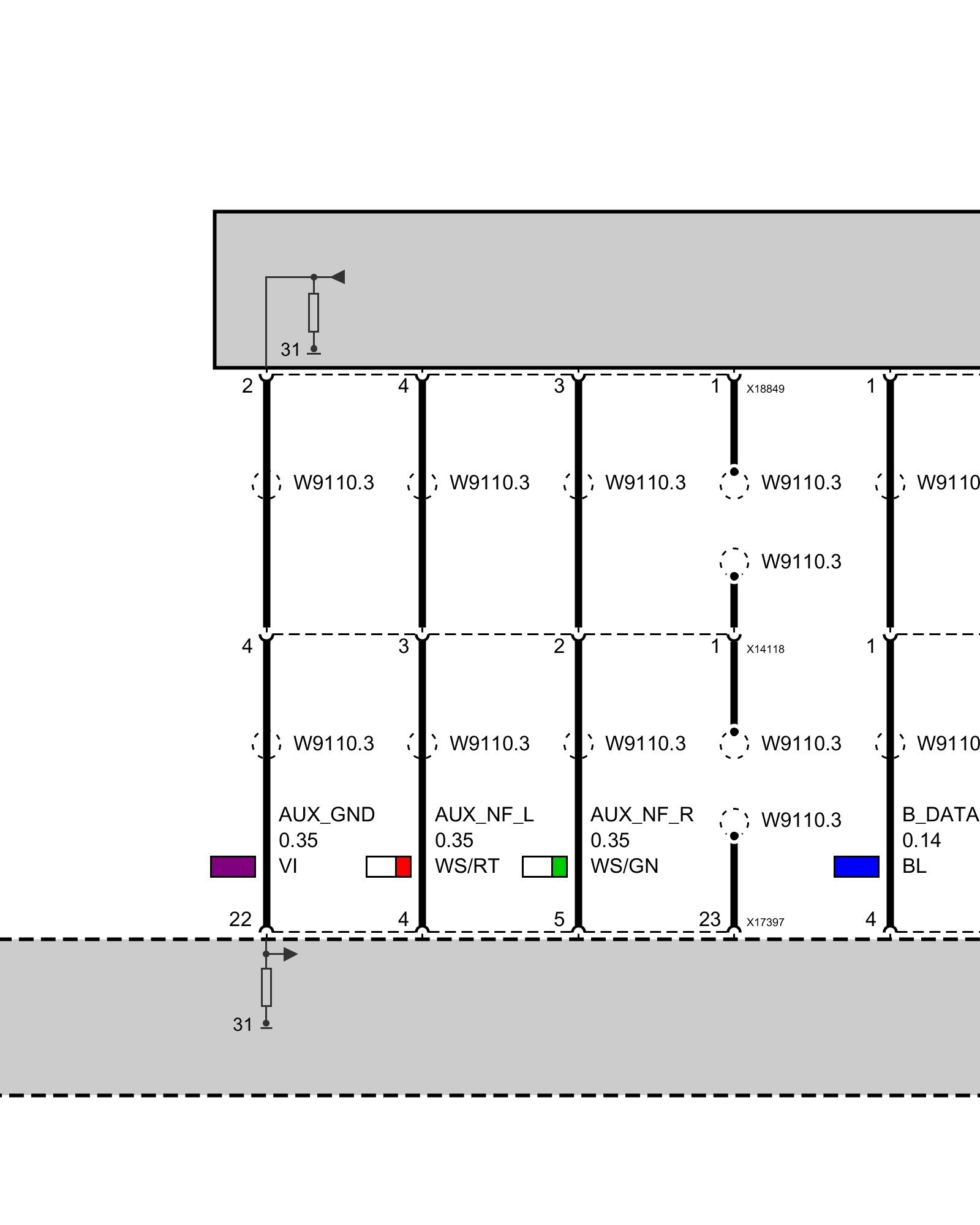

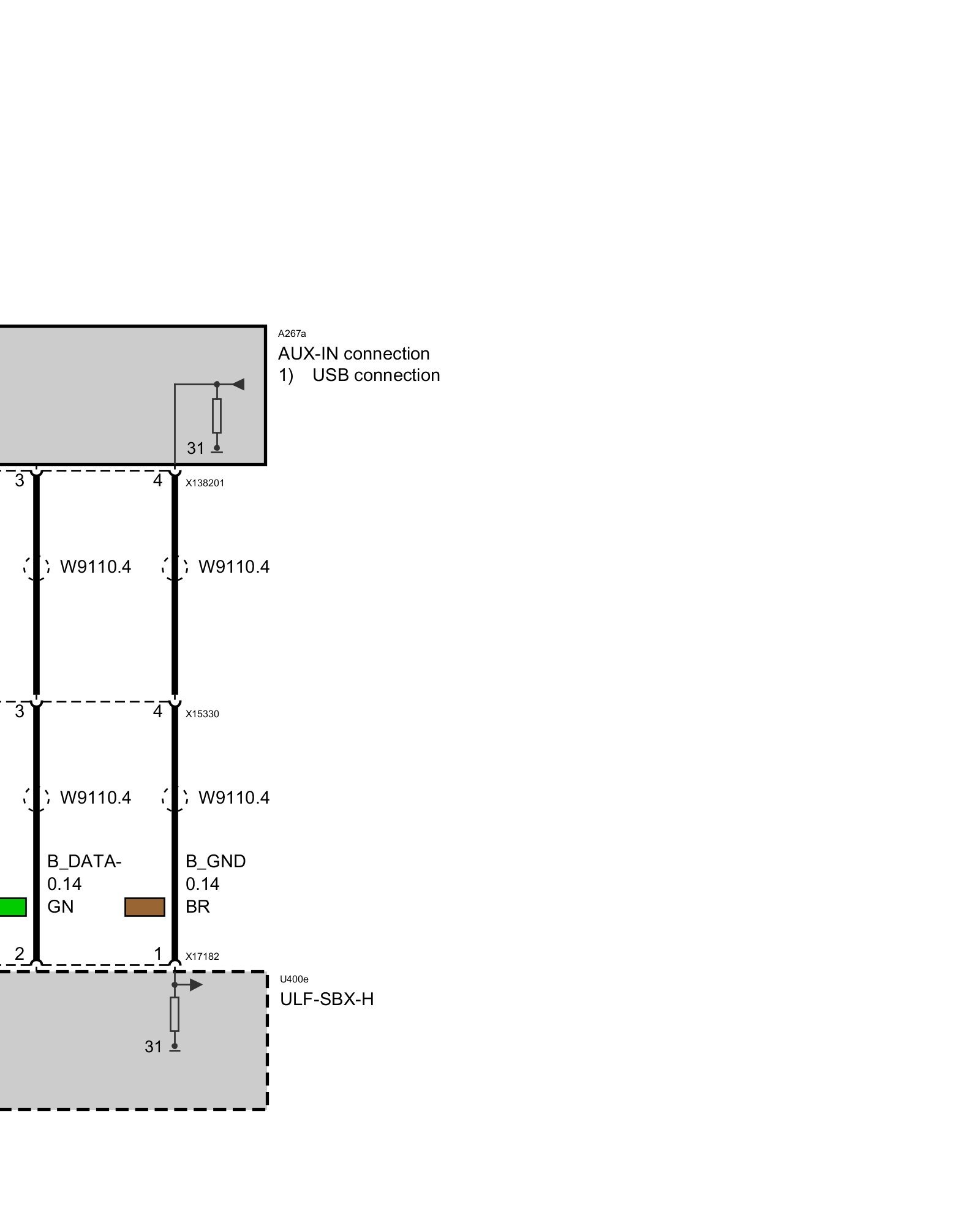

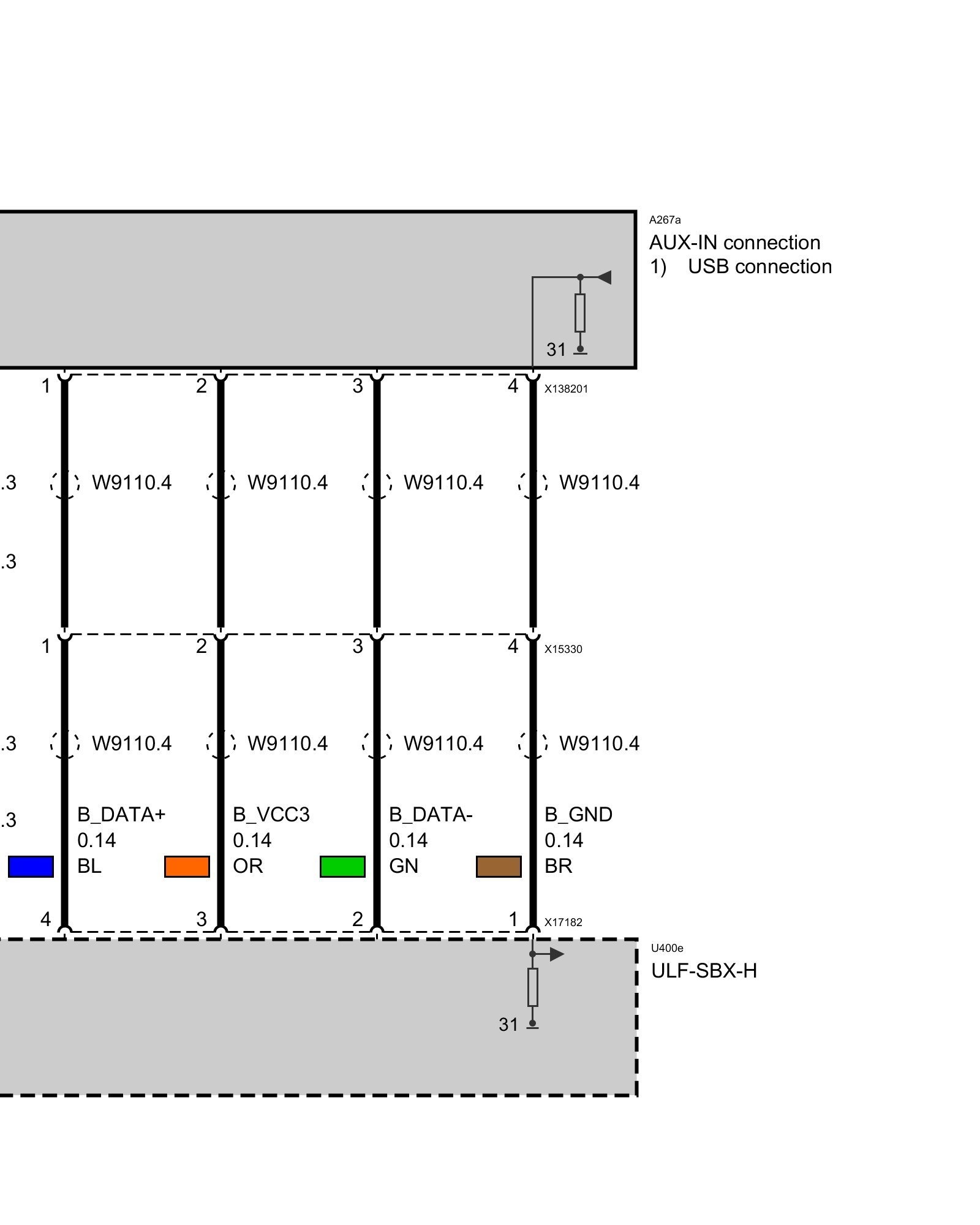

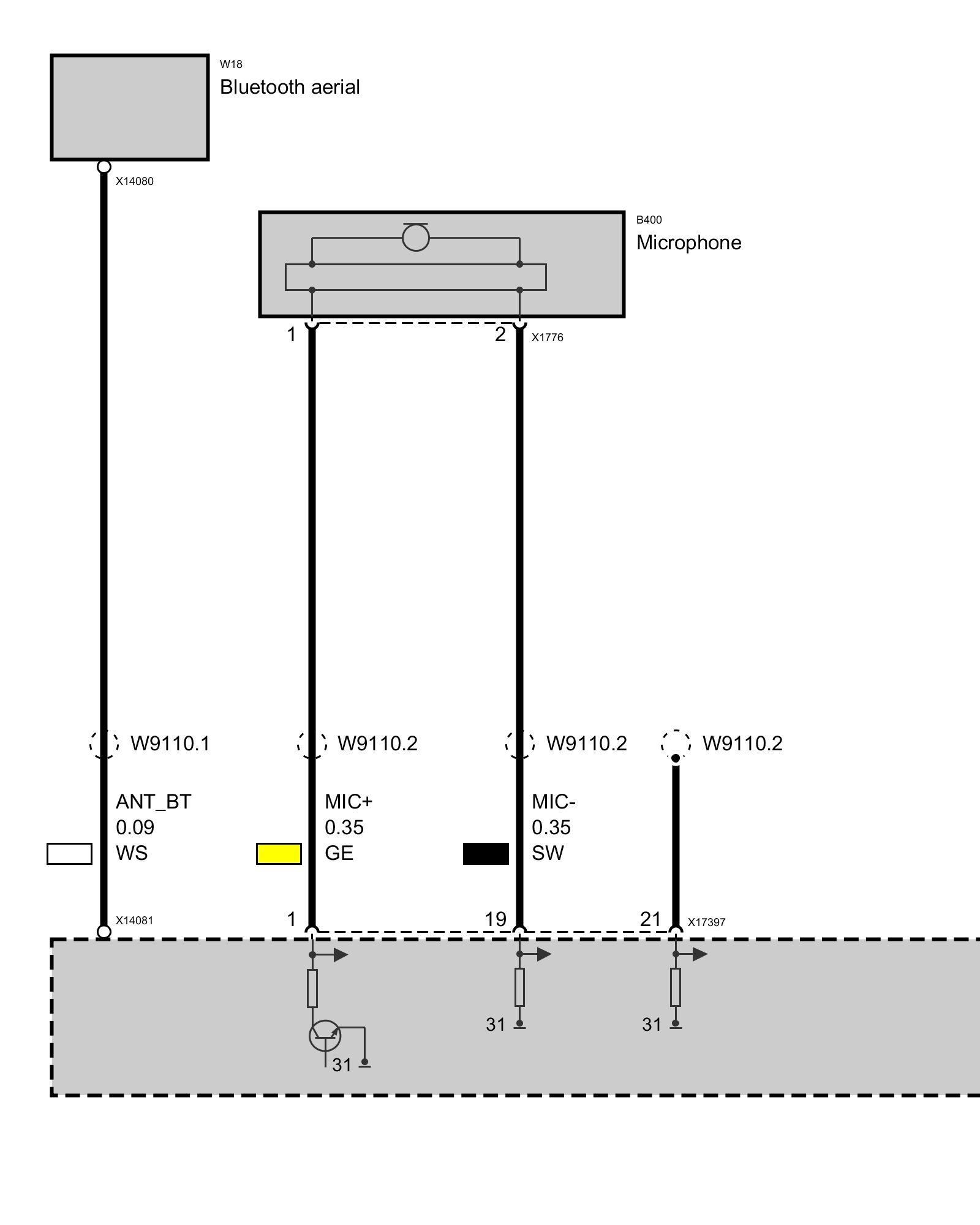

ULF-SBX-H Interface Box High
ULF-SBX-H Interface Box High
ULF-SBX-H Interface Box High
