Operation CHARM: Car repair manuals for everyone.

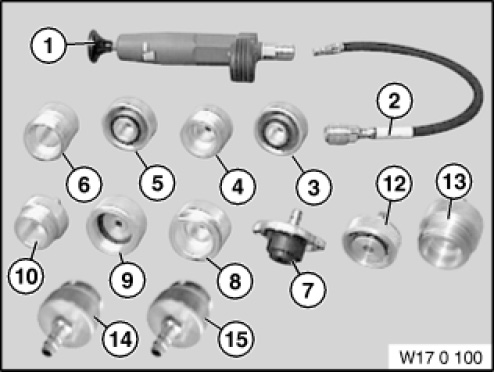

17 0 100 Tester



17 0 100 Tester

0494417

Minimum set: Mechanical tools
MW







NOTE: For checking engine cooling system on watertightness. For checking radiator cap. [Released]

SI number: 01 07 02 (884)

Consisting of:

1 = 0494418 Pump

NOTE: [Released]

2 = 0494419 Hose

NOTE: (Hose with quick-release coupling) [Released]

3 = 0494420 Adapter

NOTE: For radiator cap (normal thread) [Released]

4 = 0494421 Adapter

NOTE: For radiator cap (normal thread) [Released]

5 = 0494422 Adapter

NOTE: For radiator cap (sawtooth thread) [Released]

6 = 0494423 Adapter

NOTE: For radiator cap (sawtooth thread) [Released]

7 = 0494424 Adapter

NOTE: For radiator cap R50 / W10 [Released]

8 = 0494425 Adapter

NOTE: For radiator cap R50 / W10 [Released]

9 = 0494426 Adapter

NOTE: For radiator connection R53/W11, R50/W17 adapter corresponds to 17 0 051 [Released]

10 = 0494427 Adapter

NOTE: For radiator cap R53/W11, R50/W17 adapter corresponds to 17 0 052 [Released]

11 = 0494428 Case

NOTE: [Released]

12 = 0494642 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988) [Released]

13 = 0494643 Adapter

NOTE: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988) [Released]

14 = 0495889 Adapter

NOTE: For radiator cap Model series: N12, N14 [Released]
