51 45 ... Removing and Installing/Replacing Side Cover From Cover For Air Outlet Vent

51 45 ... Removing And Installing/Replacing Side Cover From Cover For Air Outlet Vent

Special tools required:

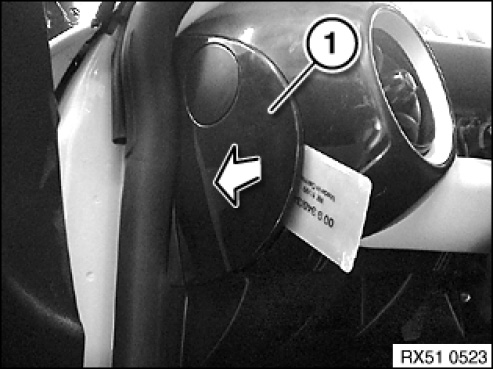

Unclip cover (1) with special tool 00 9 340 in direction of arrow.
If necessary, disconnect associated plug connection.

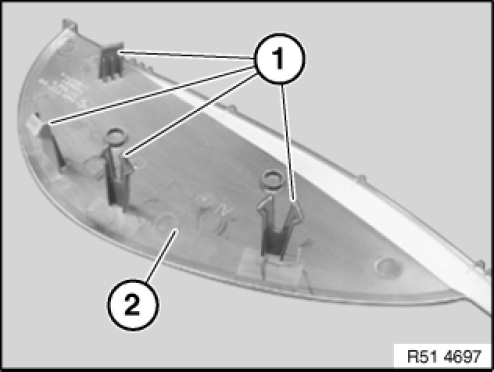

Catches (1) of cover (2) must not be damaged.

Replacement:
If necessary, remove switch for passenger airbag deactivation.
