51 45 435 Removing and Installing/Replacing Cover For Instruments

51 45 435 Removing And Installing/Replacing Cover For Instruments







Necessary preliminary tasks:
- Remove decorative strip on instrument panel on left
- Remove decorative strip on instrument panel on right

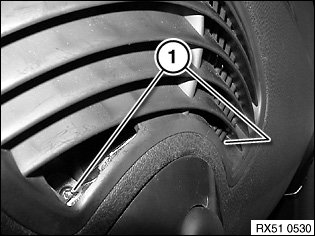

Unclip covers for air outlet vent (1).

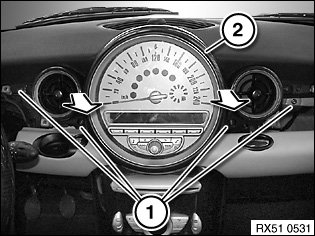

Release screws (1).







Release screws (1).
Remove cover for instruments (2) in direction of arrow.

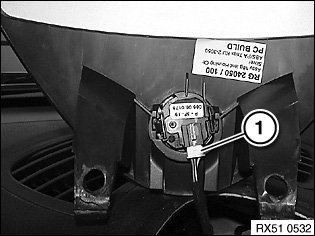

Disconnect plug connection (1).

Replacement:
Remove switch for hazard warning flashers.
