Home >> Mini >> 2008 >> Cooper (R56) L4-1.6L (N12) >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Front Fog Lights and Rear Fog Lights

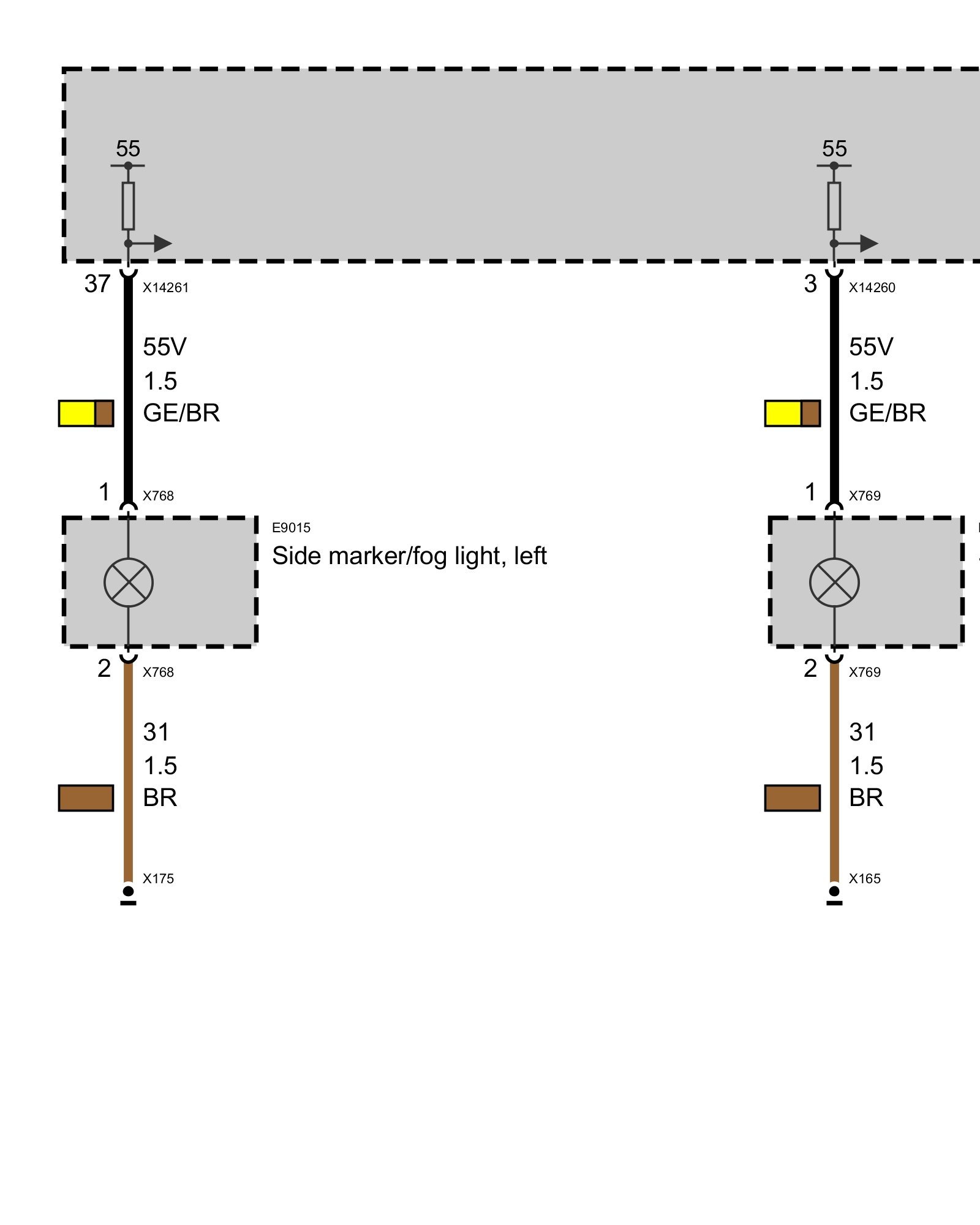

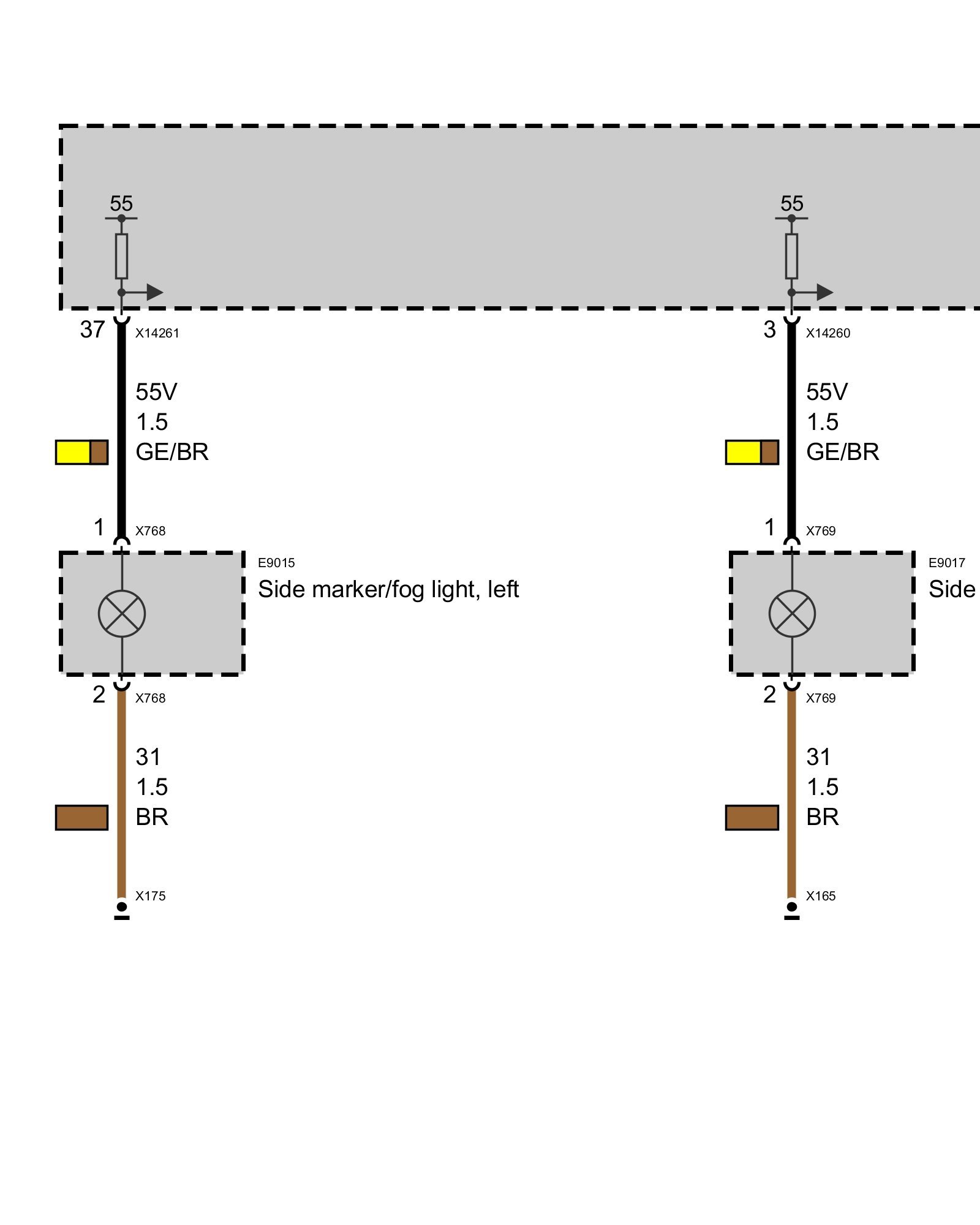

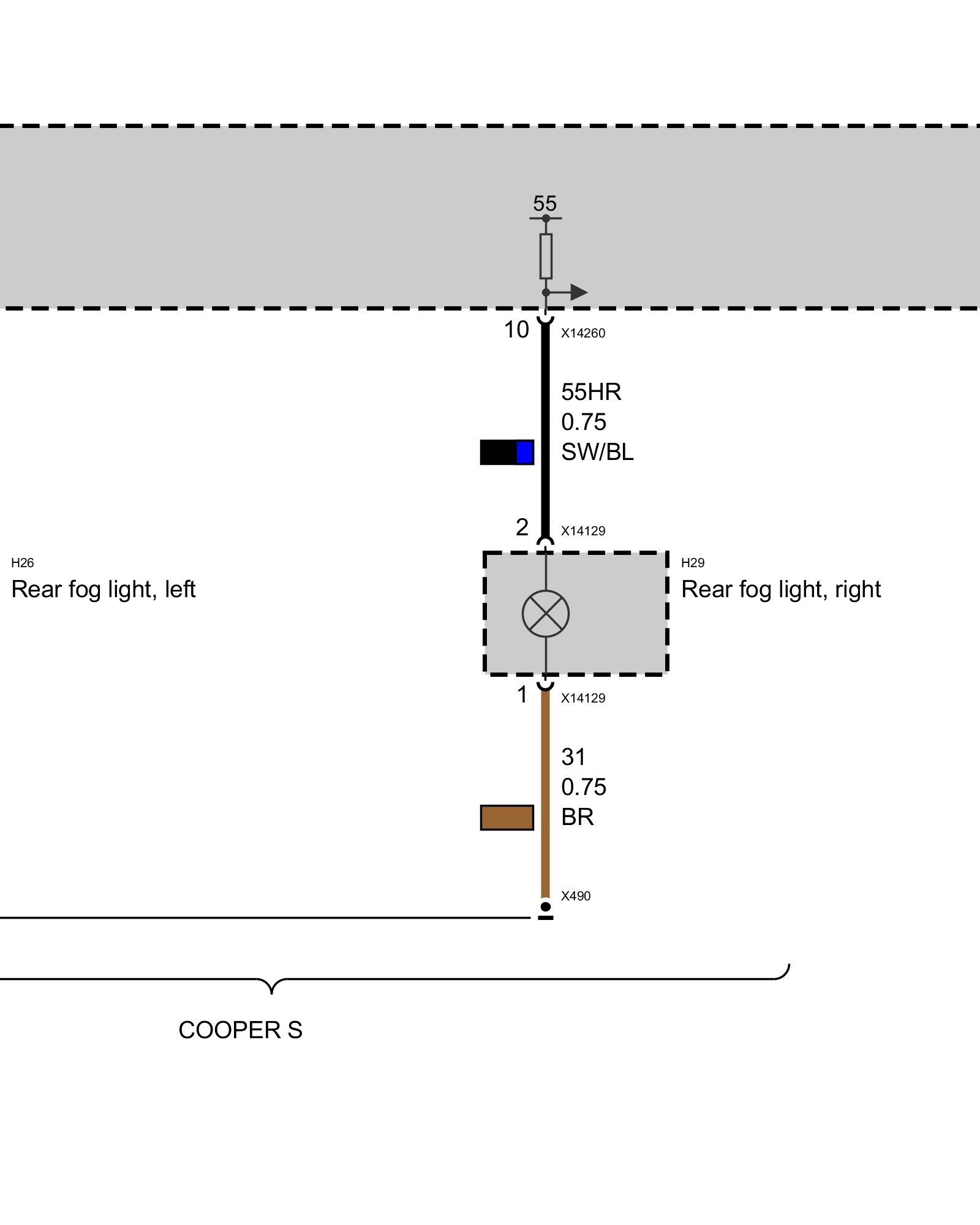

Front Fog Lights and Rear Fog Lights



Front Fog Lights And Rear Fog Lights
