63 12 007 Removing and Installing/Replacing Left or Right Headlight (Halogen Headlight)

63 12 007 Removing and installing/replacing left or right headlight (halogen headlight)







WARNING: Follow instructions for handling light bulbs (exterior lights).







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

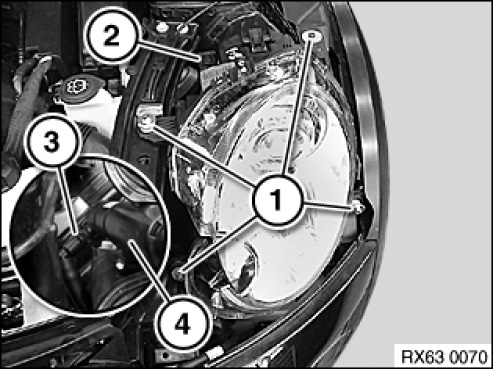

Release screws (1). Tightening torque 63 12 1AZ.
Disconnect plug connection (2).
Version with headlight cleaning system:
- Pull headlight forwards slightly and disconnect hose connection (3) from high-pressure nozzle (4)
Remove headlight.







Installation note:

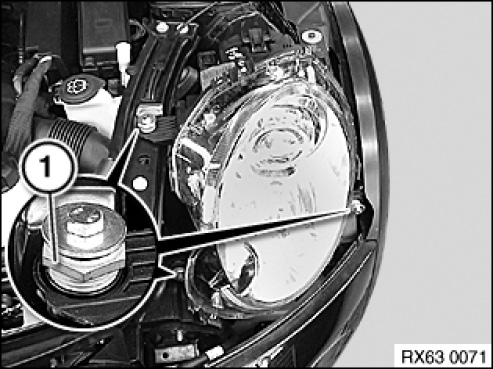

- Adjust gap dimensions by means of adjusting screws (1)
- Adjust headlights







Replacement:
- Retrofit halogen bulb in headlights
- Retrofit halogen bulb in high beam headlights
- Modify bulb for turn indicator
- If necessary, modify high-pressure nozzle of headlight cleaning system
- Modify adjusting screws
