63 14 020 Removing and Installing/Replacing Front Left or Right Side Marker Lamp

63 14 020 Removing And Installing/Replacing Front Left Or Right Side Marker Lamp







WARNING:
Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Partially remove front wheel arch cover

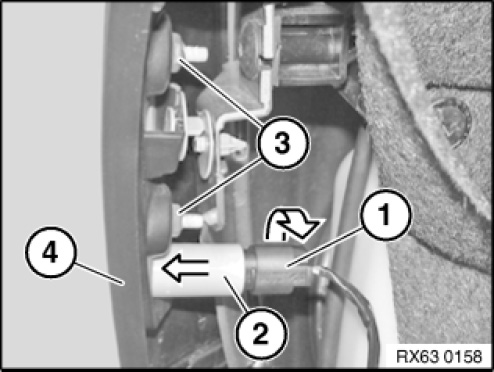

Turn bulb holder (1) in direction of arrow and pull out of side marker lamp (2).
Unscrew nuts (3).
Remove side marker lamp (2) in direction
of arrow from wheel arch trim (4).

Installation:
Make sure sealing ring is correctly seated on bulb holder (1).
Make sure bulb holder (1) is correctly engaged on side marker lamp (2).
