36 11 121 Removing and Installing/Replacing an RDC Trigger Transmitter (Front)

36 11 121 Removing And Installing/Replacing An RDC Trigger Transmitter (Front)







Necessary preliminary tasks:
- Remove front wheel arch panel

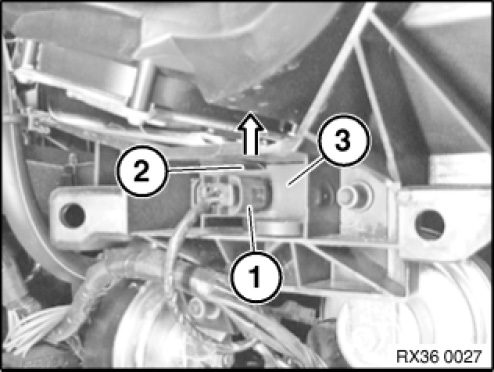

Disconnect plug connection (1).
Press tab (2) in direction of arrow and remove RDC sensor (3).
