16 14 080 Replacing Fuel Level Sensor (on Fuel Pump, 50-Litre Tank)

16 14 080 Replacing Fuel Level Sensor (on Fuel Pump, 50-litre Tank)







Necessary preliminary tasks:
- Remove fuel pump with fuel level sensor

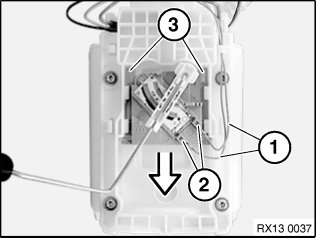

Detach lines (1) at retaining lugs (2)

Installation:
Make sure lines (1) are correctly engaged in retaining lugs (2).
Release fuel level sensor from hooks (3) and pull off downwards.
