31 5 250 Universal Axle Bracket

31 5 250 Universal axle bracket





In conjunction with: 00 2 030

Note: For accommodating all front and rear axles during removal and installation.

SI number: 1 24 06(309)

Order number: 31 5 250

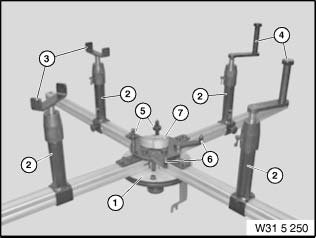

Universal axle bracket

Consisting of:

1 = 31 5 251 Basic unit

2 = 31 5 252 Telescopic supports (4 x)

3 = 31 5 253 Mounting adapter, U-profile (2 x)

4 = 31 5 254 Mounting adapter (2 x)

5 = 31 5 255 Mounting adapter for bores (2 x)

6 = 31 5 256 Mounting adapter for bores (2 x)

7 = 31 5 257 Tensioning strap
