Body - Sunroof Malfunctions/Battery Discharged
SI M54 01 08Body Equipment
January 2008
Technical Service
SUBJECT
Sunroof Does Not Operate Properly or the Battery is Discharged
MODEL
R56 (Cooper, Cooper S)
SITUATION
If a vehicle is not programmed and coded after the SHD (sunroof control module) is replaced, the sunroof may not operate properly or may discharge the battery.
CAUSE
When a new SHD is installed and not programmed, it can cause an amperage draw and/or various operational problems with the sunroof.
CORRECTION
Update the vehicle with the most recent Progman version.
PROCEDURE
Program and code the vehicle with the most recent Progman version. Refer to SI M09 01 07 (Programming and Coding with Progman), Procedure B.
Note that Progman will automatically reprogram all programmable control modules that do not have the latest software.

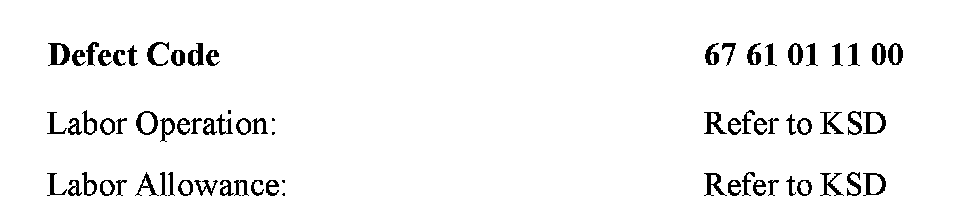

WARRANTY INFORMATION
Covered under the terms of the MINI New Vehicle Limited Warranty.
