24 4 130 Locating Tool

24 4 130 Locating tool

Minimum set: Mechanical tools





Note: For firmly holding torque converter in position while removing and installing transmission

Transmission: A4S 310R, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 440Z, A5S 560Z, GA6 HP26Z

Storage location: A33

SI number: 1 05 97(181)

Order number: 24 4 130

Locating tool

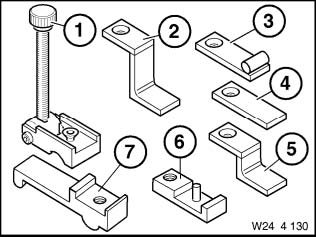

Consisting of:

1 = 24 4 131 Base unit

2 = 24 4 132 Blade

Note: Transmission: A5S 440Z, GA6HP26Z (N62)

3 = 24 4 133 Blade

Note: Transmission: A4S 310R and A5S 390G

4 = 24 4 134 Blade

Note: Transmission: A5S 310Z, A5S 560Z, A5S 300J and A5S 325Z

5 = 24 4 135 Blade

Note: Transmission: A5S 560Z, GA6 HP26Z (M67), GA6 HP32Z (N73)

6 = 24 4 136 Counter plate

7 = 24 4 137 Blade

Note: Transmission: A5S 360R
