24 5 260 Extractor Tool

24 5 260 Extractor tool

Minimum set: Mechanical tools





Note: For removing rotary shaft seal of selector shaft / transmission with position switch

Transmission: A5S 310Z, A5S 440Z, A5S 560Z

Storage location: B19

SI number: 1 02 95(896)

Order number: 24 5 260

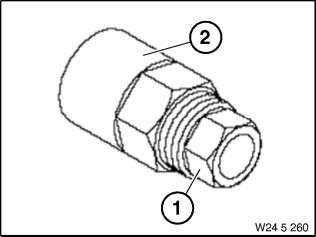

Extractor tool

Consisting of:

1 = 24 5 261 Insert

2 = 24 5 262 Bushing
