Home
>>
Mini
>>
2008
>>
Cooper (R56) L4-1.6L (N12)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>

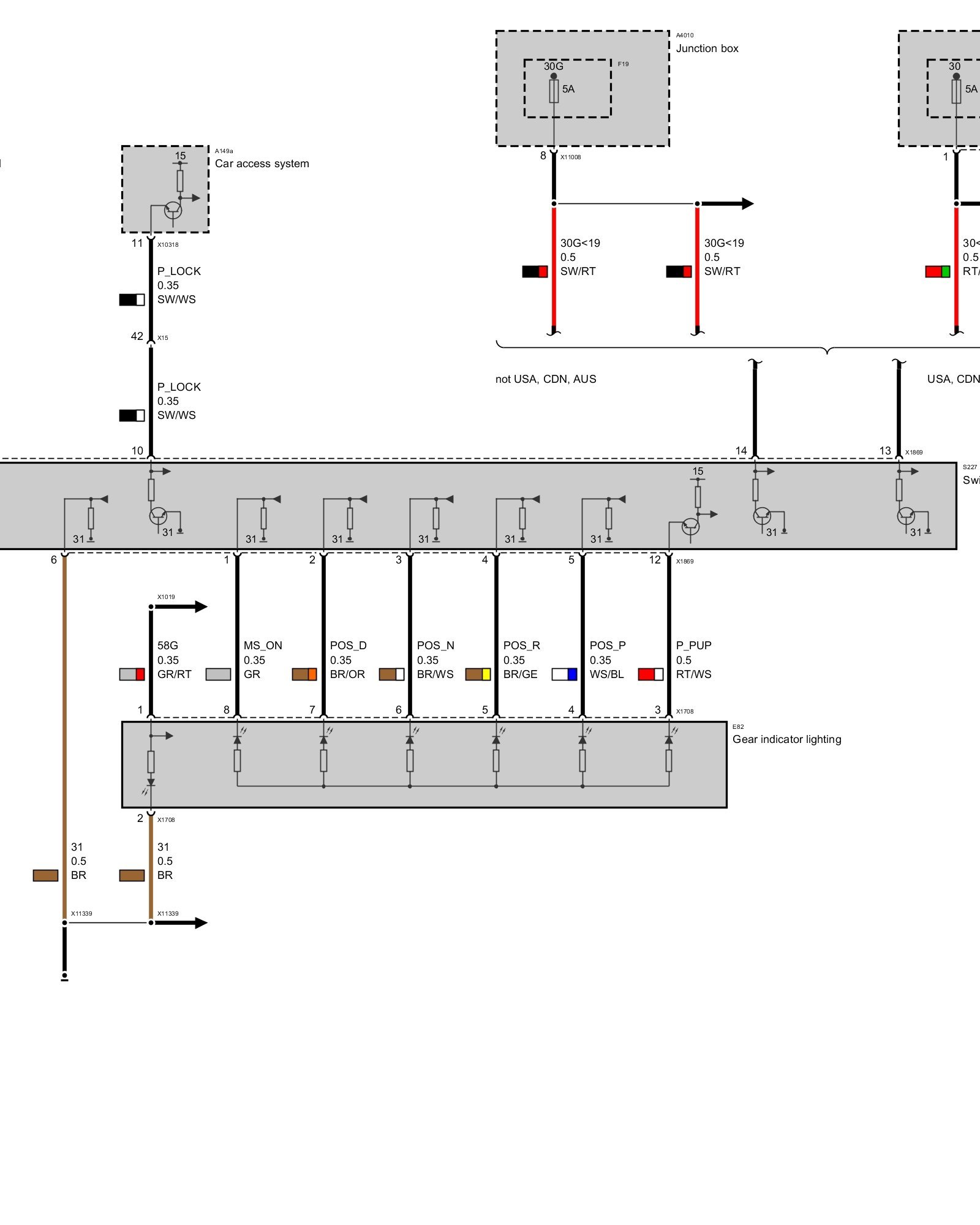

Electrical Diagrams
>>
Controls
Controls
Controls
