Guide Pin, Door Trim Panel

Guide Pin, Door Trim Panel

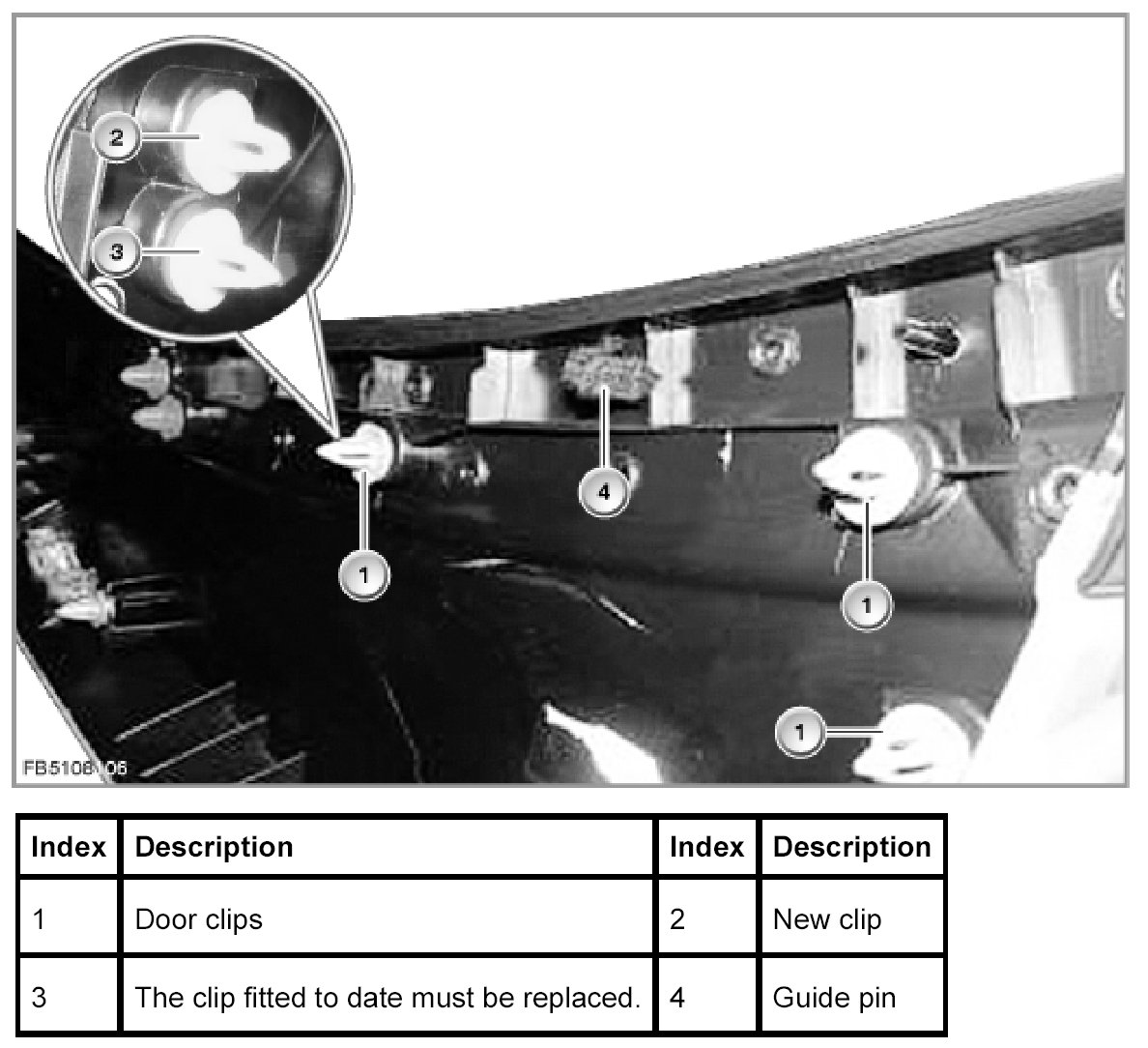

Repair instruction for guide pin rattling on the door trim panel
If the guide pin on the door trim panel has too much play in the bracket on the door, a rattling noise can occur.

Repair instruction

1. Remove door trim panel
2. Cover the guide pin with a little adhesive tape.
