Wiring Harness

Wiring Harness

Repair instruction for loose wiring harness

Cause

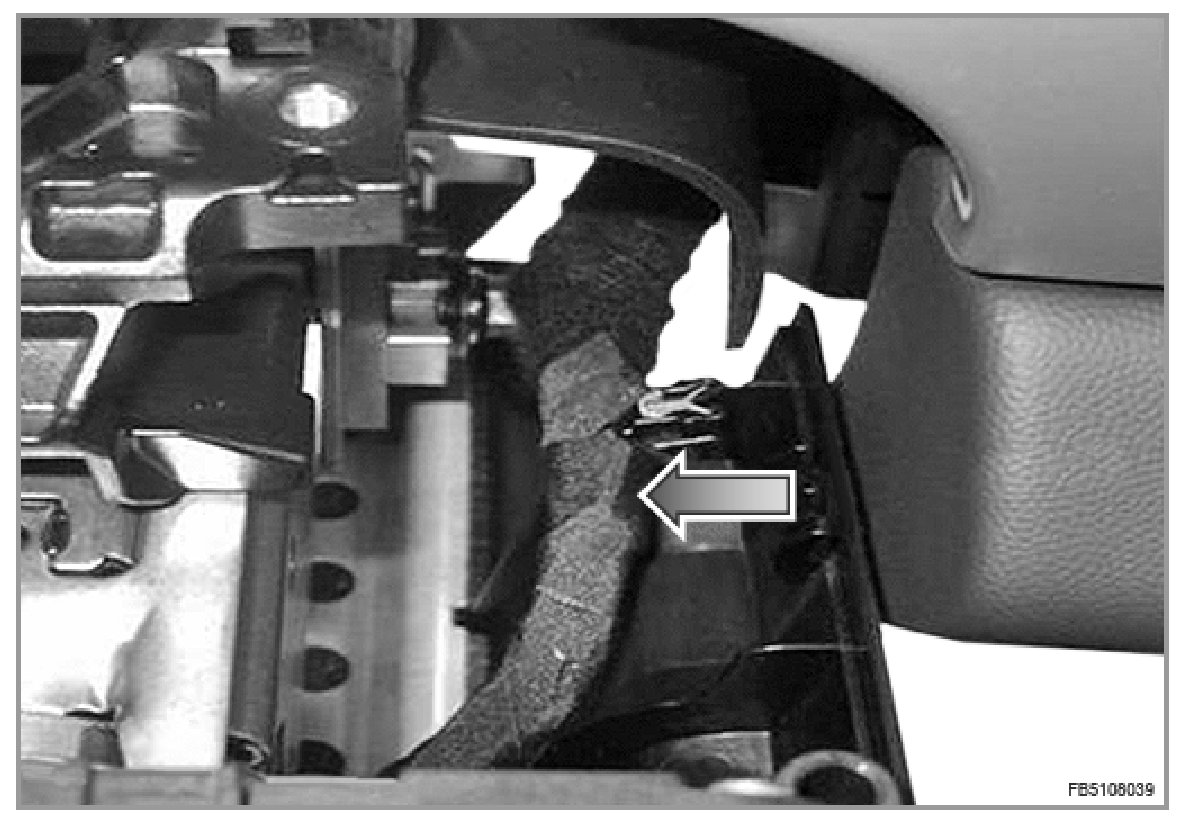

The wiring harness is not secured to the lower steering column trim, see illustration.

Repair instruction
- Remove the lower steering column trim
- Clip the wiring harness into the appropriate mount (arrow)
- Refit the lower steering column trim

NOTE: Ensure the lower steering column trim is correctly mounted.

Wiring harness loose
