32 33 010 Removing and Installing/Replacing Sport Steering Wheel
32 33 010 - Removing and installing/replacing sport steering wheel/steering wheel
Note:
Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks:
- Remove airbag unit
Move wheels/steering wheel into straight-ahead position.

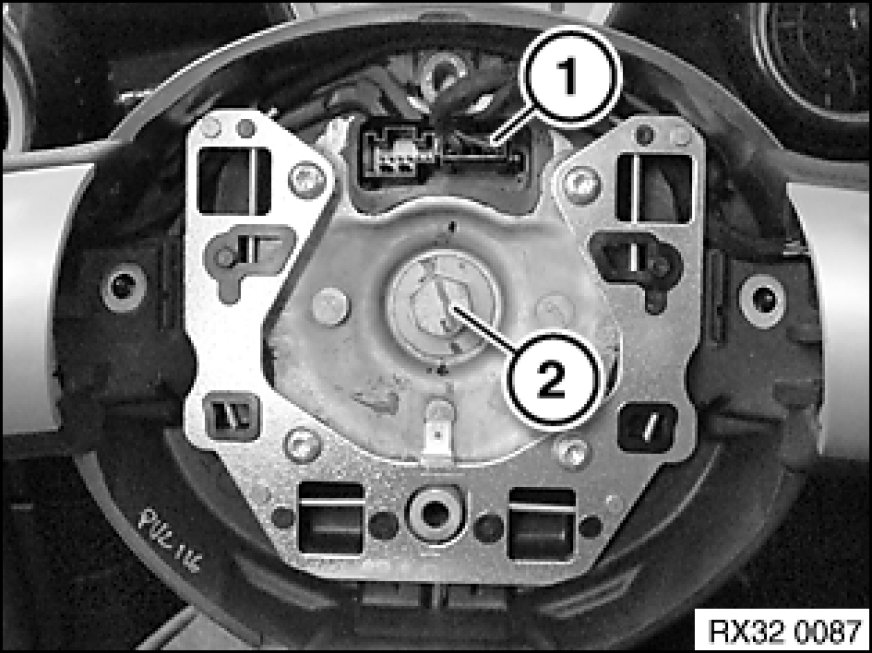

Disconnect plug connection (1).
Release screw (2) and remove sport steering wheel.
Installation:
Make sure connecting lead(s) is/are correctly laid.
Tightening torque 32 33 1AZ [1][2]32 33 Steering Wheel.
Replacement:
- If necessary, modify shift paddles 61 31 113 Removing and Installing/Replacing Both Shift Paddles For Automatic Transmission
- Modify multifunction steering wheel switches/spoke covers
- Modify lower sport steering wheel trim 32 33 ... Replacing Lower Sport Steering Wheel Trim
