Passenger's Seat Occupancy Detection

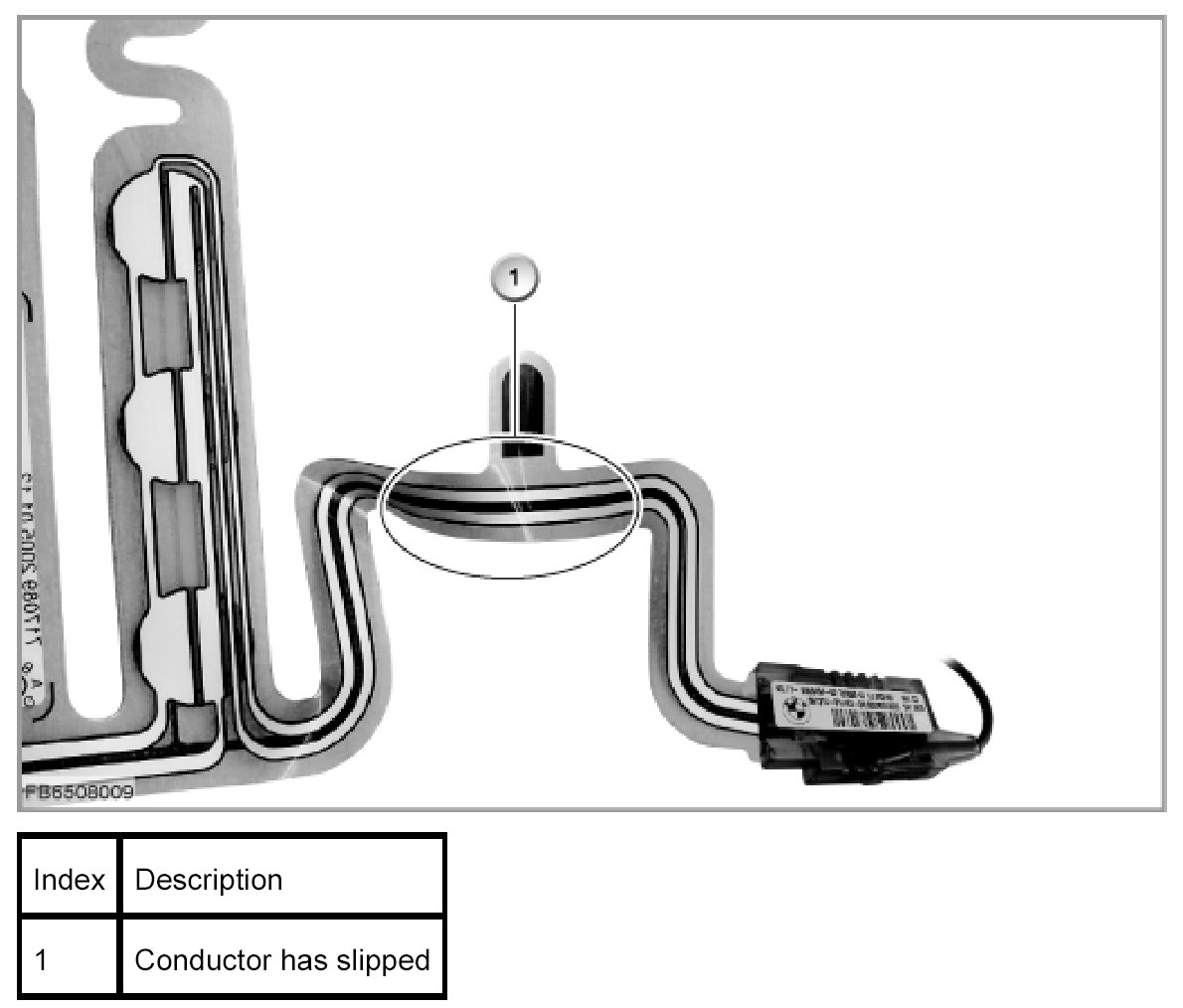

Fig. 1: Conductor in front of electronics has slipped

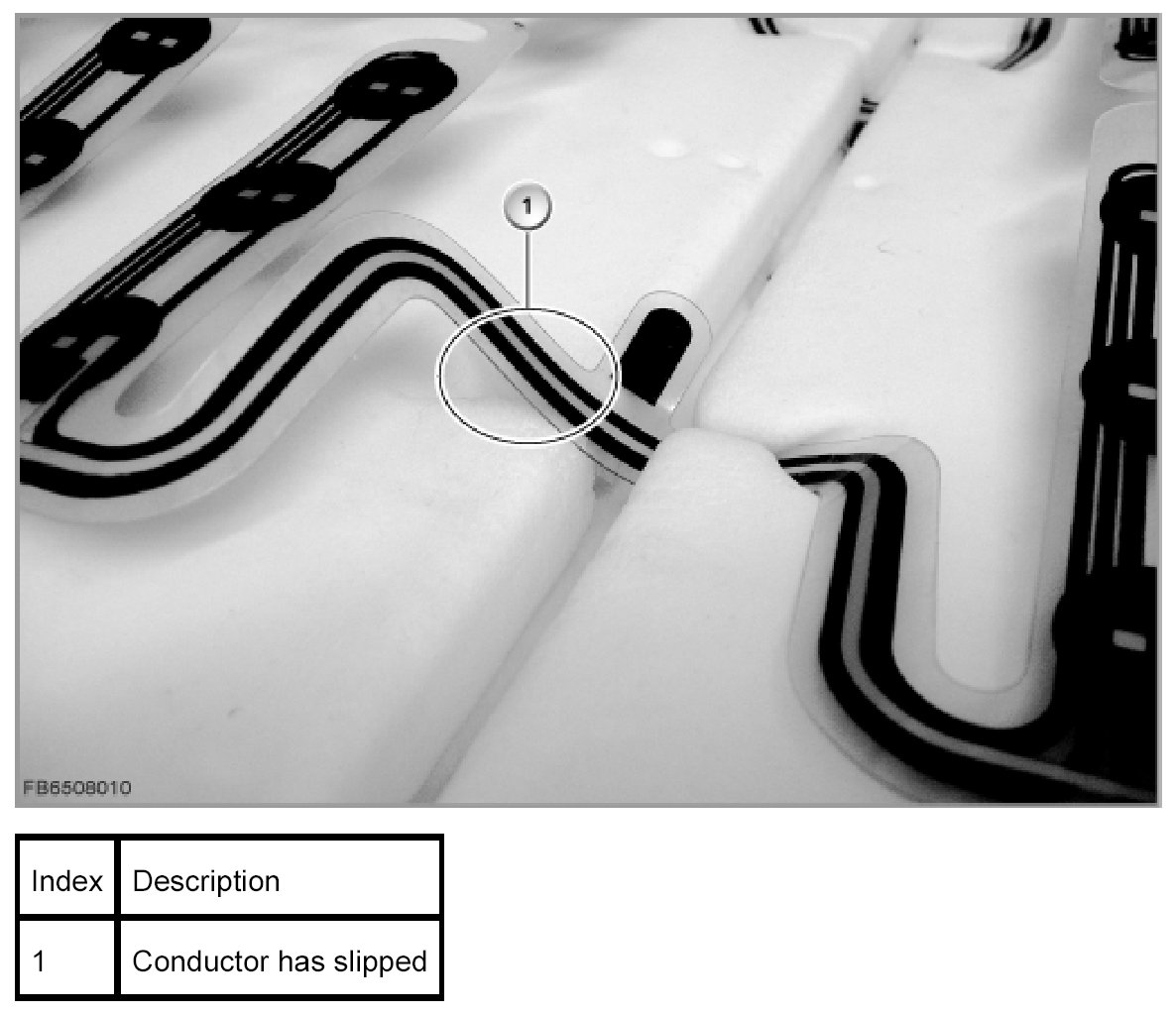

Fig. 2: Conductor tracks on transverse seams slipped

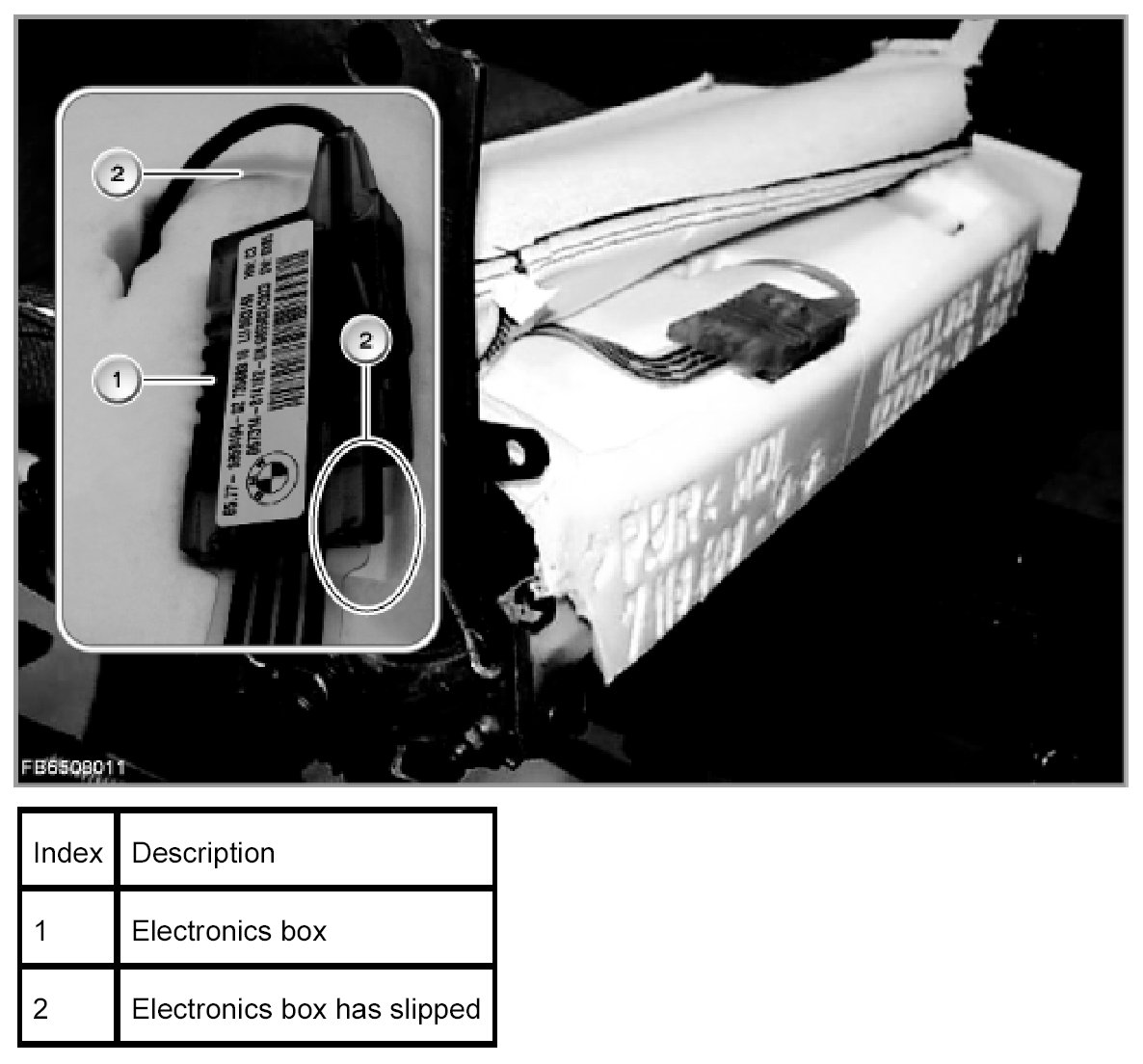

Fig. 3: Cast electronics box is displaced or raised

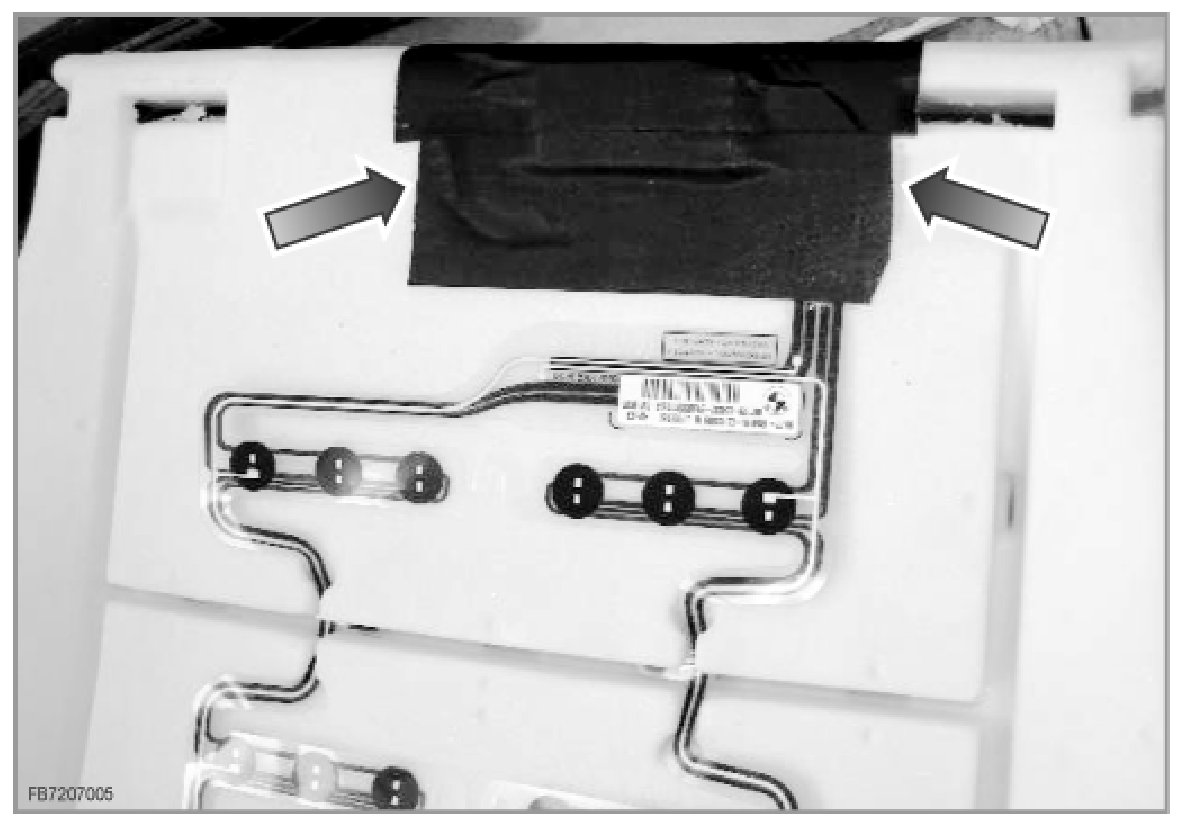

Fig. 4: Use cloth adhesive tape to attach the electronic component into the recess of the seat cushion

Fig. 5: Seat occupation mat is kinked

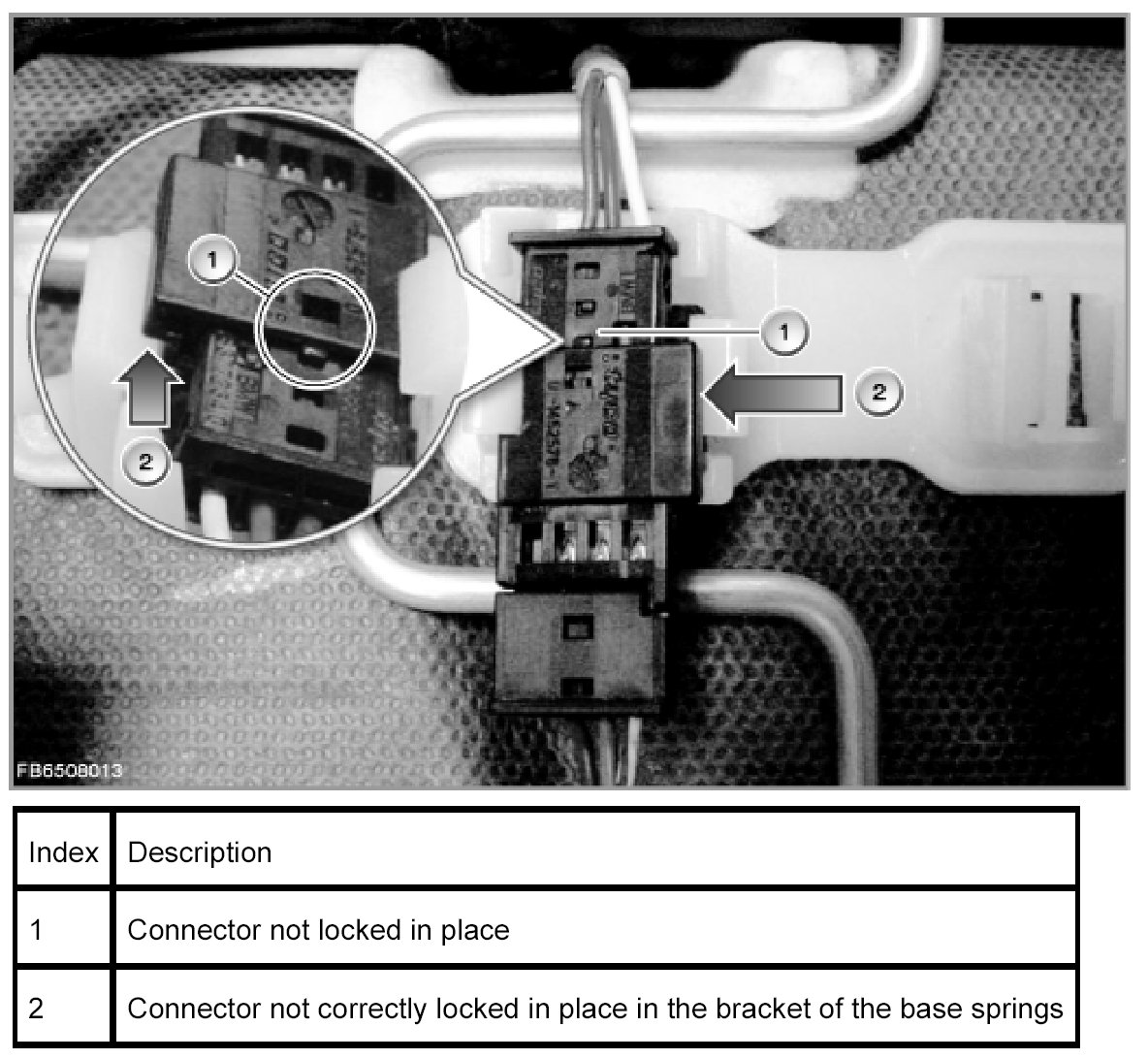

Fig. 6: connector not correctly snapped in and not correctly locked in the bracket of the base springs

Fig. 7: connector correctly snapped in and correctly locked in the bracket of the base springs

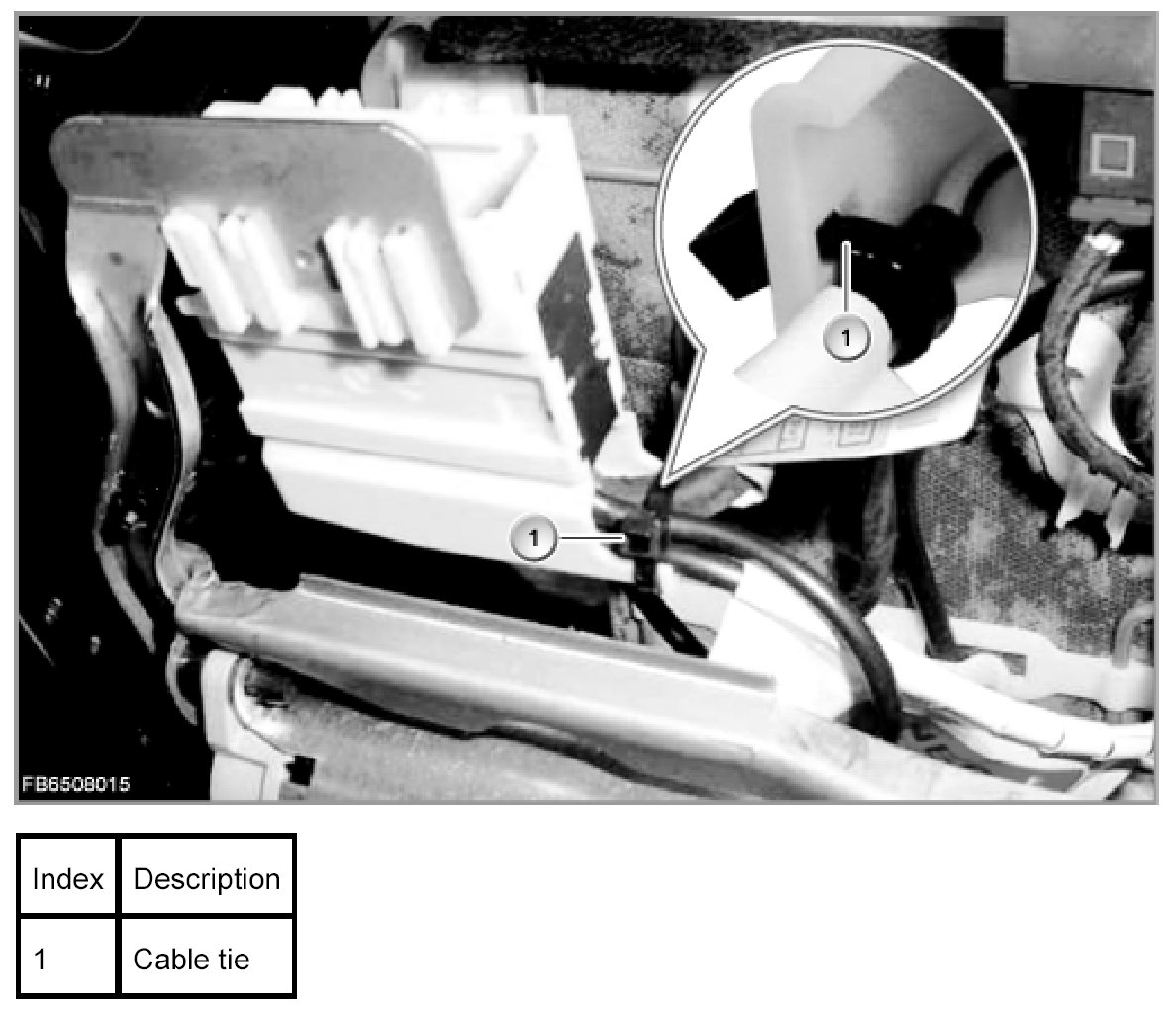

Fig. 8: Secure the central seat connector with cable ties

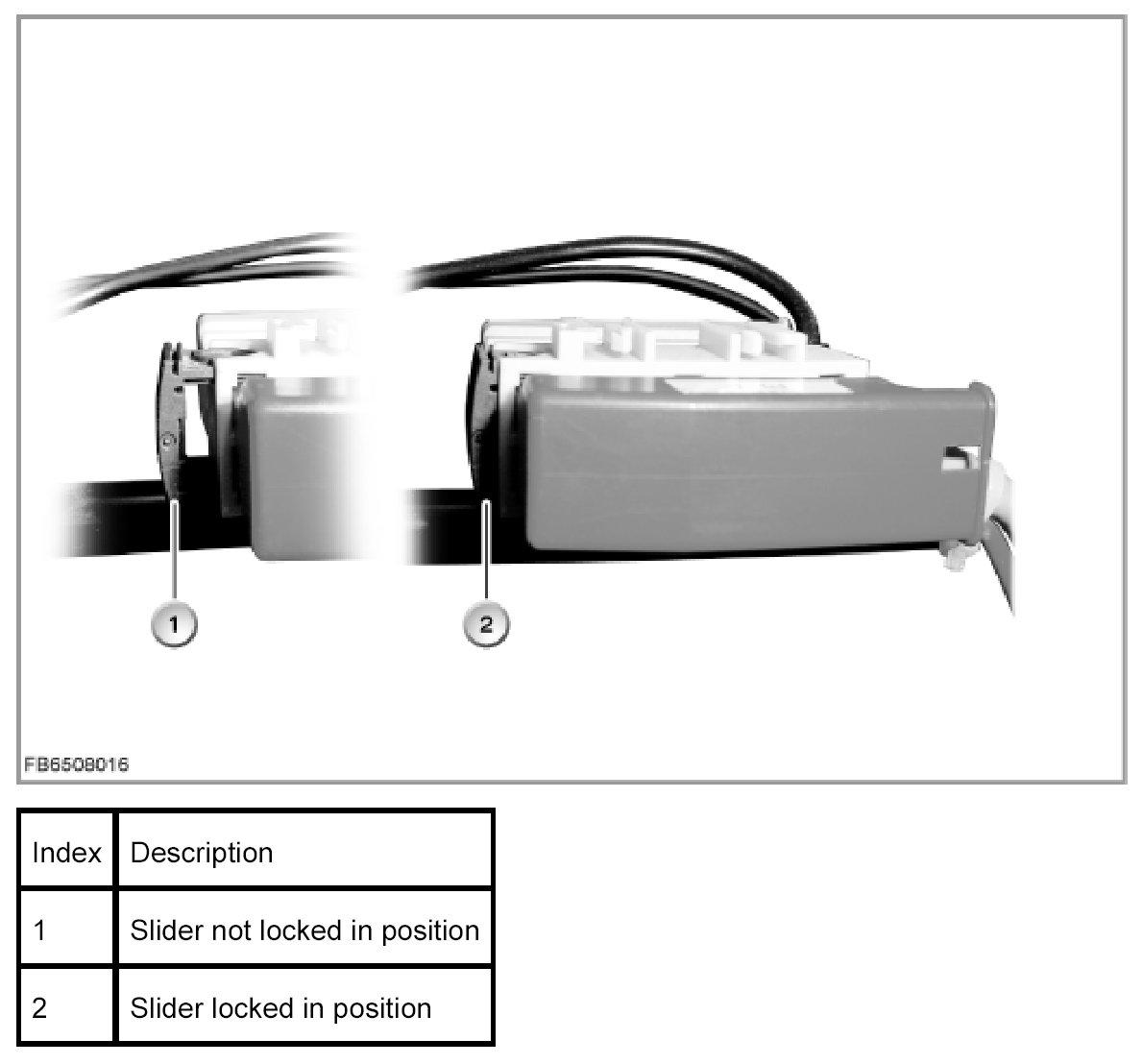

Fig. 9: Locking of central seat connector
