51 16 196 Removing and Installing/Replacing Cover (Armrest) For Centre Armrest

51 16 196 Removing and installing/replacing cover (armrest) for centre armrest

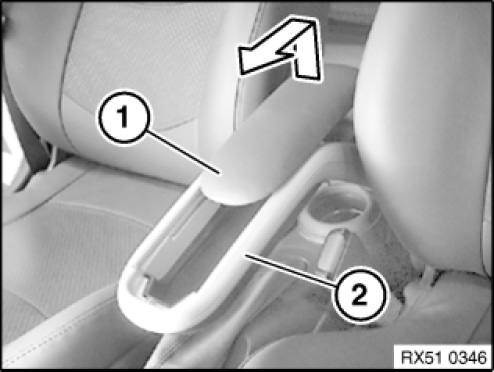

Slide cover (1) towards rear and snap at rear in direction of arrow out of centre armrest (2).
Remove cover (1) towards rear.







Installation:

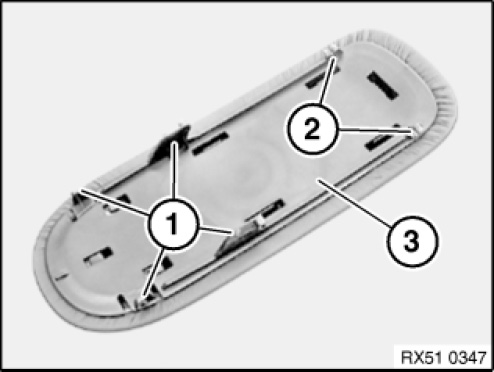

Guides (1) and catches (2) on cover (3) must not be damaged.
