54 13 002 Adjusting Both Glass Slide/Tilt Sunroof Covers

54 13 002 Adjusting Both Glass Slide/Tilt Sunroof Covers

Special tools required:

NOTE: Make the adjustment with an assitant.

Necessary preliminary work:
- Close glass slide/tilt sunroof completely

If the glass slide/tilt sunroof is outside the adjustment tolerances, adjust as follows:

Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

Adjusting front glass slide/tilt sunroof unit:
Carry out the following step on one side first and then the other (first left, then right or vice versa):

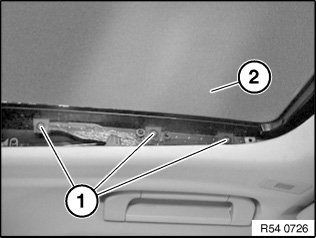

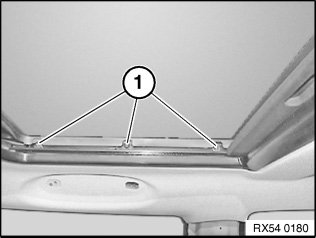

- Loosely screw Torx screws (1) on left/right so that glass roof panel (2) can still be moved.
- Move glass roof panel (2) as required
- Make sure all screws are tightened down.
- Tightening torque 54 12 4AZ.
- Repeat procedure on other side.

Distance setting:

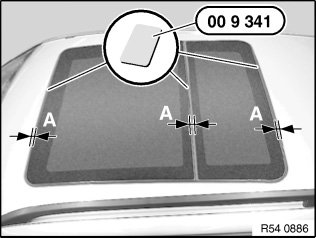

Use special 00 9 340 tool check that the gap between the glass slide/tilt sunroof cover and body is the same.
Slide special tool 00 9 340 or similar between gasket and insert. It must be possible to slide the card against the same level of resistance.
Slide glass slide/tilt sunroof cover towards front or rear until ideal position is reached.

Height adjustment:

NOTE: Front glass slide/tilt sunroof cover must be adjusted first.

Check height of glass slide/tilt sunroof cover (1) in relation to body (2) with special tool 00 9 315.
Press glass slide/tilt sunroof cover (1) at front and rear upwards or downwards until ideal position is reached.

Height:
- Front edge of glass slide/tilt sunroof cover at front 0 to 1 mm under roof edge
- Rear edge of front glass slide/tilt sunroof cover 0 to 0.5 mm above rear glass slide/tilt sunroof cover
- Rear edge of glass slide/tilt sunroof cover 0 to 1 mm above roof edge

Check function and setting.
Carry out initialisation.
