Rev Counter

Revolution Counter

Repair instruction for the revolution counter

Cause

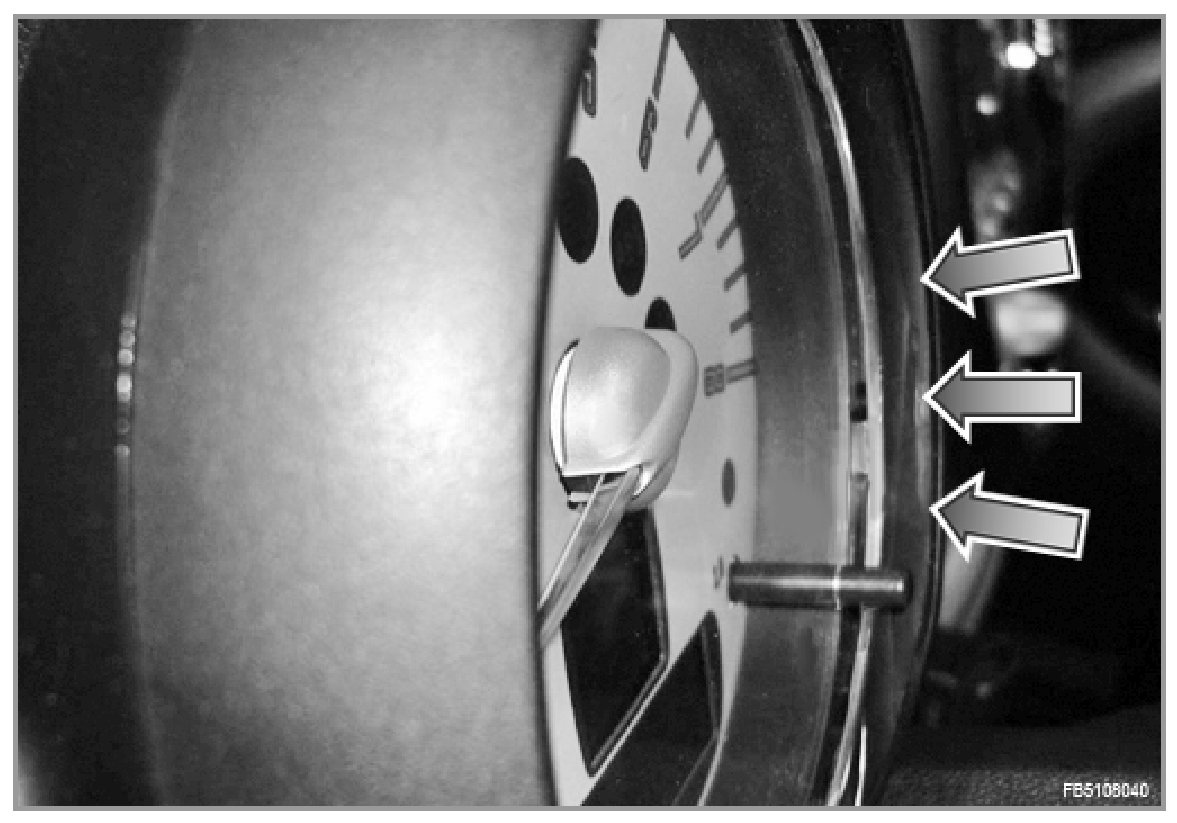

Rattling / buzzing noise from the area of the revolution counter when driving on poor road surface conditions. The noise is cased by loose lock screws. A gap can be seen between the cover and trim panel of the revolution counter, see illustration.

Repair instruction
Tighten the lock screws on the revolution counter.

NOTE: Check the bolt connection of the steering column.

Revolution counter
