A/C, Cooling System - Footwell Area Becomes Hot
SI M 64 02 08Heating and Air Conditioning
May 2010
Technical Service
This Service Information bulletin supersedes SI B M64 02 09 dated June 2008.
[NEW] designates changes to this revision
SUBJECT
Driver Footwell Area Becomes Hot
MODEL
R56 (Cooper, Cooper S)
SITUATION
The customer states that the driver footwell area becomes too hot once the vehicle warms up. Adjusting the climate control system has no effect.
CAUSE
The heater core pipes are poorly insulated.
PROCEDURE
[NEW] Follow the procedure outlined in the attachment to this Service Information bulletin.

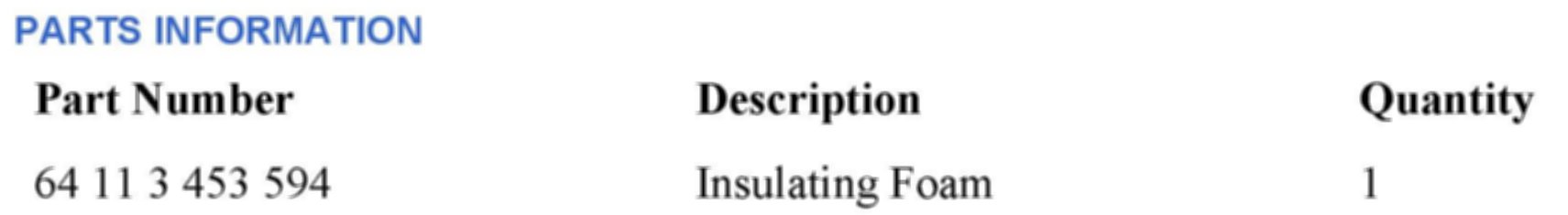

PARTS INFORMATION
WARRANTY INFORMATION
ATTACHMENTS
Attachment - M640208 Procedure.
