63 24 010 Removing and Installing/Replacing Rear Fog Light (Cooper S)

63 24 010 Removing and installing/replacing rear fog light (Cooper S)







Up to version 08/2010
Unlock retaining tabs (1) and simultaneously push rear fog light outward.
Disconnect plug connection and remove rear fog light.

- Replacement:
Renew bulb for rear fog light.

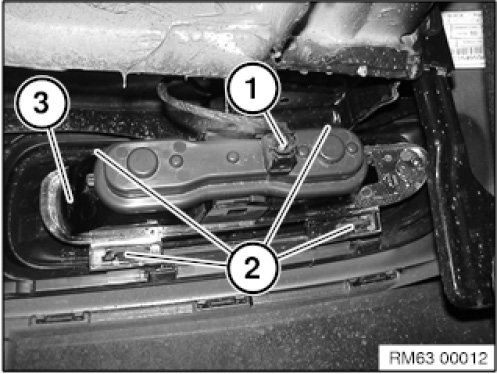

From version 08/2010
Unfasten plug connection (1) and disconnect.
Release latch mechanisms (2) and remove rear fog light (3).

- Replacement:
Renew bulb for rear fog light.
