63 14 015 Removing and Installing/Replacing Rear Left or Right Side Marker Lamp

63 14 015 Removing And Installing/Replacing Rear Left Or Right Side Marker Lamp







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Partially remove rear wheel arch cover

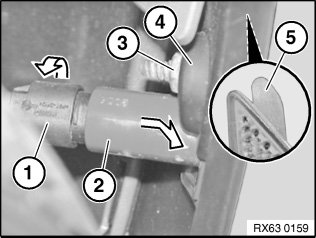

Turn bulb holder (1) in direction of arrow and pull out of side marker lamp (2).
Unscrew nut (3).
Remove side marker lamp (2) in direction of arrow from wheel arch trim (4).

Installation:
Pin (5) of side marker lamp (2) must first be inserted in wheel arch trim (4).
Make sure sealing ring is correctly seated on bulb holder (1).
Make sure bulb holder (1) is correctly engaged on side marker lamp (2).
