Home >> Mini >> 2008 >> Cooper S (R56) L4-1.6L Turbo (N14) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> F44

F44

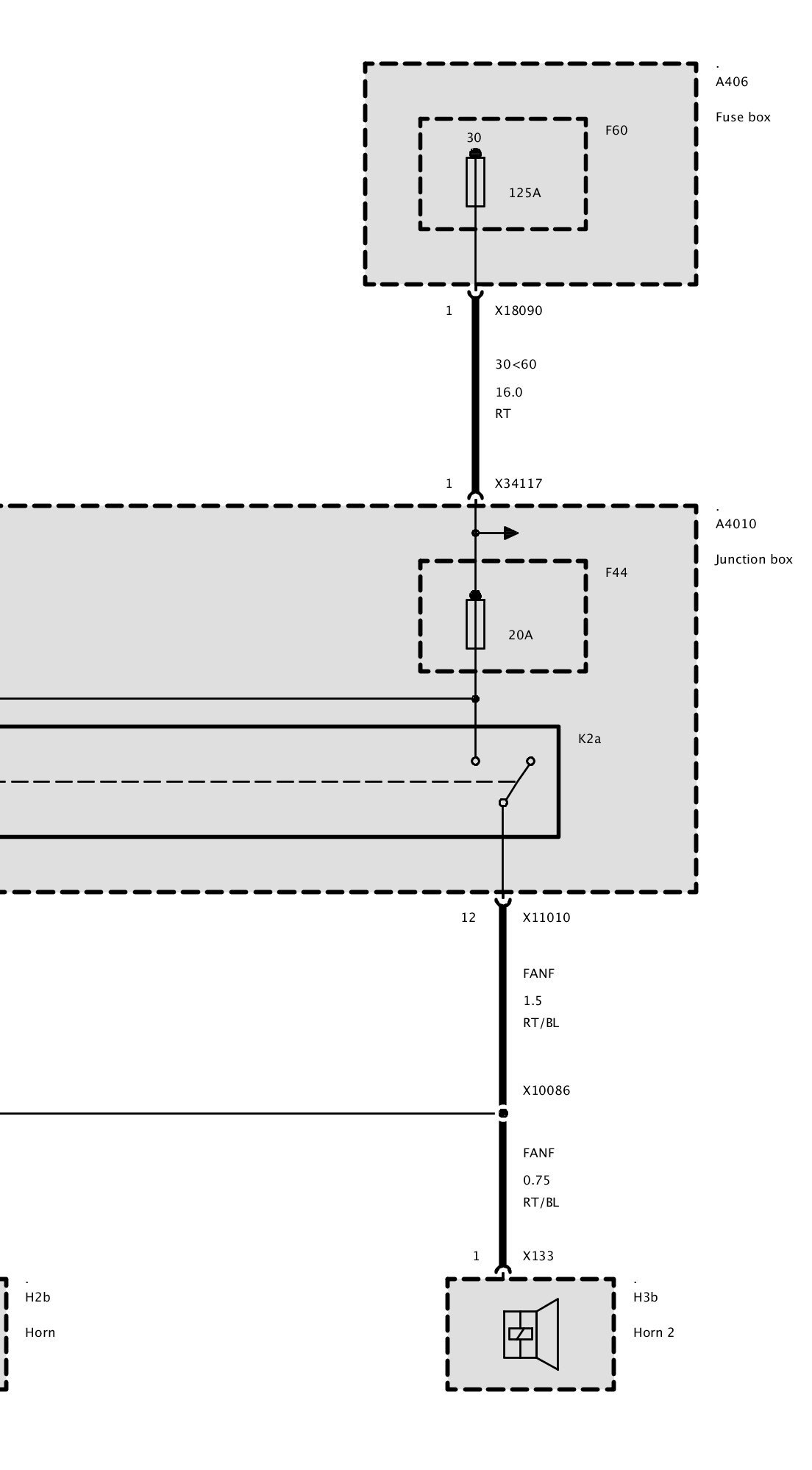

Fuse F44 (Up to 12/08)

Part 1:

Part 2:
