Wheels/Tires - New Style Tire Valves

SI M36 03 10
Wheels and Tires

December 2010
Technical Service

SUBJECT
New Style Tire Valves

MODEL
All

INFORMATION

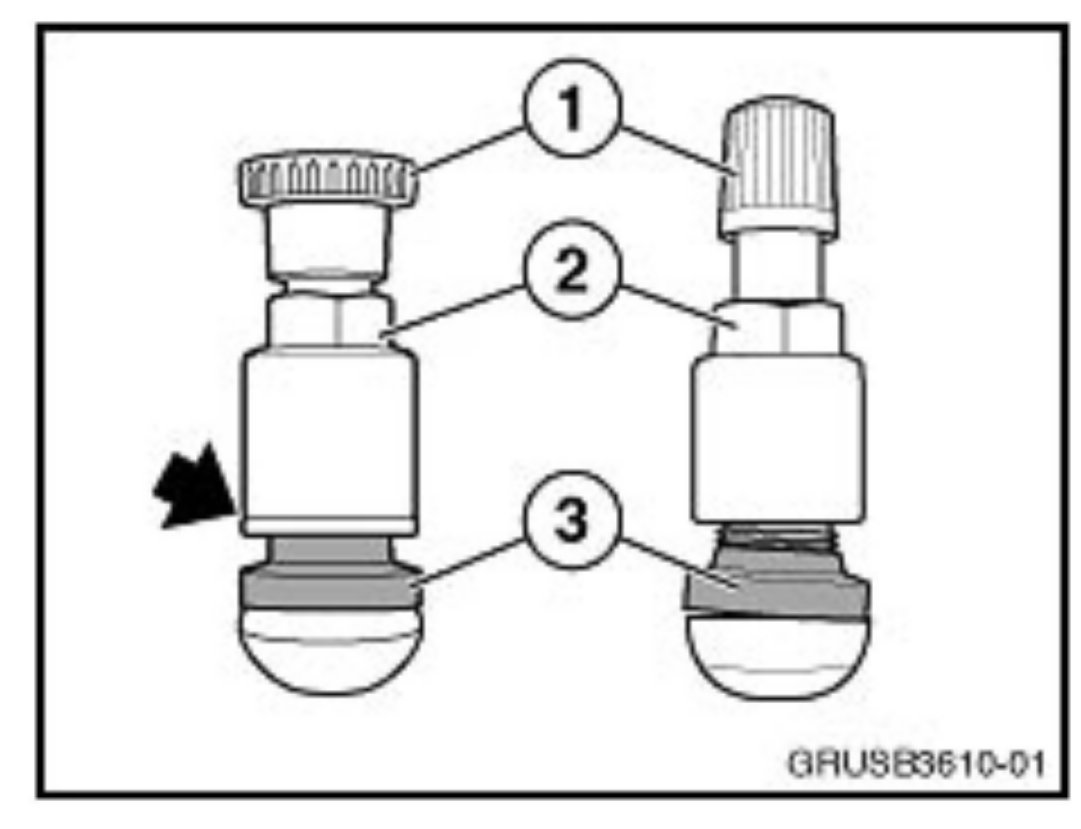

The tire valves for use with Tire Pressure Monitor Systems have been redesigned. The new style valves (Shown above in the illustration) can be identified by the smaller/conventional type cap (1) and the tapered seat at the valve's base (3).

^ The sealing washer (indicated by the arrow) is no longer required with the new style valve.

^ The valve has been modified in the area of the rubber seal (3).

^ The only component which is interchangeable between the two valves is the valve cap (1). When replacing a tire valve, the old cap can be reused, if necessary, to ensure that all the tire valves are fitted with matching caps.

^ Always refer to the Repair Manual for proper installation instructions, including tightening torques.

WARRANTY INFORMATION

For information only
