Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)

51 43 148 - Removing and installing or replacing trim on left or right door pillar (top)

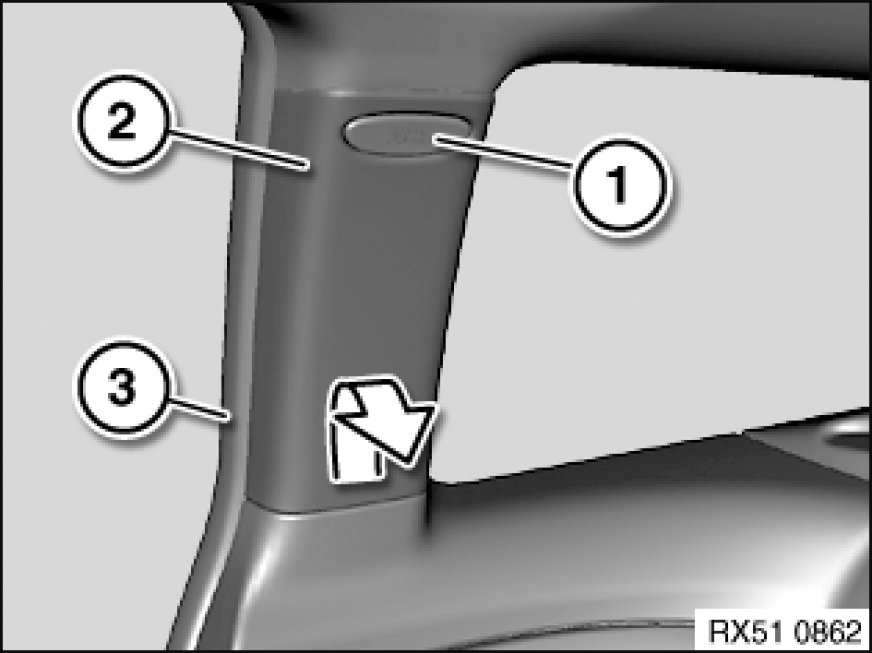

R55 right side only:
Lever out protective cap (1) and release screw underneath.
Tightening torque 51 43 2AZ [1][2]Specifications.
Feed out trim (2) in inward direction and remove.

Installation:
Make sure door seal (3) is correctly seated.

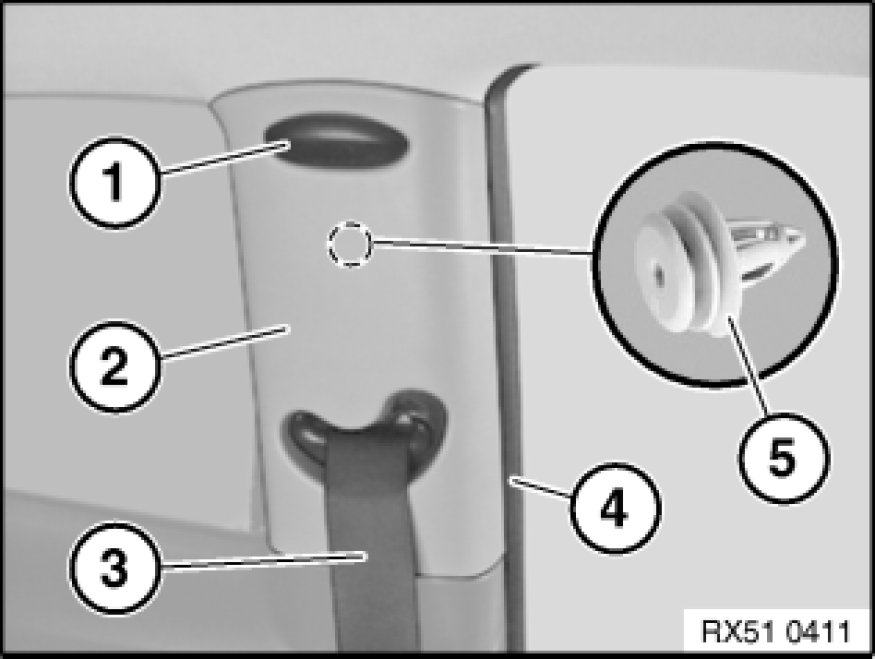

Lever out protective cap (1) and release screw underneath.
Tightening torque 51 43 2AZ [1][2]Specifications.
Detach panel (2) from clip (5) towards inside.
Only if replacing, release belt strap (3) (see last work step).

Installation:
If necessary, replace faulty clip (5).
Make sure door seal (4) is correctly seated.

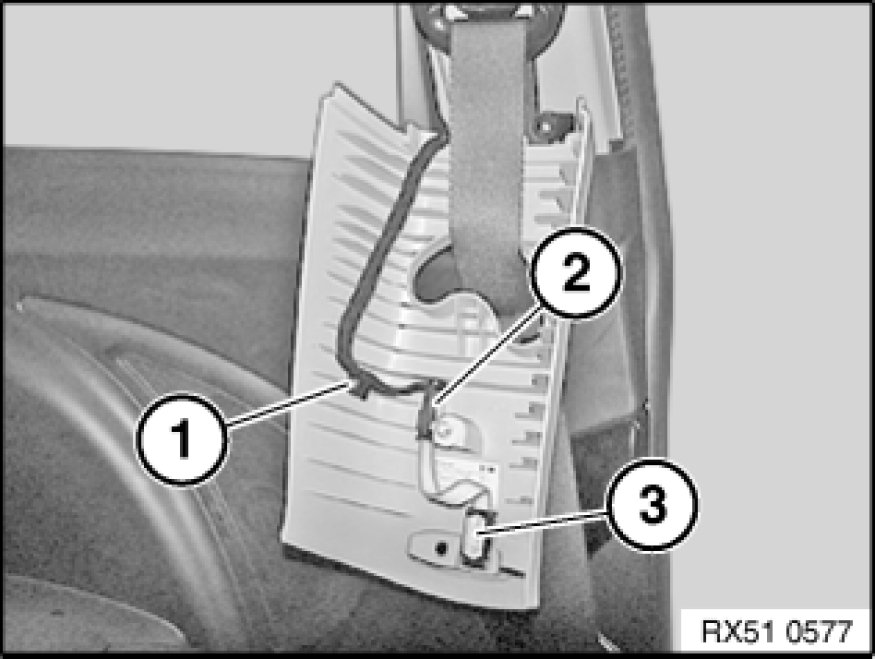

Version with light package:
Release cable holder (1) and disconnect plug connection (2).

Installation:
Make sure LED (3) is correctly seated.





Replacement:

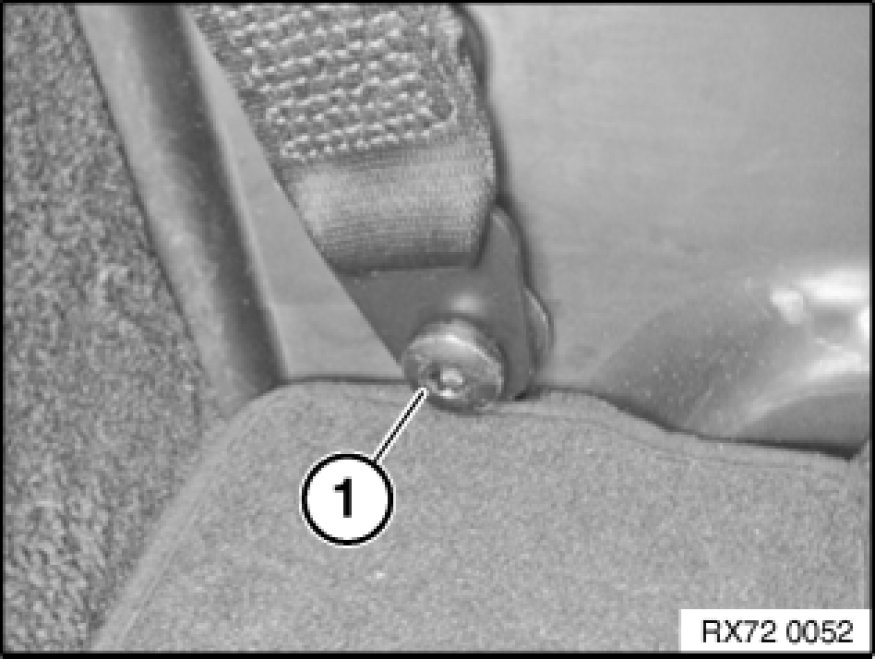

Release screw (1).
Tightening torque 72 11 4AZ [1][2]72 11 Seat Belts.
Feed out belt strap from trim for door pillar.
