51 45 380 Removing and Installing/Replacing Right Decorative Strip on Instrument Panel

51 45 380 - Removing and installing (replacing) right decorative strip on instrument panel





Special tools required:

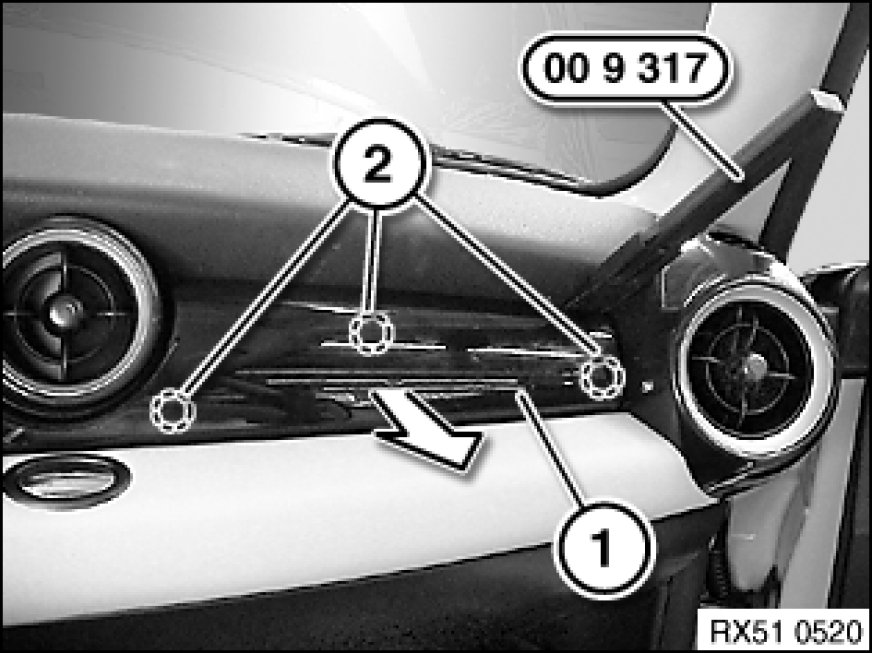

Carefully unclip decorative strip (1) with special tool 00 9 317 at retaining points (2) and remove.





Installation:

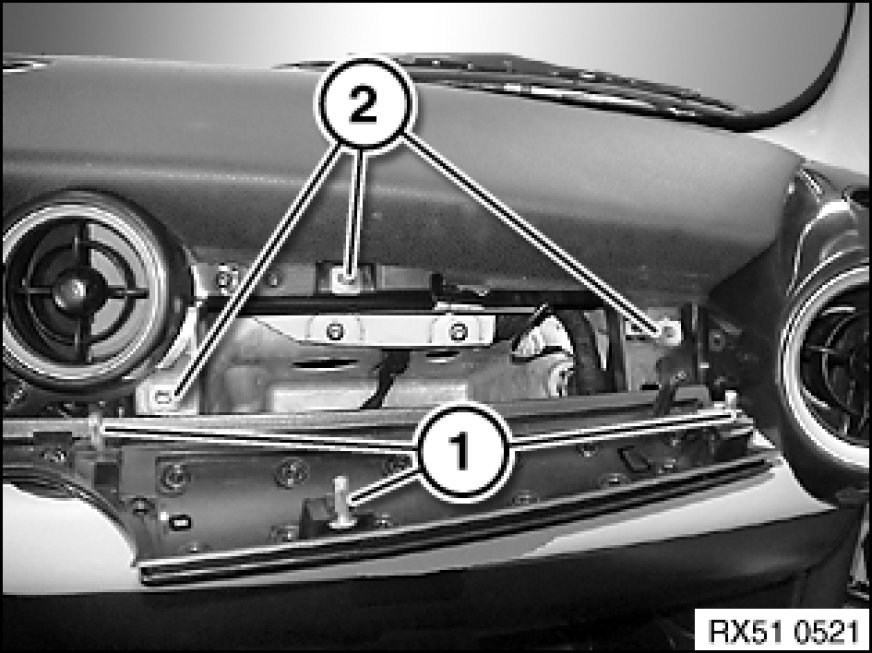

Make sure pins (1) are correctly seated on decorative strip.

If necessary, replace faulty retainers (2).

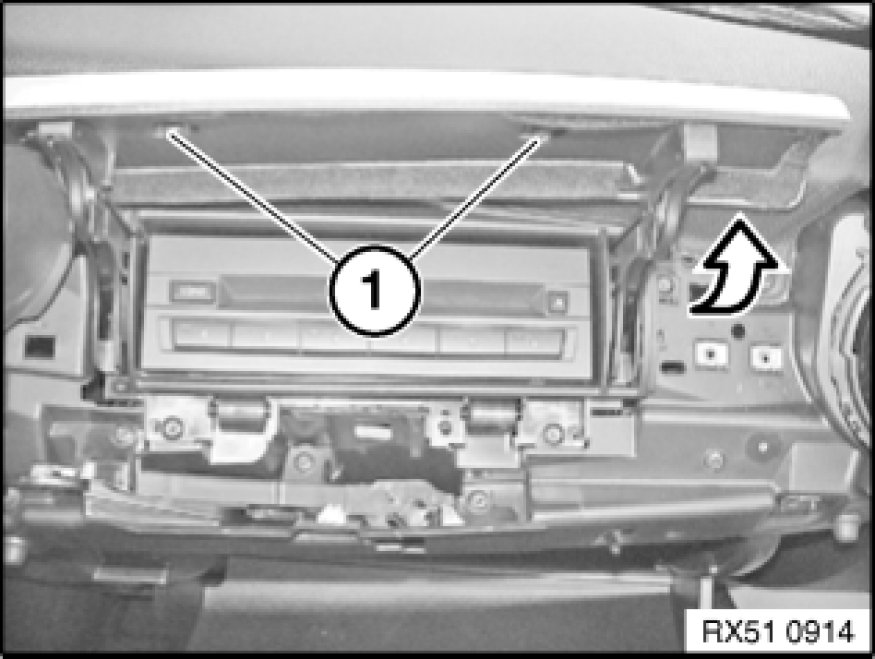

Version with CD changer:

Open CD changer trim.

Release screws (1).

Tightening torque 51 45 05AZ [1][2]51 45 Trim Panel, Dashboard.
