51 16 000 Removing and Installing or Replacing Mirror on Left or Right Front Door

51 16 000 Removing and installing or replacing mirror on left or right front door

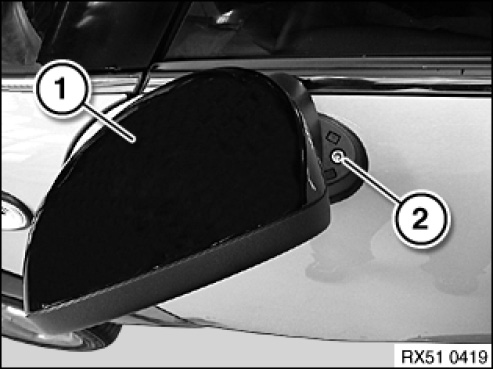

Fold rearview mirror (1) to back.
Release screw (2).

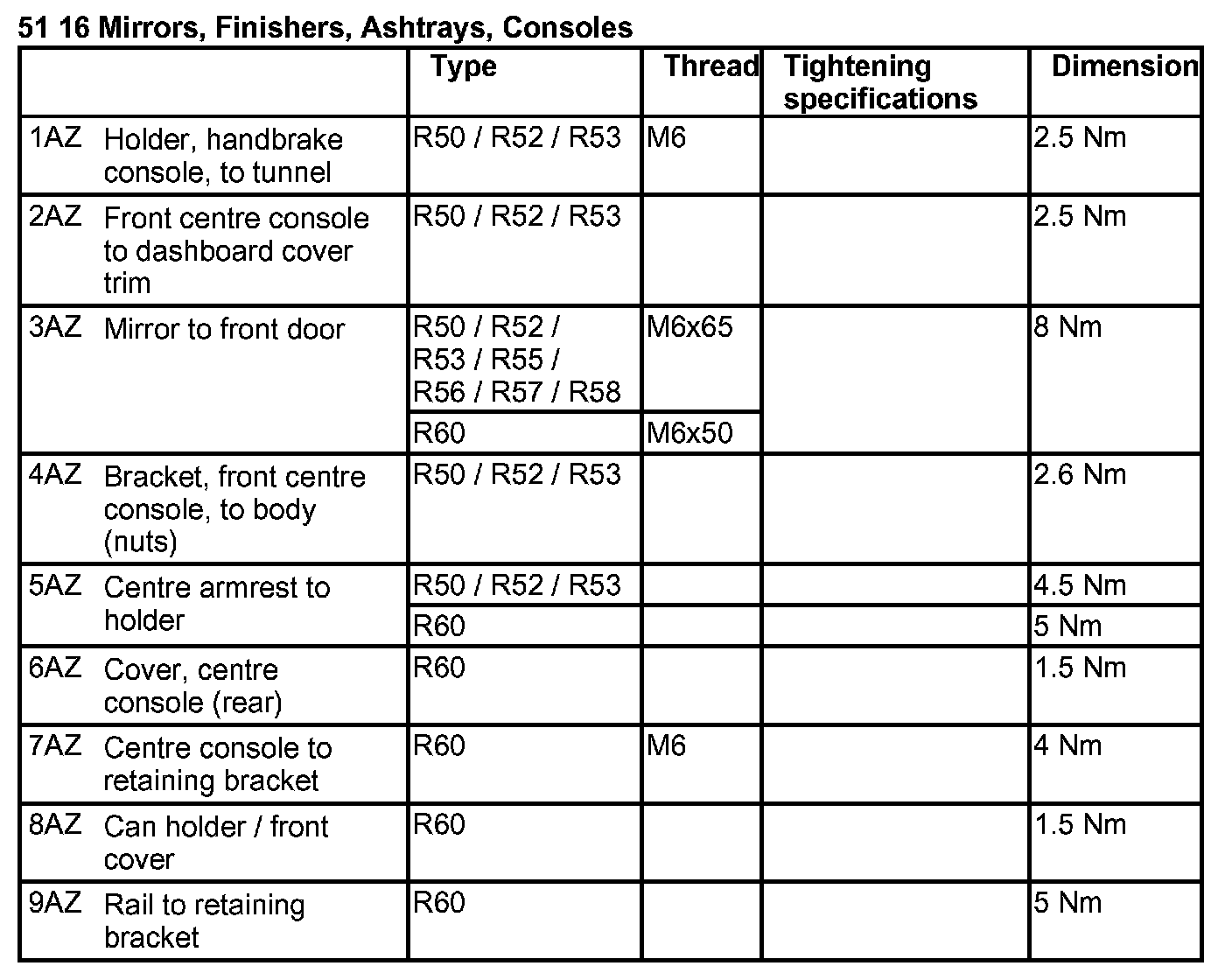

Tightening torque 51 16 3AZ.

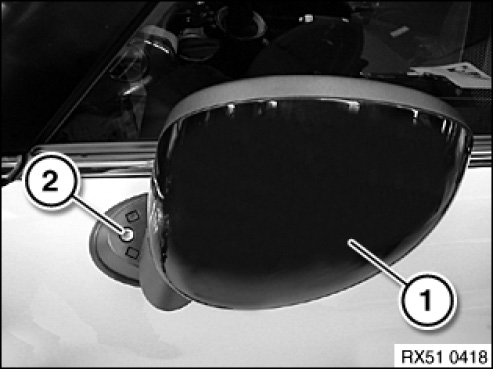

Turn rearview mirror (1) to front.
Release screw (2).
Tightening torque 51 16 3AZ.







Pull out mirror.

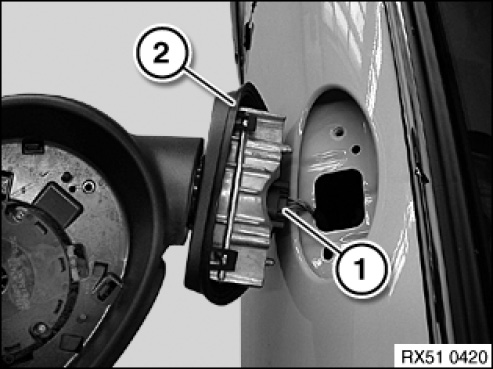

Disconnect plug connection (1) and remove mirror.

Installation note:
Seal (2) must not be damaged.







Replacement:
- Modify drive for exterior mirror
- Convert housing on exterior mirror
